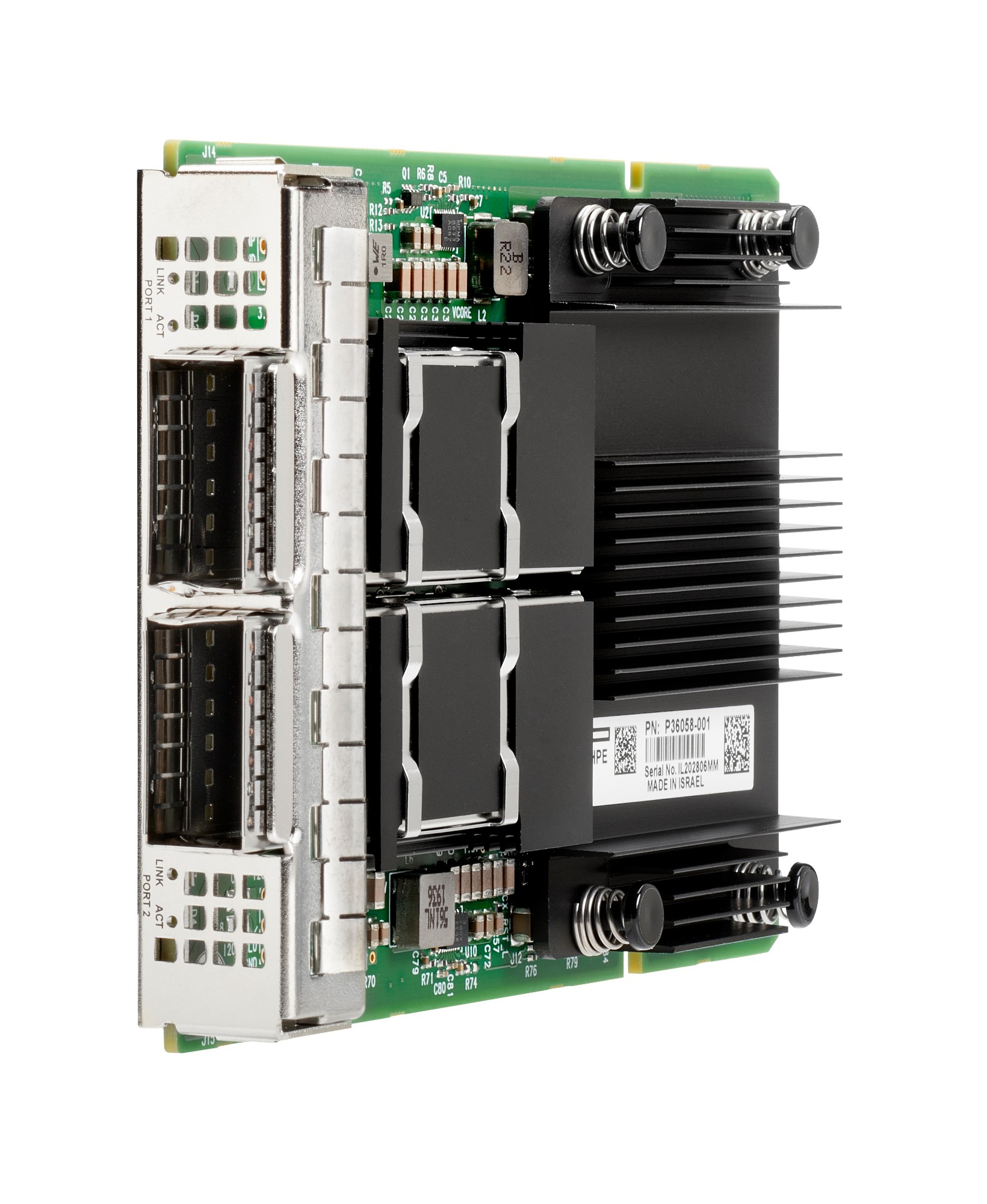

HPE P31348-B21 - IB HDR/EN 200Gb 2p QSFP56 OCP3 Adptr
InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter
Part#:
P31348-B21
Manufacturer:
HPE
Excl. VAT: £2,674.00
Available to Backorder: contact for lead time
Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.
What is new supporting point:
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
What is new supporting point:
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
More Information
Part#
P31348-B21
EAN
1900174856450
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber optic connector | QSFP56 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 20000 Mbit/s |
| Technical details | |
| Compatible products | HPE ProLiant DL Rack Mount Gen10 Plus servers |
| Product colour | Black, Green, Stainless steel |
| Warranty period | 3 year(s) |
| Network | |
| Maximum data transfer rate | 20000 Mbit/s |
| Design | |
| Compatible products | HPE ProLiant DL Rack Mount Gen10 Plus servers |
| Product colour | Black, Green, Stainless steel |
| Internal | Yes |
| Component for | Server |
| Weight & dimensions | |
| Width | 246.9 mm |
| Depth | 214.9 mm |
| Height | 62 mm |
| Weight | 440 g |
| Performance | |
| Compatible products | HPE ProLiant DL Rack Mount Gen10 Plus servers |
Manufacturer
HPE
