HPE P66782-B21 - DL385 Gen11 9224 1P 32G 8SFF Svr

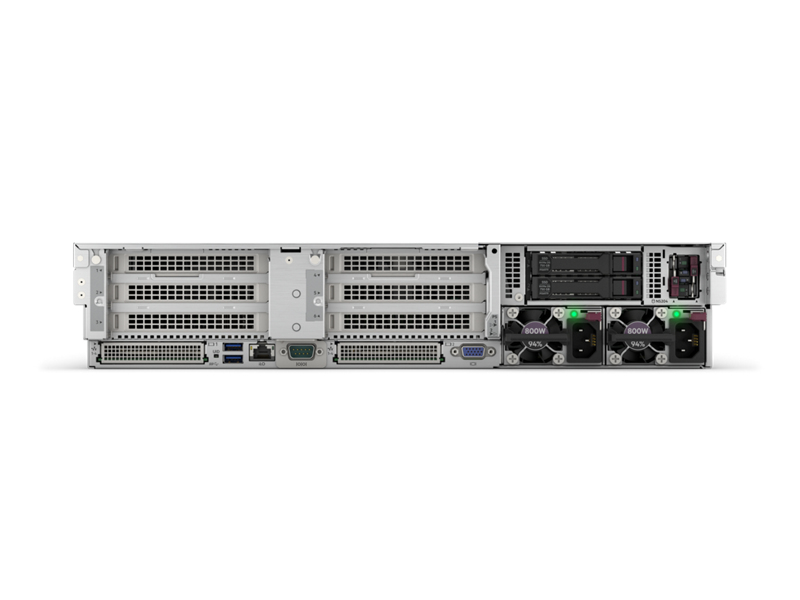

ProLiant DL385 Gen11 9224 2.5GHz 24-core 1P 32GB-R 8SFF 800W PS Server
Part#:
P66782-B21
Manufacturer:
HPE
Excl. VAT: £12,607.00
Available to Backorder: contact for lead time
Are you looking for an accelerator-optimized performance solution to run your AI or Big Data analytics workloads? The HPE ProLiant DL385 Gen11 server is a 2U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth and capacity, high-speed PCIe Gen5 I/O, enhanced GPU support, and EDSFF storage, the HPE ProLiant DL385 Gen11 server is a superb accelerator-optimized 2U 2P solution. Enhanced security features with the silicon root of trust from HPE are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. HPE ProLiant DL385 Gen11 server is an excellent choice for compute and data storage demanding workloads requiring increased core count, and storage and I/O scalability.
What is new supporting point:
Powered by the 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1152 MB L3 Cache, and 24 DIMMs for DDR5 memory up to 6400 MT/s.
12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and two OCP slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
PCIe Gen5 EDSFF support and up to 8x single-wide and 4x double-wide GPU support.
What is new supporting point:
Powered by the 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1152 MB L3 Cache, and 24 DIMMs for DDR5 memory up to 6400 MT/s.
12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and two OCP slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
PCIe Gen5 EDSFF support and up to 8x single-wide and 4x double-wide GPU support.
More Information
Part#
P66782-B21
EAN
0190017692159
Specification
| Processor | |
|---|---|
| Processor cache | 64 MB |
| Processor frequency | 2.5 GHz |
| Processor boost frequency | 3.7 GHz |
| Number of processors installed | 1 |
| Processor model | 9224 |
| Processor cores | 24 |
| Processor manufacturer | AMD |
| Motherboard chipset | AMD SoC |
| Maximum number of SMP processors | 2 |
| Processor family | AMD EPYC |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 24x DIMM |
| Memory clock speed | 4800 MHz |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Storage | |
| Supported RAID controllers | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Number of SSDs supported | 8 |
| Supported HDD sizes | 2.5" |
| SSD interface | PCI Express 4.0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 261.12 TB |
| Hot-Plug support | Yes |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| Supported SSD sizes | 2.5" |
| Graphics | |
| Maximum graphics card memory | 15 MB |
| On-board graphics card | Yes |
| Network | |
| LAN controller | Broadcom 57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | • Windows Server 2019 • Windows Server 2022 • Red Hat Enterprise Linux (RHEL) 8.6 • Red Hat Enterprise Linux (RHEL) 9.0 • SUSE Linux Enterprise Server (SLES) 15 SP4 • VMware ESXi 7.0 U3 • VMware ESXi 8.0 |
| Remote administration | iLO 6 ASIC |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Compatible operating systems | • Windows Server 2019 • Windows Server 2022 • Red Hat Enterprise Linux (RHEL) 8.6 • Red Hat Enterprise Linux (RHEL) 9.0 • SUSE Linux Enterprise Server (SLES) 15 SP4 • VMware ESXi 7.0 U3 • VMware ESXi 8.0 |
| Power | |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Management features | |
| Remote administration | iLO 6 ASIC |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Supported HDD sizes | 2.5" |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Chassis type | Rack (2U) |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 600 mm |
| Weight | 42.8 kg |
| Height | 270 mm |
| Depth | 917.7 mm |
Manufacturer
HPE
