HPE P31324-B21 - IB HDR/EN 200Gb 2p QSFP56 Adptr

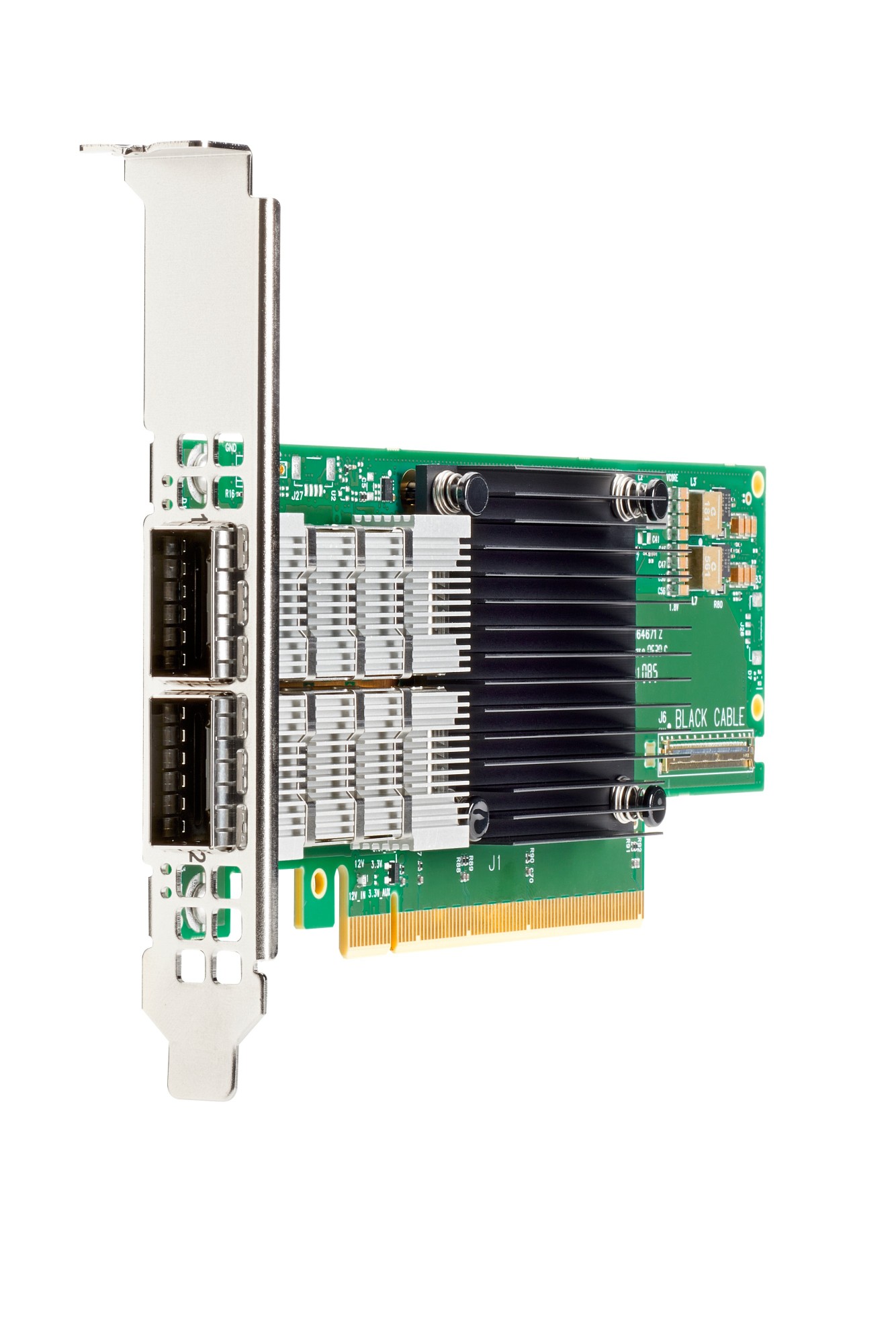

InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 MCX653106A-HDAT Adapter
Part#:
P31324-B21
Manufacturer:
HPE
Excl. VAT: £2,457.26
RRP: £2,674.00
Save: 8%
Available to Backorder: contact for lead time
Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.
What is new supporting point:
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
What is new supporting point:
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.
More Information
Part#
P31324-B21
EAN
0190017485621
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 4.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | QSFP56 |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 200000 Mbit/s |
| Technical details | |
| Compatible products | ProLiant DL Rack Mount Gen10 Plus |
| Network | |
| Networking standards | IEEE 1588v2, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 200000 Mbit/s |
| Design | |
| Compatible products | ProLiant DL Rack Mount Gen10 Plus |
| Internal | Yes |
| Component for | Server |
| Weight & dimensions | |
| Width | 246.9 mm |
| Depth | 214.9 mm |
| Height | 62 mm |
| Weight | 440 g |
| Performance | |
| Compatible products | ProLiant DL Rack Mount Gen10 Plus |
Manufacturer
HPE
