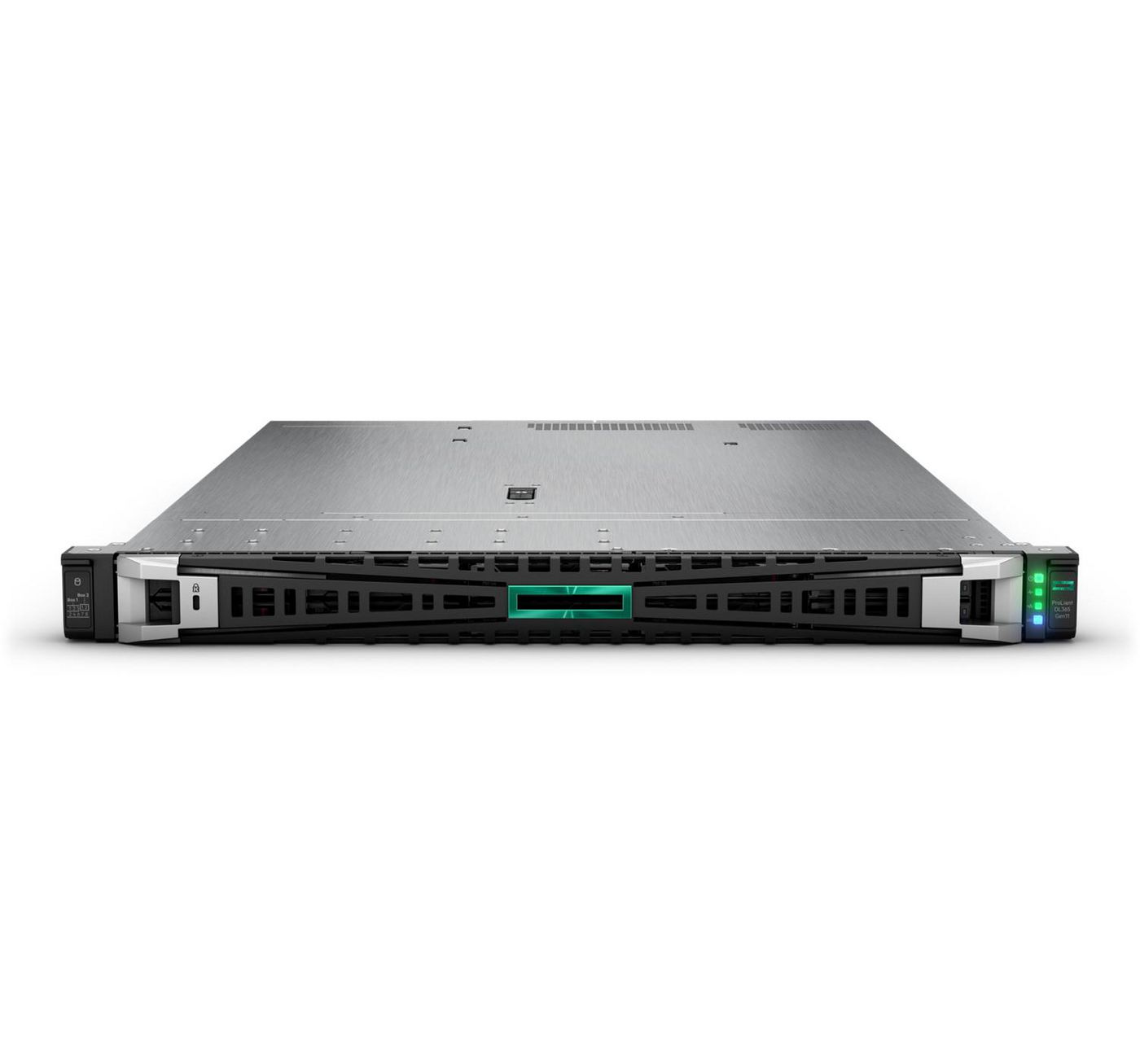

HPE P66780-B21 - DL365 Gen11 9224 1P 32G 8SFF Svr
ProLiant DL365 Gen11 9224 2.5GHz 24-core 1P 32GB-R 8SFF 800W PS Server
Part#:
P66780-B21
Manufacturer:
HPE
Excl. VAT: £11,945.00
Available to Backorder: contact for lead time
Are you looking for a scalable, compute-dense solution for high-performance workloads? The HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth and capacity, high-speed PCIe Gen5 I/O, Enterprise and Datacenter Standard Form Factor (EDSFF) and GPU support, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. Supports Direct Liquid Cooling (DLC) for enhanced power usage effectiveness and reduce cooling costs.
What is new supporting point:
Powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1152 MB of L3 cache, and 24 DIMMs for DDR5 memory up to 6400 MT/s.
12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
EDSFF drive support for higher density and performance options.
Supports Direct Liquid Cooling (DLC) for enhanced power usage effectiveness and reduce cooling costs.
What is new supporting point:
Powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1152 MB of L3 cache, and 24 DIMMs for DDR5 memory up to 6400 MT/s.
12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
EDSFF drive support for higher density and performance options.
Supports Direct Liquid Cooling (DLC) for enhanced power usage effectiveness and reduce cooling costs.
More Information
Part#
P66780-B21
EAN
0190017692135
Specification
| Processor | |
|---|---|
| Processor cache | 64 MB |
| Processor frequency | 2.5 GHz |
| Processor boost frequency | 3.7 GHz |
| Number of processors installed | 1 |
| Processor model | 9224 |
| Processor cores | 24 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 12x DIMM |
| Memory clock speed | 4800 MHz |
| Maximum internal memory | 6 TB |
| Internal memory type | DDR5-SDRAM |
| ECC | No |
| Storage | |
| Supported RAID controllers | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Hot-swap | Yes |
| Number of HDDs installed | 0 |
| SSD interface | PCI Express 4.0 |
| RAID support | Yes |
| Optical drive type | No |
| Number of SSDs installed | 0 |
| Maximum storage capacity | 153.6 TB |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| Performance | |
| Compatible operating systems | Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux (RHEL) 8.6, Red Hat Enterprise Linux (RHEL) 9.0, SUSE Linux Enterprise Server (SLES) 15 SP4, VMware ESXi 7.0 U3, VMware ESXi 8.0 |
| Remote administration | HPE iLO 6 |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux (RHEL) 8.6, Red Hat Enterprise Linux (RHEL) 9.0, SUSE Linux Enterprise Server (SLES) 15 SP4, VMware ESXi 7.0 U3, VMware ESXi 8.0 |
| Operating system installed | No |
| Power | |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Management features | |
| Remote administration | HPE iLO 6 |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Chassis type | Rack (1U) |
| Weight & dimensions | |
| Width | 916 mm |
| Weight | 29.3 kg |
| Height | 242 mm |
| Depth | 600 mm |
Manufacturer
HPE
