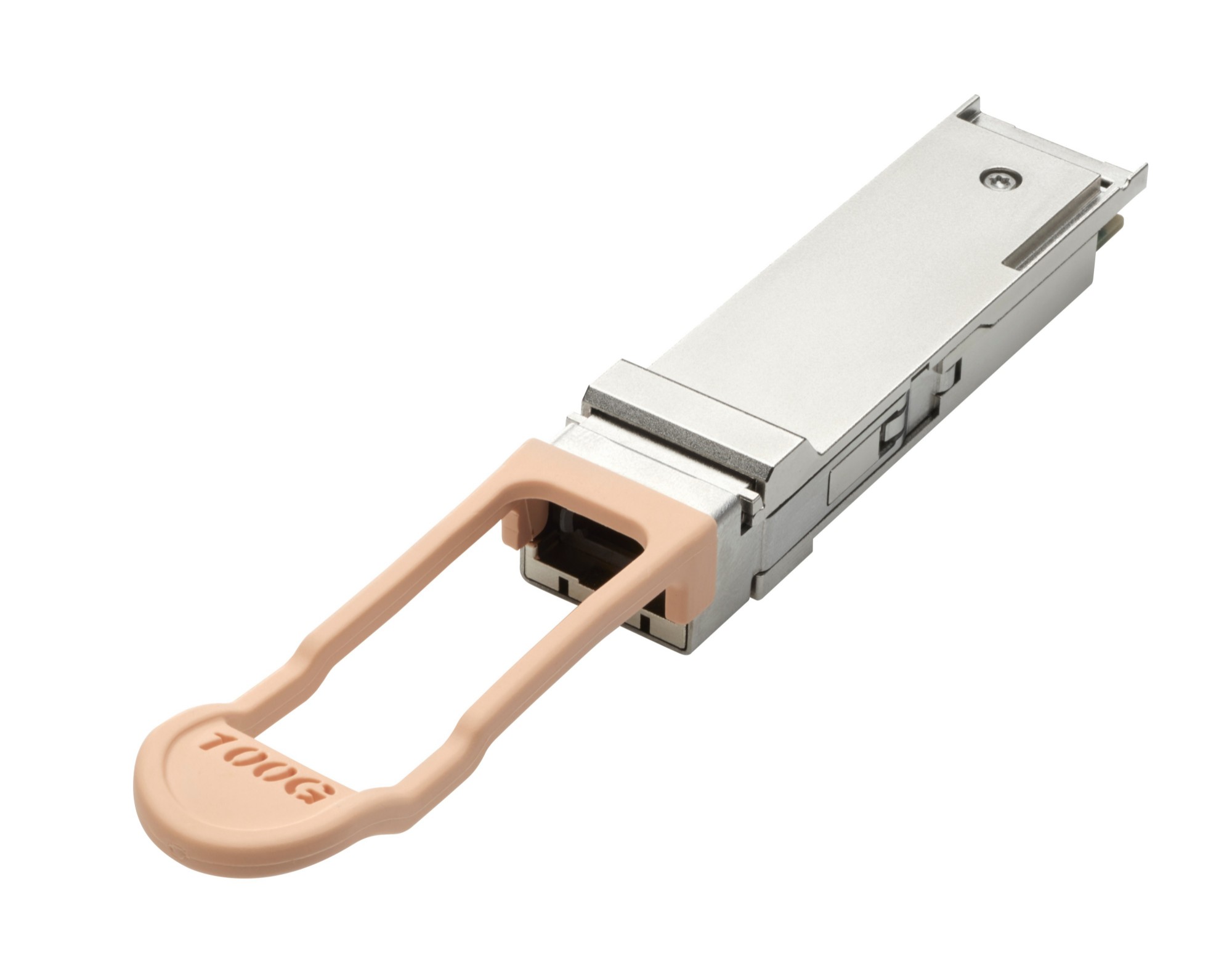

HPE 845966-B21 - 100Gb QSFP28 MPO SR4 100m XCVR
100Gb QSFP28 MPO SR4 100m Transceiver
Part#:
845966-B21
Manufacturer:
HPE
Excl. VAT: £749.44
RRP: £3,306.00
Save: 77%
Available to Backorder: contact for lead time
.
More Information
Part#
845966-B21
EAN
0190017017907
Specification
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR4 |
| Harmonized System (HS) code | 85369010 |
| Power | |
| Power consumption (typical) | 3.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Weight & dimensions | |
| Width | 72.7 mm |
| Depth | 8.5 mm |
| Height | 18.4 mm |
| Weight | 36.3 g |
| Technical details | |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
Manufacturer
HPE
