HPE P40717-B21 - DL380 Gen10 4215R 1P 32G NC 8SFF Svr

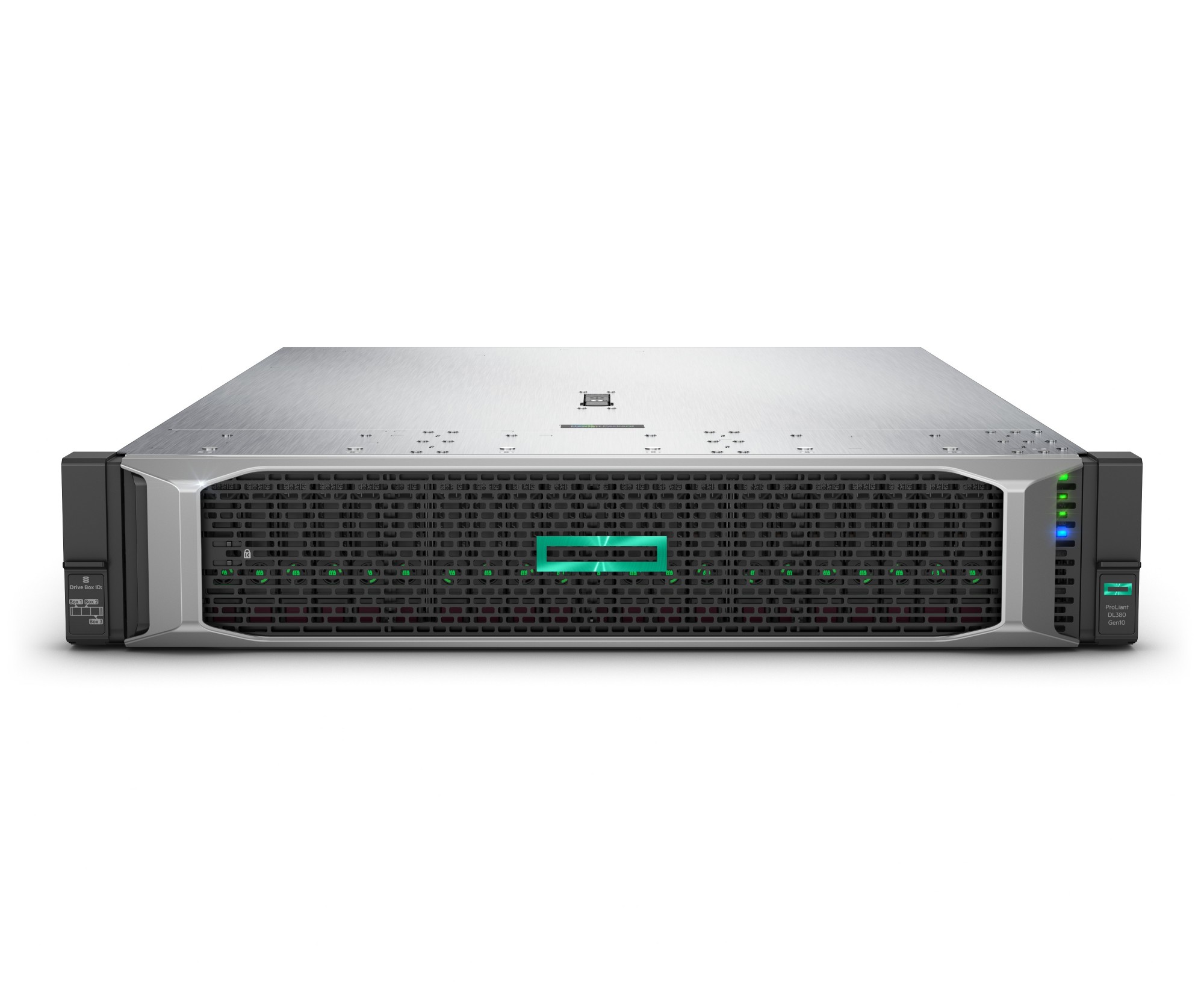

HPE ProLiant DL380 Gen10 4215R 3.2GHz 8-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server
Part#:
P40717-B21
Manufacturer:
HPE
Excl. VAT: £7,647.00
Available to Backorder: contact for lead time
HPE ProLiant DL380 Gen10 4215R 3.2GHz 8-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server
More Information
Part#
P40717-B21
EAN
4549821418428
Specification
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| Processor cache | 11 MB |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4 GHz |
| Number of processors installed | 1 |
| Processor model | 4215R |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C621 |
| Maximum number of SMP processors | 2 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 24x DIMM |
| Memory clock speed | 2933 MHz |
| Maximum internal memory | 1.54 TB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Number of SSDs supported | 8 |
| Supported HDD sizes | 2.5" |
| SSD interface | SATA, Serial Attached SCSI (SAS) |
| RAID support | Yes |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| Maximum storage capacity | 72 TB |
| Hot-Plug support | Yes |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Supported SSD sizes | 2.5" |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
| LAN controller | Broadcom 57414 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES) 12 SP4 & 15 SP1 (incl. Xen) |
| Remote administration | iLO 5 ASIC |
| Operating system installed | No |
| Harmonized System (HS) code | 84714100 |
| Software | |
| Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES) 12 SP4 & 15 SP1 (incl. Xen) |
| Operating system installed | No |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Supported HDD sizes | 2.5" |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Chassis type | Rack (2U) |
| Sustainability certificates | ENERGY STAR |
| Management features | |
| Remote administration | iLO 5 ASIC |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 445.5 mm |
| Height | 87.4 mm |
| Depth | 730.3 mm |
Manufacturer
HPE
