ATGBICS X520-DA1-C network card Internal Ethernet 10000 Mbit/s
Intel X520-DA1, PCIe 2.0 x8, Single Port,10Gbps, 1x SFP+, 130x69mm
Part#:
X520-DA1-C
Manufacturer:
ATGBICS
Excl. VAT: £36.00
In stock

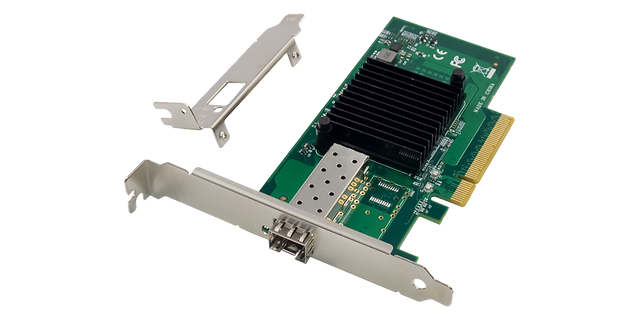

Intel® X520-DA1 alternative NIC PCIe 2.0 x8 Single Port 10GbE SFP+
The PCI Express x8 X520DA1 Network adapter adopts Intel third-generation WMB network controller Intel JL82599EN. By providing unparalleled features of virtualization, flexible features of LAN and SAN network, and proven reliable performance, it solves the high requirements of the generation data centre.
Industry-leading product innovations for I/O virtualization that are ideal for the dynamic data centre
Unified networking support simplifies the network infrastructure by allowing LAN, SAN, and IPC traffic to share the same data centre fabric
Energy-efficient design with integrated SFI/KR PHYs that creates new opportunities for Blades and LAN-on-motherboard (LOM) solutions
High-volume stable architecture with broad operating system support
The PCI Express x8 X520DA1 Network adapter adopts Intel third-generation WMB network controller Intel JL82599EN. By providing unparalleled features of virtualization, flexible features of LAN and SAN network, and proven reliable performance, it solves the high requirements of the generation data centre.
Industry-leading product innovations for I/O virtualization that are ideal for the dynamic data centre
Unified networking support simplifies the network infrastructure by allowing LAN, SAN, and IPC traffic to share the same data centre fabric
Energy-efficient design with integrated SFI/KR PHYs that creates new opportunities for Blades and LAN-on-motherboard (LOM) solutions
High-volume stable architecture with broad operating system support
More Information
Part#
X520-DA1-C
Specification
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | Intel® 82599 |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82599 |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Green |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Design | |
| Product colour | Green |
| Chipset | Intel® 82599 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Country of origin | China |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 69 mm |
| Performance | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other features | |
| Chipset | Intel® 82599 |
| Country of origin | China |
Manufacturer
ATGBICS
