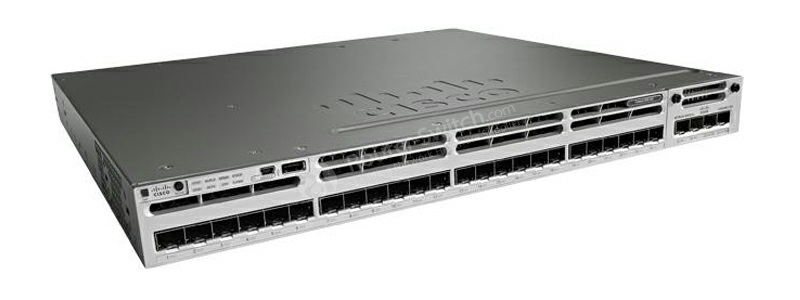

Cisco Catalyst 3850 24 Port GE SFP IP Base REMANUFACTURED
WS-C3850-24S-S-RF, 24 Port, 68.4 Mpps, 350WAC, AC 120/230 V ( 50/60 Hz ), Refurbished
Part#:
WS-C3850-24S-S-RF
Manufacturer:
Cisco
Excl. VAT: £10,140.22
RRP: £17,013.04
Save: 40%
Available to Backorder: contact for lead time
The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
More Information
Part#
WS-C3850-24S-S-RF
EAN
0882658891755
Specification
Management features | |
---|---|
Multicast support | Yes |
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Switch layer | L3 |
Network | |
IGMP snooping | Yes |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Routing entries | 24000 |
Rate limiting | Yes |
Number of VLANs | 4000 |
Link aggregation | Yes |
IP routing | Yes |
10G support | No |
Virtual LAN features | |
VLAN support | Yes |
Number of VLANs | 4000 |
Data transmission | |
Number of VLANs | 4000 |
Jumbo frames | 9198 |
MAC address table | 32000 entries |
Switching capacity | 92 Gbit/s |
Jumbo frames support | Yes |
Optical fiber | |
Fiber optic connector | SFP |
Performance | |
Stackable | Yes |
Memory type | DRAM |
Internal memory | 4096 MB |
Flash memory | 2048 MB |
Power | |
Power connector | AC-in jack |
Power supply included | Yes |
AC input voltage | 120 - 230 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 350 W |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 1 |
Technical details | |
Form factor | 1U |
Product colour | Black, Grey |
Stackable | Yes |
Rack mounting | Yes |
Ports & interfaces | |
SFP module slots quantity | 24 |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Fiber optic connector | SFP |
Power connector | AC-in jack |
Security | |
Security algorithms | 802.1x RADIUS |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | UL 60950-1, CAN/CSA-C22.2, EN 60950-1, IEC 60950-1, GOST, NOM |
Switching protocols | SNMP v1, SNMP v2c, SNMP v3 |
Certificates | |
Electromagnetic compatibility | 47CFR, AS/NZS CISPR22 2, CISPR22, EN55022, ICES003, EN61000-3-2, KCC, EN55024, KN24 |
Certification | FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST |
Memory | |
Memory type | DRAM |
Internal memory | 4096 MB |
Flash memory | 2048 MB |
Design | |
Form factor | 1U |
Product colour | Black, Grey |
Stackable | Yes |
LED indicators | Yes |
Electromagnetic compatibility | 47CFR, AS/NZS CISPR22 2, CISPR22, EN55022, ICES003, EN61000-3-2, KCC, EN55024, KN24 |
Certification | FCC, CE, CFR 47, EN 55022, EN 55024, AS/NZS, CISPR22:2004, EN55022, VCCI, KCC, ANATEL, CCC, GOST |
Rack mounting | Yes |
Indication | |
LED indicators | Yes |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -5 - 45 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 445 mm |
Depth | 450 mm |
Height | 45 mm |
Weight | 7.03 kg |
Packaging data | |
User guide | Yes |
Manual | Yes |
Cables included | AC |
Packaging content | |
User guide | Yes |
Manual | Yes |
Cables included | AC |
Manufacturer
Cisco
