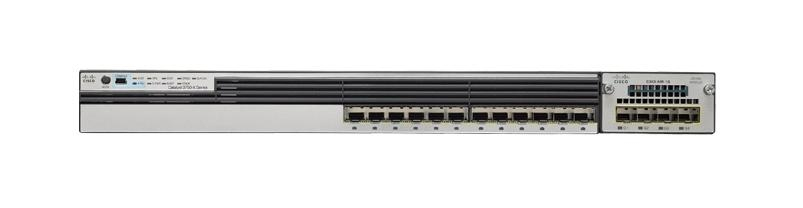

Cisco Catalyst 3850 12 Port GE SFP IP Base REMANUFACTURED
Stackable 12 SFP Ethernet ports, with 350WAC power supply, 1 RU, IP Base feature set
Part#:
WS-C3850-12S-S-RF
Manufacturer:
Cisco
Excl. VAT: £1,925.33
RRP: £8,503.65
Save: 77%
Available to Backorder: contact for lead time
The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
More Information
Part#
WS-C3850-12S-S-RF
EAN
0265885707202
Specification
Management features | |
---|---|
Switch type | Managed |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Multicast support | Yes |
Switch layer | L3 |
Ports & interfaces | |
SFP module slots quantity | 12 |
Basic switching RJ-45 Ethernet ports type | No |
Power connector | DC-in jack |
Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
Network | |
Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Spanning tree protocol | Yes |
10G support | No |
IGMP snooping | Yes |
Data transmission | |
Throughput | 50.5 Mpps |
MAC address table | 32000 entries |
Switching capacity | 68 Gbit/s |
Jumbo frames support | Yes |
Security | |
Security algorithms | 802.1x RADIUS, SNMP, SSH |
IGMP snooping | Yes |
Multicast features | |
Multicast support | Yes |
Design | |
Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
LED indicators | Yes |
Rack mounting | Yes |
Certification | 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24 |
Performance | |
Mean time between failures (MTBF) | 315840 h |
Stackable | Yes |
Power | |
Power consumption (max) | 350 W |
AC input voltage | 115 - 230 V |
AC input frequency | 50 - 60 Hz |
Number of power supply units | 1 |
Input current | 2 - 4 A |
Power connector | DC-in jack |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 90% |
Operating temperature (T-T) | -5 - 45 °C |
Operating relative humidity (H-H) | 5 - 90% |
Operating altitude | 0 - 3000 m |
Heat dissipation | 1207 BTU/h |
Weight & dimensions | |
Width | 444.5 mm |
Depth | 449.5 mm |
Height | 44.5 mm |
Weight | 7.02 kg |
Sustainability | |
Sustainability certificates | ENERGY STAR |
Technical details | |
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Mean time between failures (MTBF) | 315840 h |
Rack mounting | Yes |
Sustainability certificates | ENERGY STAR |
Certificates | |
Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
Certification | 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24 |
Indication | |
LED indicators | Yes |
Manufacturer
Cisco
