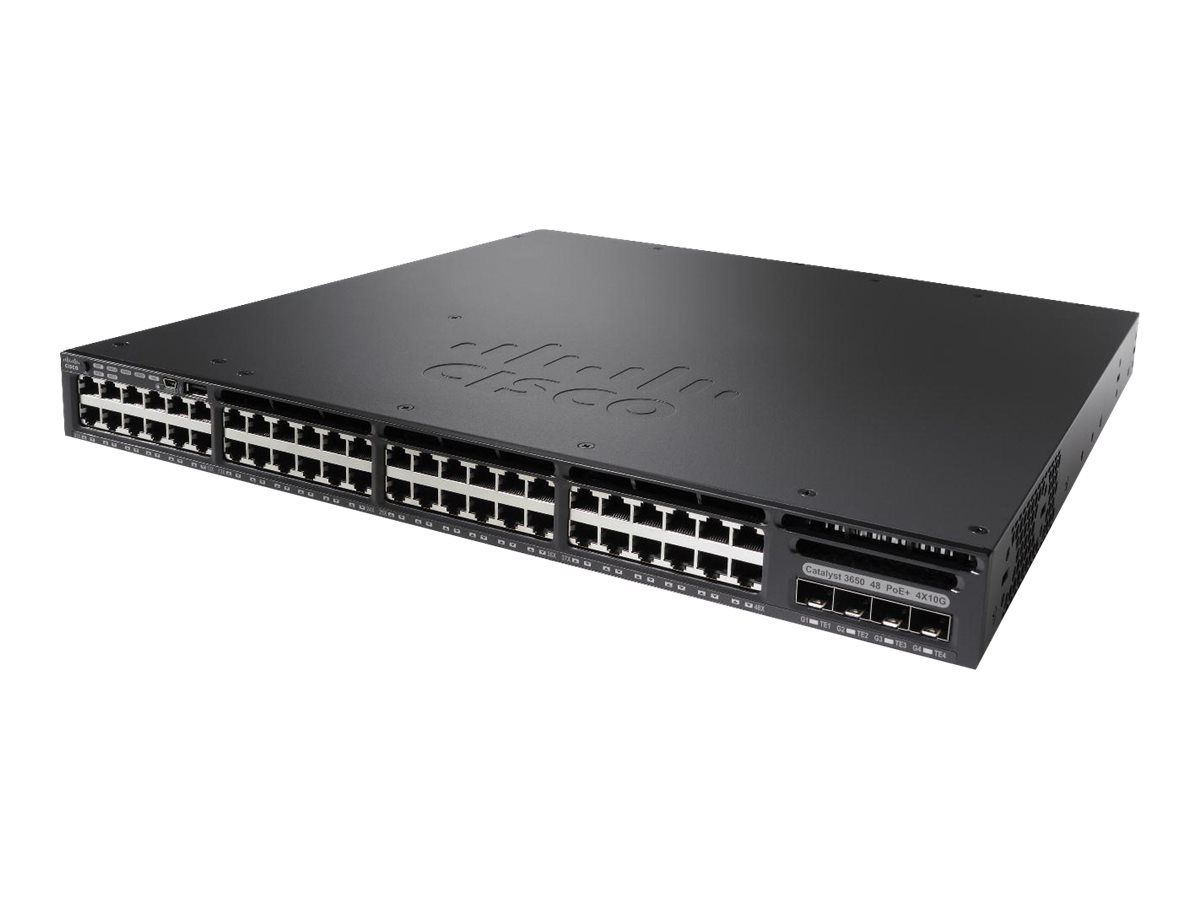

Catalyst3650 48Pt Data4x10G Uplink IPServices REMANUFACTURED
WS-C3650-48TQ-E-RF, IPv4 24000, 48 x 10/100/1000 + 4 x 10 Gigabit SFP+, AC 120/230 V ( 50/60 Hz ), Refurbished
Part#:
WS-C3650-48TQ-E-RF
Manufacturer:
Cisco
Excl. VAT: £1,005.40
RRP: £15,662.71
Save: 94%
Available to Backorder: contact for lead time
Catalyst3650 48Pt Data4x10G Uplink IPServices REMANUFACTURED
More Information
Part#
WS-C3650-48TQ-E-RF
EAN
0882658938849
Specification
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 9198 |
| MAC address table | 32000 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Stackable | Yes |
| Noise level | 48 dB |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 527580 h |
| Internal memory | 4000 MB |
| Flash memory | 2000 MB |
| Power | |
| Power connector | AC-in jack |
| Power supply included | Yes |
| AC input voltage | 120 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 250 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Noise level | 48 dB |
| Mean time between failures (MTBF) | 527580 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
| Switching protocols | BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Certificates | |
| Certification | 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A), AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, KCC, CNS13438 Class A, EN55024, CISPR24, KN24 |
| Memory | |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Flash memory | 2000 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Certification | 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A), AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, KCC, CNS13438 Class A, EN55024, CISPR24, KN24 |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 96% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 5000 m |
| Weight & dimensions | |
| Width | 431.8 mm |
| Depth | 431.8 mm |
| Height | 25.4 mm |
| Weight | 7.21 kg |
| Packaging data | |
| User guide | Yes |
| Manual | Yes |
| Packaging content | |
| User guide | Yes |
| Manual | Yes |
Manufacturer
Cisco
