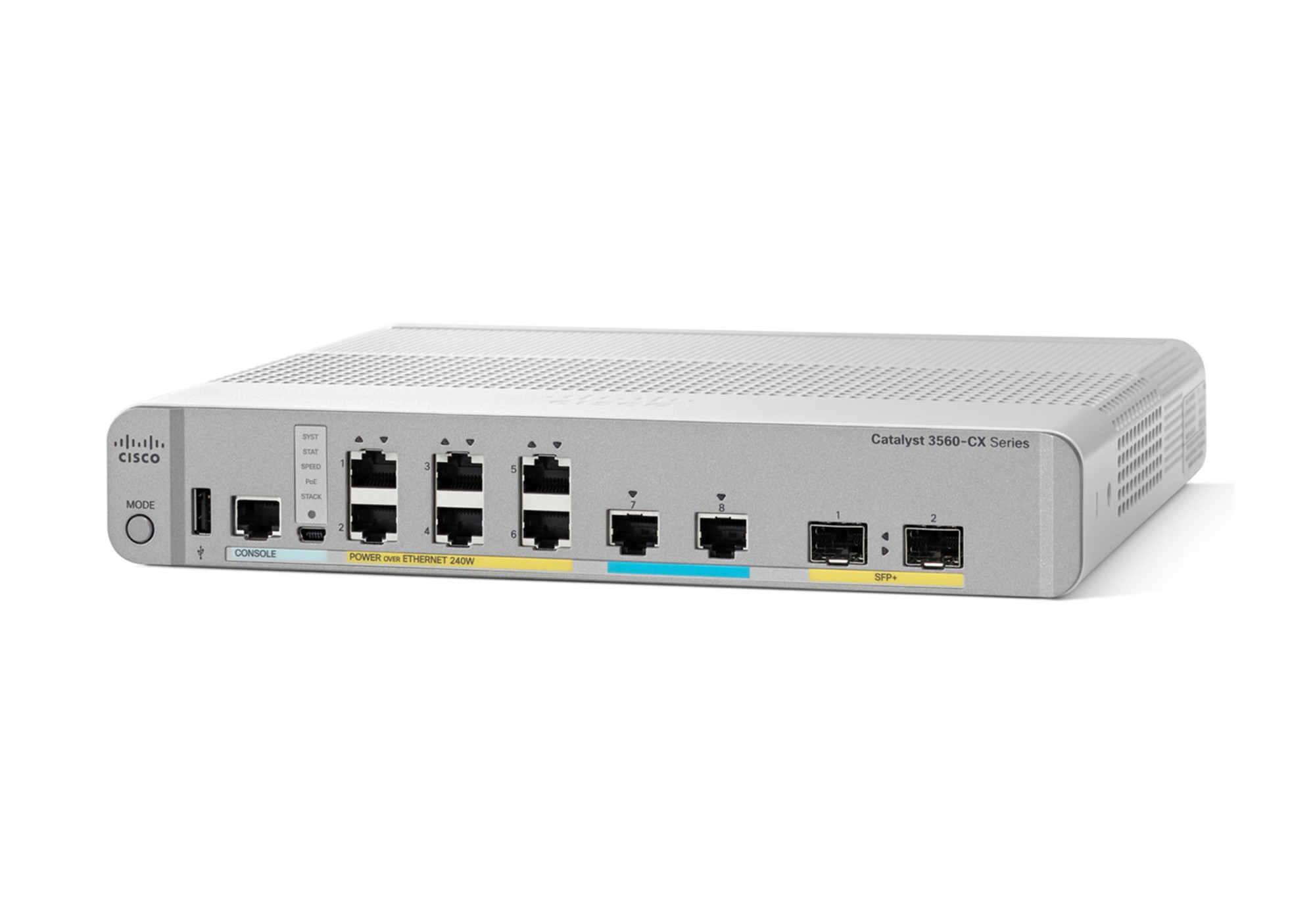

Cisco Catalyst 3560-CX 2 x mGig, 6 x 1G PoE, IP Base
Catalyst 3560CX-8XPD-S Network Switch, 6 Gigabit Ethernet and 2 Multi-GbE Ports, 8 PoE+ Outputs, 240W PoE Budget, two 10 G SFP+ Uplinks, Enhanced Limited Lifetime Warranty (WS-C3560CX-8XPD-S)
Part#:
WS-C3560CX-8XPD-S
Manufacturer:
Cisco
Excl. VAT: £1,692.62
RRP: £2,855.08
Save: 41%
Available to Backorder: contact for lead time
The Cisco Catalyst C3560CX-8XPD-S Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the server room and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.
More Information
Part#
WS-C3560CX-8XPD-S
EAN
0882658770616
Specification
Virtual LAN features | |
---|---|
VLAN support | Yes |
Number of VLANs | 4000 |
Data transmission | |
Number of VLANs | 4000 |
Jumbo frames | 9198 |
Switching capacity | 92 Gbit/s |
Jumbo frames support | Yes |
Forwarding rate | 68.4 Mpps |
Performance | |
Stackable | No |
Mean time between failures (MTBF) | 528480 h |
Internal memory | 512 MB |
Flash memory | 128 MB |
Harmonized System (HS) code | 85176990 |
Power | |
Power connector | DC-in jack |
Power plug type | Type C |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 35.2 W |
Input current | 1.5 - 3.25 A |
Technical details | |
Product colour | Grey |
Stackable | No |
Mean time between failures (MTBF) | 528480 h |
Rack mounting | No |
Products per shipping (inner) case | 1 pc(s) |
Management features | |
Switch type | Managed |
Switch layer | L2 |
Ports & interfaces | |
SFP+ module slots quantity | 2 |
Basic switching RJ-45 Ethernet ports quantity | 6 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Console port | RJ-45 |
Power connector | DC-in jack |
Network | |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
Full duplex | Yes |
VLAN support | Yes |
Number of VLANs | 4000 |
10G support | Yes |
Memory | |
Internal memory | 512 MB |
Flash memory | 128 MB |
Design | |
Country of origin | China |
Product colour | Grey |
Stackable | No |
LED indicators | Yes |
Rack mounting | No |
Market segment | Business |
Indication | |
LED indicators | Yes |
Packaging content | |
Packaging content | WS-C3560CX-8XPD-S Switch, Accessory Kit, 1 printed document |
Power over Ethernet (PoE) | |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Total Power over Ethernet (PoE) budget | 240 W |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -25 - 70 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -5 - 45 °C |
Operating relative humidity (H-H) | 5 - 95% |
Operating altitude | 0 - 3048 m |
Non-operating altitude | 0 - 4000 m |
Heat dissipation | 1057.7 BTU/h |
Weight & dimensions | |
Width | 269 mm |
Depth | 264 mm |
Height | 44.4 mm |
Weight | 2.72 kg |
Packaging data | |
Package width | 327.7 mm |
Package depth | 349.2 mm |
Package height | 160.3 mm |
Package weight | 2.72 kg |
Logistics data | |
Products per master (outer) case | 1 pc(s) |
Harmonized System (HS) code | 85176990 |
Quantity per pack | 1 pc(s) |
Other features | |
Packaging content | WS-C3560CX-8XPD-S Switch, Accessory Kit, 1 printed document |
Country of origin | China |
Manufacturer
Cisco
