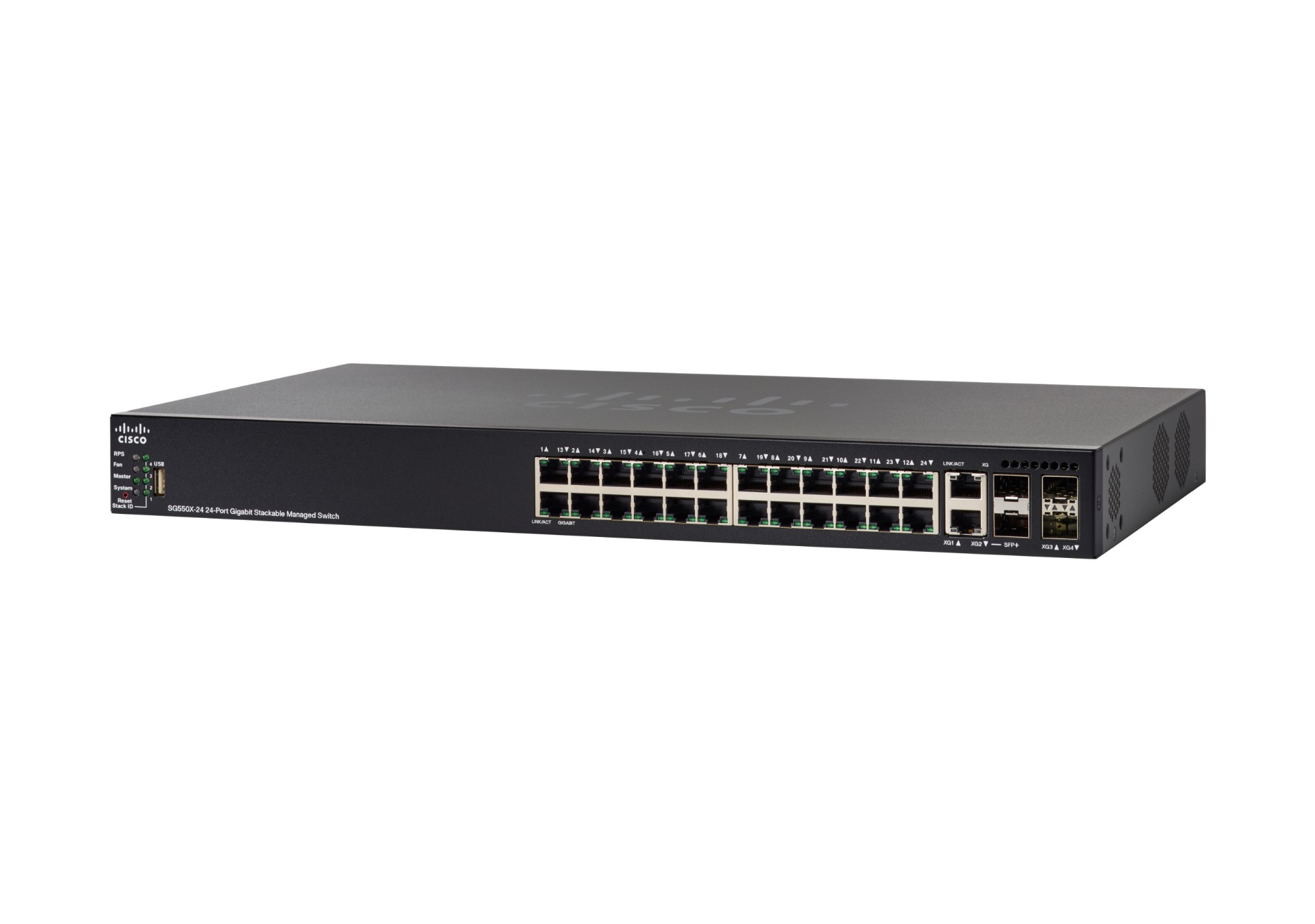

CiscoSG550X-24P24-prt GigabitPoEStackableSw REMANUFACTURED
SG550X-24P Stackable Managed Switch | 24 Gigabit Ethernet (GbE) Ports | 195W PoE | 2 x 10G Combo | 2 x SFP+ | L3 Dynamic Routing
Part#:
SG550X-24P-K9EU-RF
Manufacturer:
Cisco
Excl. VAT: £2,227.08
Available to Backorder: contact for lead time
CiscoSG550X-24P24-prt GigabitPoEStackableSw REMANUFACTURED
More Information
Part#
SG550X-24P-K9EU-RF
Specification
| Management features | |
|---|---|
| ARP inspection | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat5e |
| Cable length detection | Yes |
| Active link detection | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of IP interfaces | 256 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Throughput | 95.23 Gbit/s |
| Number of VLANs | 4094 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, Port-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 4 fan(s) |
| Country of origin | China |
| Performance | |
| Physical stacking (units) | 8 |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 299949 h |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Power | |
| Power plug type | Type C |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 918.55 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 350 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 4.72 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC, Serial |
| Packaging data | |
| Package width | 476 mm |
| Package depth | 545.1 mm |
| Package height | 108 mm |
| Package weight | 6.19 kg |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC, Serial |
| Technical details | |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 299949 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
Manufacturer
Cisco
