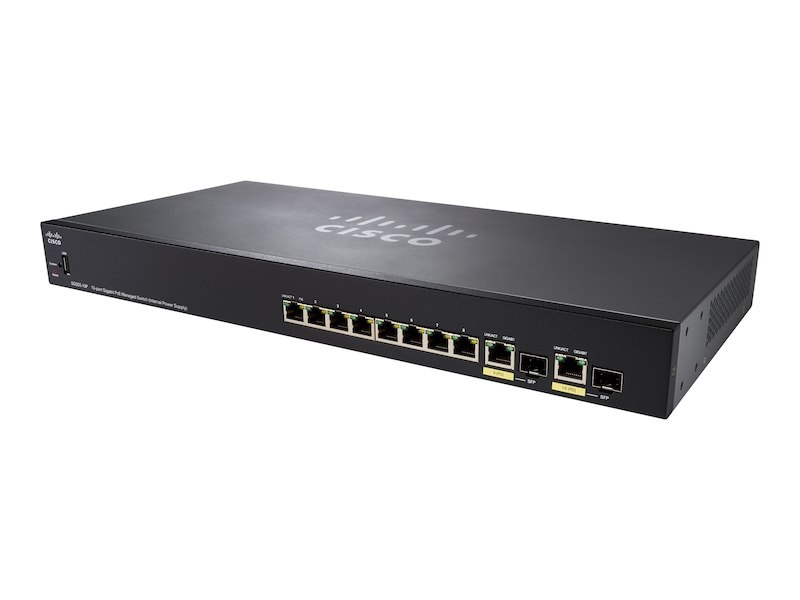

Cisco SG355-10P10-portGigabitPOEManagedSwitch REMANUFACTURED
Cisco SG355-10P 10-Port Gigabit PoE Managed Switch, 440 x 203 x 44 mm, 2.36 kg, AU
Part#:
SG355-10P-K9-JP-RF
Manufacturer:
Cisco
Excl. VAT: £335.51
Available to Backorder: contact for lead time
Cisco SG355-10P10-portGigabitPOEManagedSwitch REMANUFACTURED
More Information
Part#
SG355-10P-K9-JP-RF
Specification
| Management features | |
|---|---|
| ARP inspection | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| USB 2.0 ports quantity | 1 |
| Fiber optic connector | MiniGBIC |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Network | |
| Cable types supported | Cat5, Cat6, Cat7 |
| Cable length detection | Yes |
| Active link detection | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Multicast VLAN, Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 14.88 Mpps |
| Number of static routes | 1024 |
| Number of IP interfaces | 128 |
| Packet buffer memory | 12 MB |
| MAC address table | 16384 entries |
| Switching capacity | 20 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4096 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, Port-based authentication, Web-based authentication |
| Access Control List (ACL) rules | 512 |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, MD5, SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| Queue scheduling algorithms | WRR+SP |
| DoS attack prevention | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1,2,3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 0 fan(s) |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Performance | |
| Mean time between failures (MTBF) | 296426 h |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | Yes |
| Telnet | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12 MB |
| Power | |
| Power consumption (max) | 83.5 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 62 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 284.8 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Virtual LAN features | Multicast VLAN, Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 203 mm |
| Height | 44 mm |
| Weight | 2.36 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Optical fiber | |
| Fiber optic connector | MiniGBIC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Mean time between failures (MTBF) | 296426 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Telnet | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Certificates | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
Manufacturer
Cisco
