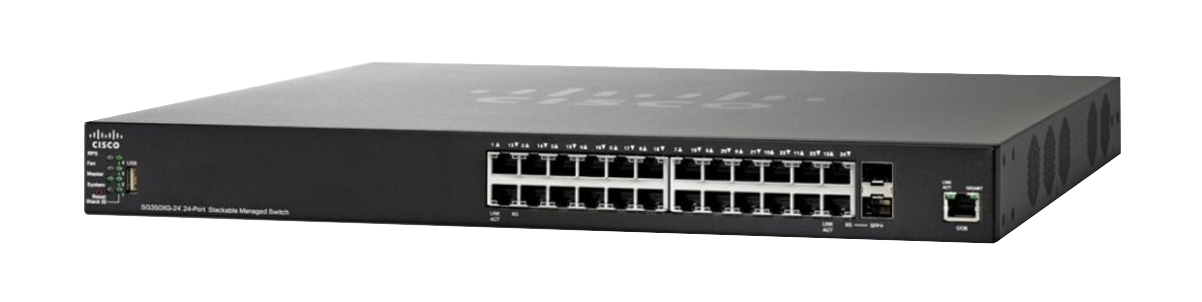

Cisco SG350X-24 24-port Gigabit Stackable SW REMANUFACTURED
Cisco SG350X-24 24-Port Gigabit Stackable Managed Switch, 440 x 257 x 44 mm, 4.32 kg, NA
Part#:
SG350X-24-K9-NA-RF
Manufacturer:
Cisco
Excl. VAT: £580.18
Available to Backorder: contact for lead time
Cisco SG350X-24 24-port Gigabit Stackable SW REMANUFACTURED
More Information
Part#
SG350X-24-K9-NA-RF
Specification
| Management features | |
|---|---|
| ARP inspection | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Network | |
| Cable length detection | Yes |
| Active link detection | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Throughput | 95.23 Mpps |
| Number of static routes | 8000 |
| Number of IP interfaces | 256 |
| Packet buffer memory | 12 MB |
| MAC address table | 64000 entries |
| Switching capacity | 128 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of multicast groups filtered | 4000 |
| Number of VLANs | 4094 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, Port-based authentication, Web-based authentication |
| Access Control List (ACL) rules | 2000 |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, MD5, SNMP, SSH, SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| DoS attack prevention | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 4000 |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) | Yes |
| IPv4 & IPv6 features | IPv6 ping, IPv6 Telnet, Dual stack IPv4/IPv6 |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Performance | |
| Physical stacking (units) | 4 |
| Processor frequency | 800 MHz |
| Noise level | 52.9 dB |
| Mean time between failures (MTBF) | 385289 h |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | Yes |
| Telnet | Yes |
| sFlow | Yes |
| Built-in processor | Yes |
| Packet buffer memory | 12 MB |
| Stackable | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 32.5 W |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 83.39 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 257 mm |
| Height | 44 mm |
| Weight | 4.32 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC, Serial |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv6 ping, IPv6 Telnet, Dual stack IPv4/IPv6 |
| Optical fiber | |
| Fiber optic connector | SFP+ |
| Technical details | |
| Physical stacking (units) | 4 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Noise level | 52.9 dB |
| Mean time between failures (MTBF) | 385289 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Telnet | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Certificates | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC, Serial |
Manufacturer
Cisco
