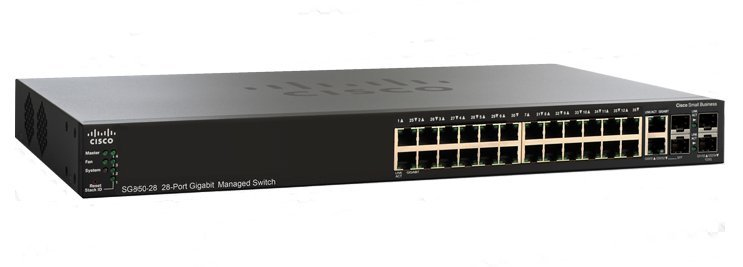

Cisco SG350-28 28-port Gigabit Managed Switch REMANUFACTURED
26x Gigabit Ethernet, 2x SFP slots, 2x 2 combo mini-GBIC, 56Gbps, 41.67mpps, VLAN, IPv6, SNMP, 16K MAC table, Spare
Part#:
SG350-28-K9-NA-RF
Manufacturer:
Cisco
Excl. VAT: £425.47
Available to Backorder: contact for lead time
Cisco SG350-28 28-port Gigabit Managed Switch REMANUFACTURED
More Information
Part#
SG350-28-K9-NA-RF
EAN
0889728070720
Specification
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | draft-ietf-bridge-8021x-MIB, draft-ietf-bridge, rstpmib-04-MIB, draft-ietf-hubmib-etherif-MIB-v3-00-MIB, draft-ietf-syslog-device-MIB, ianaaddrfamnumbers-MIB, ianaifty-MIB, ianaprot-MIB, inet-address-MIB, ip-forward-MIB, ip-MIB, RFC1155-SMI, RFC1213-MIB, SNMPv2-MIB, SNMPv2-SMI, SNMPv2-TM, RMON-MIB.my, dcb-raj-DCBX-MIB-1108-MIB, rfc1724-MIB, RFC-1212.my_for_MG-Soft, rfc1213-MIB, rfc1757-MIB RFC-, 1215.my, SNMPv2-, CONF.my, SNMPv2-TC.my, rfc2674-MIB, rfc2575-MIB, rfc2573-MIB, rfc2233-MIB, rfc2013-MIB, rfc2012-MIB, rfc2011-MIB, draft-ietf-entmib-sensor-MIB, lldp-MIB, lldpextdot1-MIB, lldpextdot3-MIB, lldpextmed-MIB, p-bridge-MIB, q-bridge-MIB, rfc1389-MIB, rfc1493-MIB, rfc1611-MIB, rfc1612-MIB, rfc1850-MIB, rfc1907-MIB, rfc2571-MIB, rfc2572-MIB, rfc2574-MIB, rfc2576-MIB, rfc2613-MIB, rfc2665-MIB, rfc2668-MIB, rfc2737-MIB, rfc2925-MIB, rfc3621-MIB, rfc4668-MIB, rfc4670-MIB, trunk-MIB, tunnel-MIB, udp-MIB |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| Cable length detection | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4096 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN |
| Data transmission | |
| Number of multicast groups filtered | 1000 |
| Number of VLANs | 4096 |
| Jumbo frames | 9216 |
| Throughput | 41.67 Mpps |
| Number of static routes | 512 |
| Number of IP interfaces | 128 |
| Packet buffer memory | 12 MB |
| MAC address table | 16384 entries |
| Switching capacity | 56 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 12 MB |
| Mean time between failures (MTBF) | 367687 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Built-in processor | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Mean time between failures (MTBF) | 367687 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Security | |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN |
| Access Control List (ACL) rules | 512 |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| Multicast features | |
| Number of multicast groups filtered | 1000 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/2c/3, HTTP/HTTPS, MIB, RMON, IPv4/IPv6 |
| Certificates | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Memory | |
| Packet buffer memory | 12 MB |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Rack mounting | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 19.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 16.4 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 202 mm |
| Height | 44.5 mm |
| Weight | 2.75 kg |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
Manufacturer
Cisco
