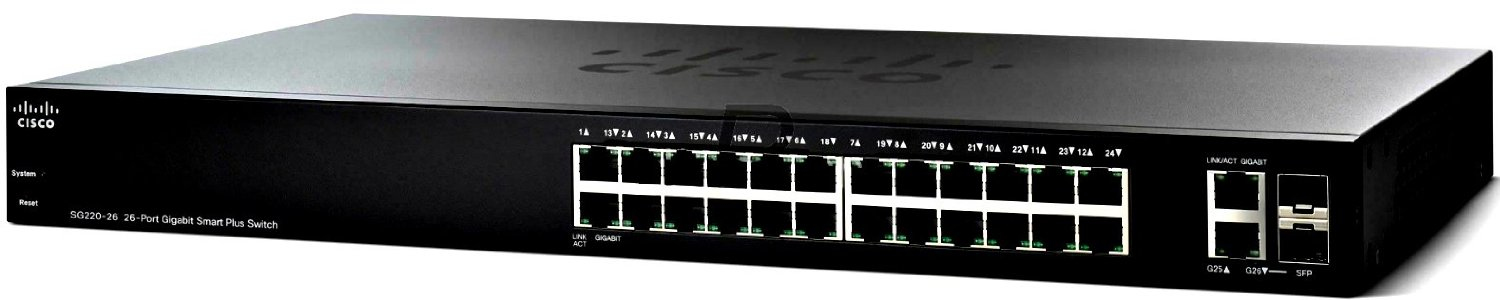

SG220-26 26-Port Gigabit Smart Switch REMANUFACTURED
26x RJ-45 Gigabit Ethernet, 2x Gigabit RJ45/SFP combo, 52Gbps, 38.69Mpps, 8192 MAC, L2, Managed, AU
Part#:
SG220-26-K9-NA-RF
Manufacturer:
Cisco
Excl. VAT: £181.91
Available to Backorder: contact for lead time
SG220-26 26-Port Gigabit Smart Switch REMANUFACTURED
More Information
Part#
SG220-26-K9-NA-RF
EAN
0882658906190
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 26 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 38.69 Mpps |
| MAC address table | 8192 entries |
| Switching capacity | 52 Gbit/s |
| Number of queues | 8 |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 256 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, SNMP v2, SNMP v3 |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Power | |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 201 mm |
| Height | 44 mm |
| Weight | 2.81 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
Manufacturer
Cisco
