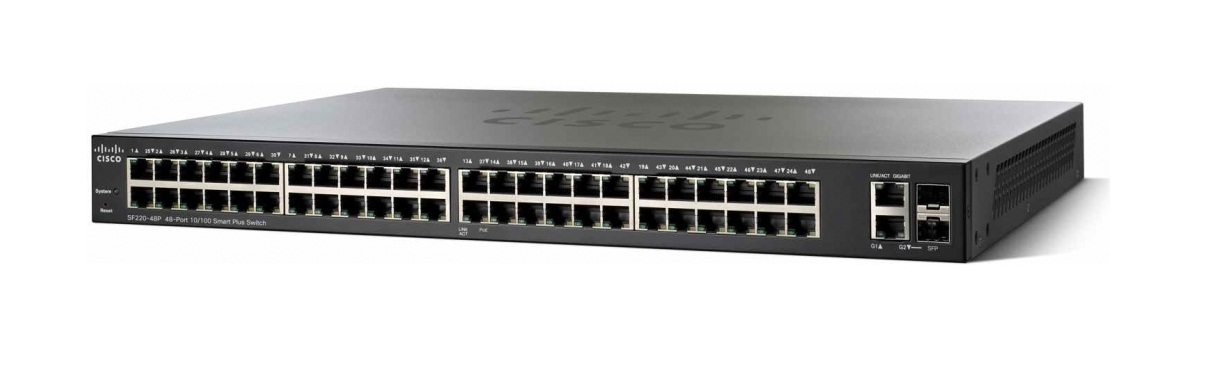

SF220-48 48-Port 10/100 Smart Switch REMANUFACTURED
48 10/100 ports + 2 Gigabit RJ45/SFP combo port, EU
Part#:
SF220-48-K9-EU-RF
Manufacturer:
Cisco
Excl. VAT: £222.63
RRP: £222.95
Save: 0%
Available to Backorder: contact for lead time
SF220-48 48-Port 10/100 Smart Switch REMANUFACTURED
More Information
Part#
SF220-48-K9-EU-RF
EAN
0882658973925
Specification
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 48 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Packet buffer memory | 12 MB |
| MAC address table | 8192 entries |
| Switching capacity | 13.6 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 10.12 Mpps |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 256 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Access Control List (ACL) rules | 512 |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Link, Speed, System |
| Rack mounting | Yes |
| Number of fans | 0 fan(s) |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick |
| Performance | |
| Mean time between failures (MTBF) | 369704 h |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Packet buffer memory | 12 MB |
| Power | |
| Power consumption (max) | 13.7 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 45 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 201 mm |
| Height | 44 mm |
| Weight | 2.98 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Mean time between failures (MTBF) | 369704 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 12 MB |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Certificates | |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick |
| Indication | |
| LED indicators | Link, Speed, System |
| Packaging data | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
Manufacturer
Cisco
