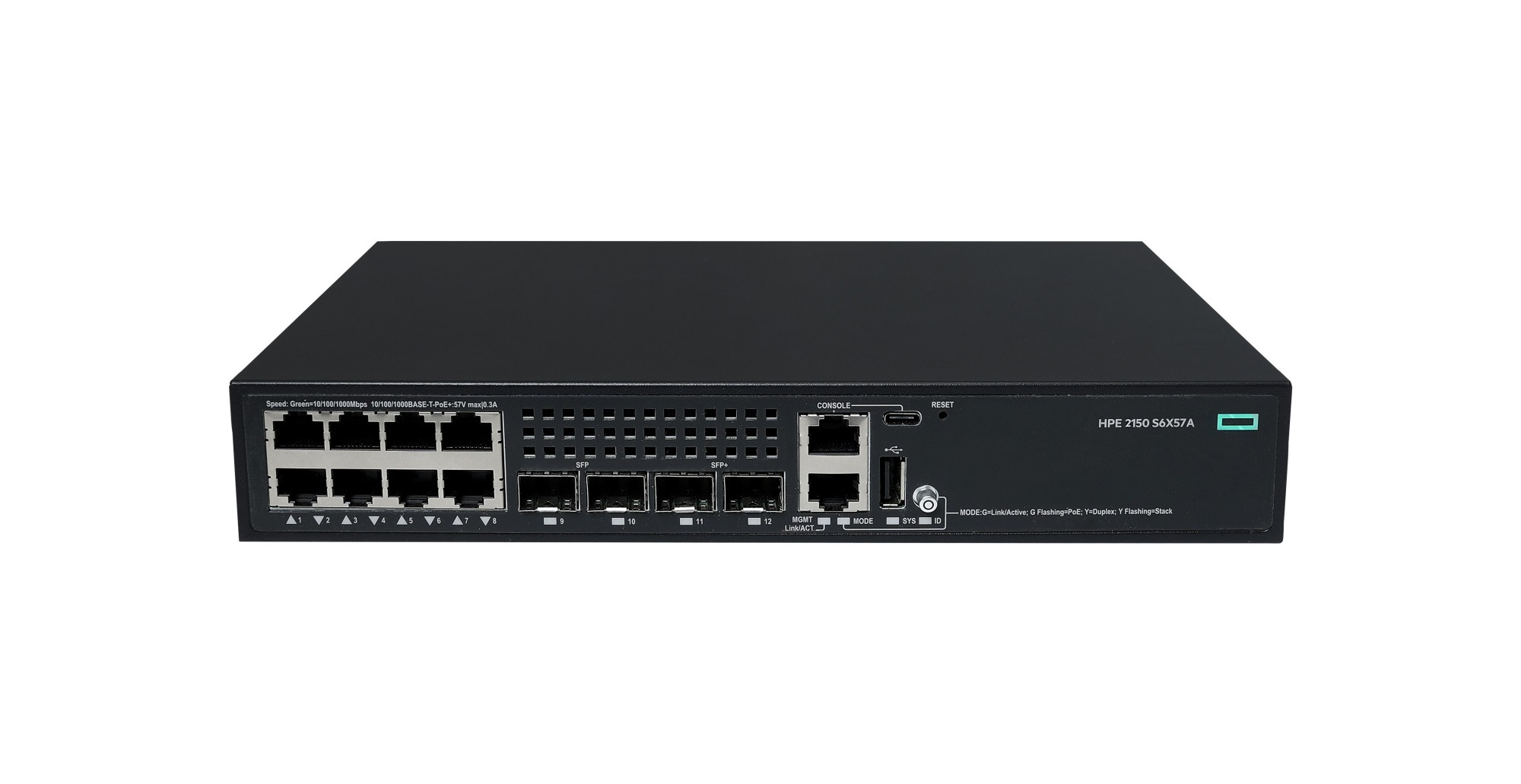

HPE Networking CW 2150 8p 10M/100M/1G PoE+ 2p SFP 1G 2p SFP+ 1G/10G 125W Switch
Networking CW 2150 8p 10M/100M/1G PoE+ 2p SFP 1G 2p SFP+ 1G/10G 125W Switch
Part#:
S6X57A
Manufacturer:
HPE
Excl. VAT: £758.00
Available to Backorder: contact for lead time
HPE Networking CW 2150 Switch Series empowers your business with reliable, high-performance networking tailored for small and medium-sized businesses and branch offices. These fully managed, stackable Layer 3 switches deliver enterprise-grade features without the complexity or high cost. With CW 2150 series, you get seamless management, robust security, and flexibility to scale as your needs grow. Designed for today’s evolving networks, these switches provide affordable excellence—enabling you to connect and protect your business with confidence. Upgrade to the CW 2150 series and experience secure, simple, and powerful networking for your organization.
What is new supporting point:
Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE
Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack
Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model
Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs
What is new supporting point:
Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE
Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack
Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model
Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs
More Information
Part#
S6X57A
EAN
0190017821061
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber ports quantity | 4 |
| Console port | RJ-45/USB Type-C |
| USB Type-C ports quantity | 1 |
| Number of management ports | 2 pc(s) |
| I/O ports | 8 x 10/100/1000BASE-T PoE+ ports 2 x 1000BASE-X SFP ports 2 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management |
| Switching optical modules type | Gigabit Ethernet |
| Network | |
| 10G support | Yes |
| Optical fiber | |
| Switching optical modules type | Gigabit Ethernet |
| Data transmission | |
| Throughput | 44 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| Switching capacity | 60 Gbit/s |
| Forwarding rate | 44 Mpps |
| Throughput | 60 Gbit/s |
| Security | |
| Security algorithms | SNMP |
| Protocols | |
| Management protocols | Web GUI, CLI, SmartMC, IMC, AirWave, REST API, SNMP |
| Supported network protocols | SNMP, REST API |
| Design | |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Number of fans | 0 fan(s) |
| Performance | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 9 |
| Processor frequency | 1200 MHz |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Fanless | Yes |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 152 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 10 W |
| Number of power supply units | 1 |
| Input voltage | 100 - 240 V |
| Power consumption note | Idle: 8W Typical: 10W Full load: 152W (PoE 125W) |
| Power source | AC |
| Power supply note | Fixed, 90–264V, single AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 125 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Other features | |
| Latency | 1 GE: < 5µs 10 GE: < 3µs (64-byte packets) |
| Performance management | Web GUI Command Line Interface (CLI) Smart Management Center (SmartMC) HPE Intelligence Management Center (IMC) HPE Networking Management Software (AirWave) REST API SNMP |
| Memory and processor | CPU: Dual-core Arm at 1.2 GHz Flash: 512 MB SDRAM: 1 GB |
| Fan | 0 |
| Weight (imperial) | 2.35 kg (5.18 lbs) |
| I/O ports | 8 x 10/100/1000BASE-T PoE+ ports 2 x 1000BASE-X SFP ports 2 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management |
| Dimensions (W x D x H) (imperial) | 270 x 352 x 87.9 mm (10.6 x 13.9 x 3.46") |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Heat dissipation | 519 BTU/h |
| Weight & dimensions | |
| Width | 270 mm |
| Depth | 352 mm |
| Height | 87.9 mm |
| Weight | 2.35 kg |
| Weight (imperial) | 2.35 kg (5.18 lbs) |
| Dimensions (W x D x H) (imperial) | 270 x 352 x 87.9 mm (10.6 x 13.9 x 3.46") |
| Technical details | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 9 |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1200 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
Manufacturer
HPE
