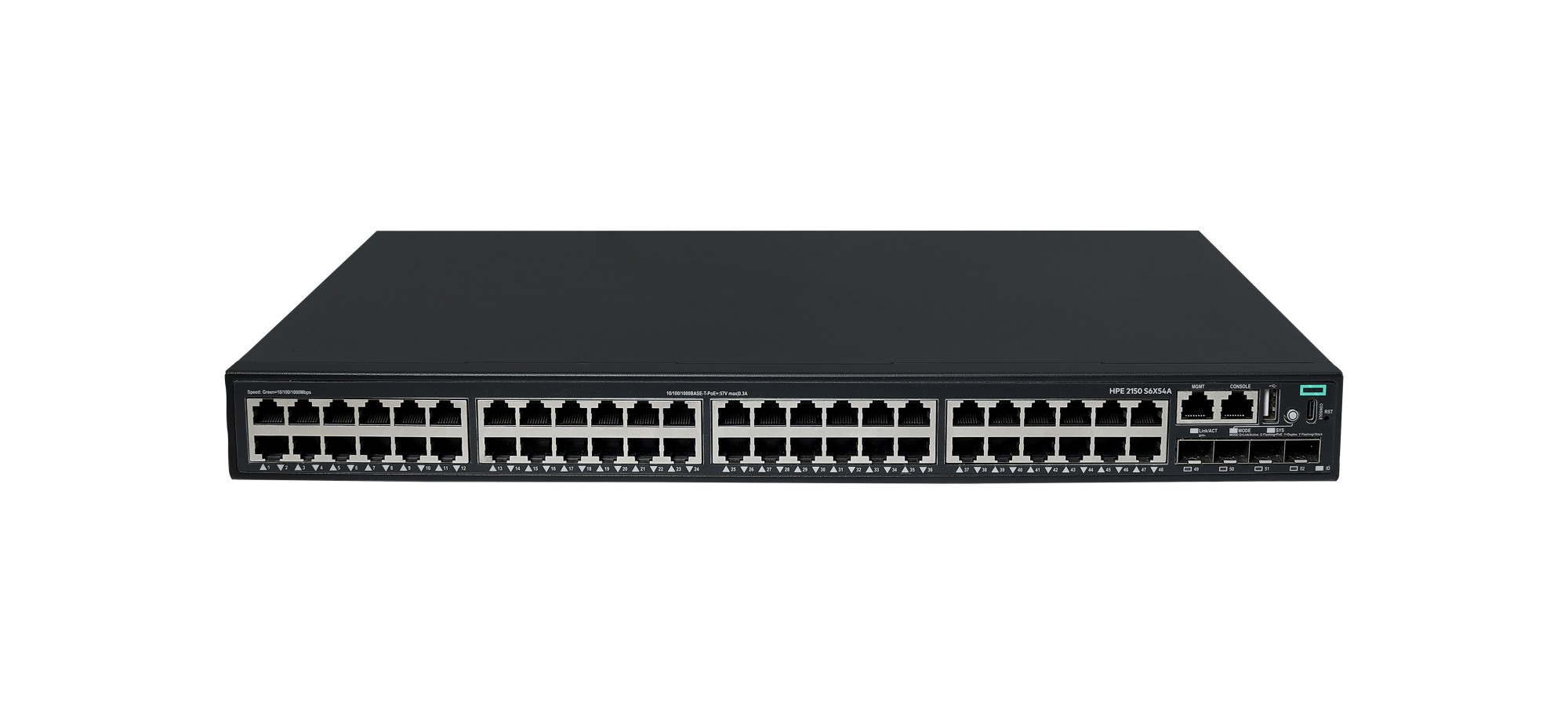

HPE Networking CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 770W Switch
Networking CW 2150 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 770W Switch
Part#:
S6X54A
Manufacturer:
HPE
Excl. VAT: £2,407.00
Available to Backorder: contact for lead time
HPE Networking CW 2150 Switch Series empowers your business with reliable, high-performance networking tailored for small and medium-sized businesses and branch offices. These fully managed, stackable Layer 3 switches deliver enterprise-grade features without the complexity or high cost. With CW 2150 series, you get seamless management, robust security, and flexibility to scale as your needs grow. Designed for today’s evolving networks, these switches provide affordable excellence—enabling you to connect and protect your business with confidence. Upgrade to the CW 2150 series and experience secure, simple, and powerful networking for your organization.
What is new supporting point:
Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE
Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack
Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model
Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs
What is new supporting point:
Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE
Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack
Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model
Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs
More Information
Part#
S6X54A
EAN
0190017821030
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| I/O ports | 48 x 10/100/1000BASE-T PoE+ ports 4 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management |
| Data transmission | |
| Throughput | 130 Mpps |
| Switching capacity | 176 Gbit/s |
| Design | |
| Stackable | Yes |
| Performance | |
| Physical stacking (units) | 9 |
| Processor frequency | 1200 MHz |
| Internal memory | 512 MB |
| Built-in processor | Yes |
| Stackable | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption note | Idle: 35W Typical: 56W Full load: 969W (PoE 770W) |
| Power supply note | Fixed, 90–264V, single AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 770 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | 1 GE: < 5µs 10 GE: < 3µs (64-byte packets) |
| Performance management | Web GUI Command Line Interface (CLI) Smart Management Center (SmartMC) HPE Intelligence Management Center (IMC) HPE Networking Management Software (AirWave) REST API SNMP |
| Memory and processor | CPU: Dual-core Arm at 1.2 GHz Flash: 512 MB SDRAM: 1 GB |
| Fan | 2 |
| Weight (imperial) | 5.5 kg (12.1 lbs) |
| I/O ports | 48 x 10/100/1000BASE-T PoE+ ports 4 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management |
| Dimensions (W x D x H) (imperial) | 380 x 549.9 x 125 mm (15 x 21.6 x 4.92") |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Heat dissipation | 3306 BTU/h |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 549.9 mm |
| Height | 125 mm |
| Weight | 5.5 kg |
| Weight (imperial) | 5.5 kg (12.1 lbs) |
| Dimensions (W x D x H) (imperial) | 380 x 549.9 x 125 mm (15 x 21.6 x 4.92") |
| Technical details | |
| Physical stacking (units) | 9 |
| Stackable | Yes |
| Processor frequency | 1200 MHz |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
Manufacturer
HPE
