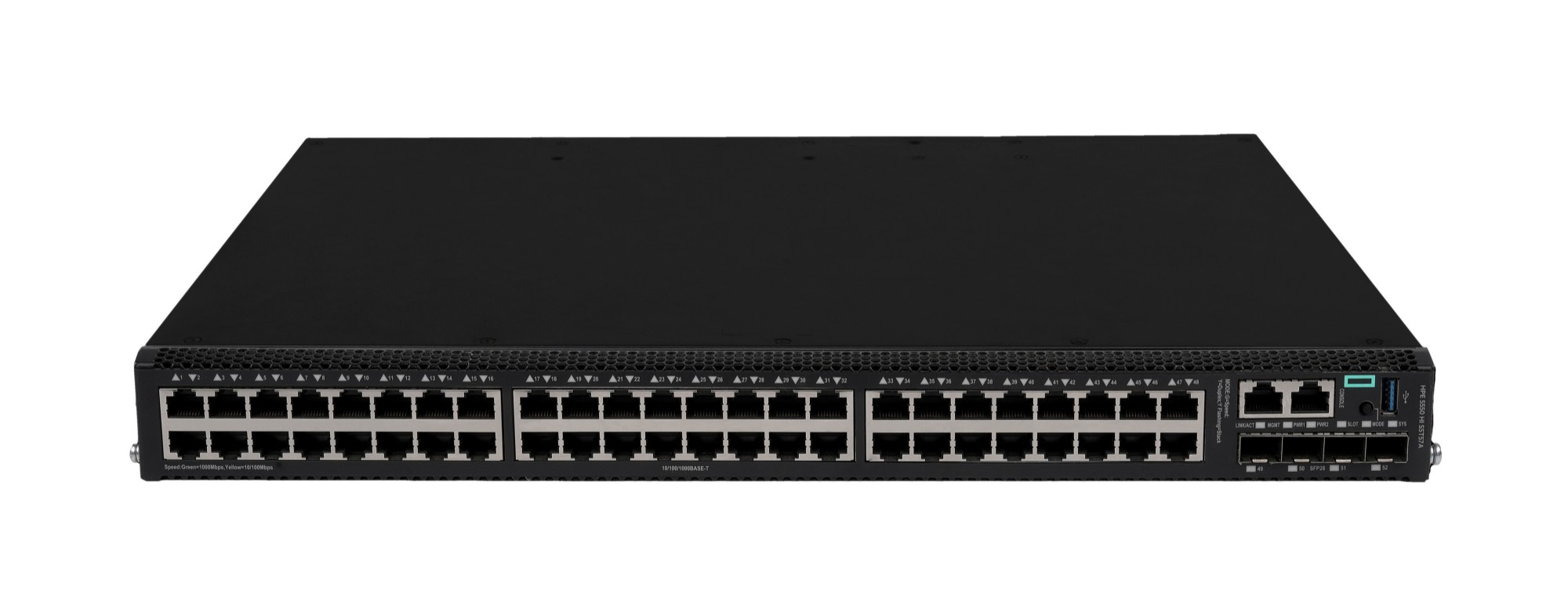

HPE S5T57A - NW CW Sw 48G 4Y 1-slot 5550HI
HPE Networking Comware Switch 48p 10M/100M/1G 4p SFP28 10G/25G 1-slot 5550HI
Part#:
S5T57A
Manufacturer:
HPE
Excl. VAT: £8,106.00
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 5550 HI is a family of stackable L3 access and aggregation switches powered by Comware delivering the performance, resiliency and flexibility for medium and large enterprise. Equipped with 36 and 48 MACsec-256 enabled 1G copper, fiber and combo ports, 4 built in 10/25G SFP28 uplinks, dual hot swappable power supply and fan trays, the 5550 HI also has one built-in expansion slots for the cross platform network modules used in the Comware 5000 series. The platform supports high density 90W PoE (802.3bt) per port, high performance IP routing and MPLS. Intelligent Resilient Fabric (IRF) stacking up to 9 members adds scale and high availability while Intelligent Network Quality Analyzer (iNQA) supports real-time visibility into network health and performance. In addition HPE IMC for centralized management, the 5550 HI comes with the built-in embedded management system SmartMC for configuration, visibility and monitoring at no additional cost.
What is new supporting point:
Support containerizaton for application hosting.
Improved hardware specification and scale: faster CPU, increased memory, up to 744 Gpbs bandwidth, 128K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast and MPLS LSP scale.
Diverse I/O options and upgraded uplinks: Flexible I/O 36 and 48 port copper, fiber and combo GE ports downlink, and expanded uplink ports 8x25G and 2x100G via the expansion model.
Enhanced security with all ports MacSec AES-256.
L3 multicast support.
High Densify PoE++: up to 48 port 90W PoE++/port.
What is new supporting point:
Support containerizaton for application hosting.
Improved hardware specification and scale: faster CPU, increased memory, up to 744 Gpbs bandwidth, 128K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast and MPLS LSP scale.
Diverse I/O options and upgraded uplinks: Flexible I/O 36 and 48 port copper, fiber and combo GE ports downlink, and expanded uplink ports 8x25G and 2x100G via the expansion model.
Enhanced security with all ports MacSec AES-256.
L3 multicast support.
High Densify PoE++: up to 48 port 90W PoE++/port.
More Information
Part#
S5T57A
EAN
0190017788982
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| SFP28 ports quantity | 4 |
| Network | |
| 10G support | Yes |
| IPv6 FIB entries | 256 |
| Data transmission | |
| Throughput | 518 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| MAC address table | 128000 entries |
| Switching capacity | 696 Gbit/s |
| Protocols | |
| IPv6 FIB entries | 256 |
| Design | |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 9 |
| Memory type | SDRAM / Flash |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Stackable | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 90 - 290 V |
| DC input voltage | 36 - 72 V |
| Power consumption note | Idle: Single AC: 34W, Dual AC: 42W; Single DC: 35W Dual DC: 41W, Full Load: Single AC: 90W, Dual AC: 100W; Single DC: 95W, Dual DC: 100W |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 90 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | GE: < 5 µs, 10GE: < 3 µs, 40GE: <1.2µs |
| Performance management | IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC Web GUI |
| Memory and processor | CPU: ARM 2GHz Quard core 4GB SDRAM, 4GB Flash, 8M Packet buffer |
| Port speed rating | 48x 10/100/1000Base-T ports 4x 10G/25GBase-X SFP28 ports 1x RJ45 console port 1x USB 1x OOBM 1 expansion slot |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 256 |
| Technical details | |
| Physical stacking (units) | 9 |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Port speed rating | 48x 10/100/1000Base-T ports 4x 10G/25GBase-X SFP28 ports 1x RJ45 console port 1x USB 1x OOBM 1 expansion slot |
| Built-in processor | Yes |
| Memory | |
| Memory type | SDRAM / Flash |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
Manufacturer
HPE
