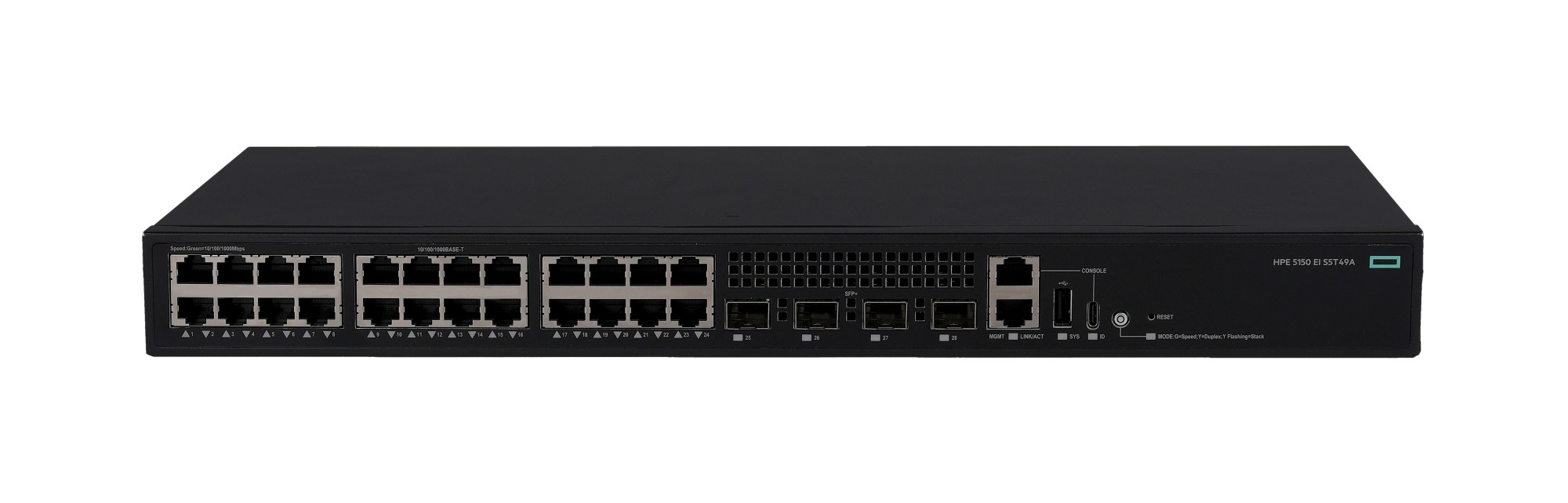

HPE S5T49A - NW CW Sw 24G 4P 5150EI

HPE Networking Comware Switch 24p 10M/100M/1G 4p SFP+ 1G/10G 5150EI
Part#:
S5T49A
Manufacturer:
HPE
Excl. VAT: £3,418.00
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 5150 EI is a family of stackable L3 access switches powered by HPE Comware OS delivering scalability and resiliency at a modest TCO for small, medium, and large enterprise campus networks. With 8, 24, and 48 gigabit ports, options for mixed copper and fiber connectivity, and up to 30 watts of 802.3at PoE per port this flexible series is ready to connect your edge clients, servers, and IoT devices. Built-in 10 GbE uplinks and Intelligent Resilient Fabric (IRF) stacking up to 9-members adds scale, resiliency, and simplification to your access network, enabling network operators to manage the whole stack as a single logical switch. Network visibility, management, and operation tools for this series include standard CLI and the Smart Management Center (SmartMC), embedded and ready to use at no additional cost. The series integrates with HPE Aruba Networking IMC, delivering a centralized point of control for your entire network.

What is new supporting point:
Family of stackable L3 access switches with 1 GbE downlinks, 10 GbE uplinks, and support OSPF, EIGRP, ISIS, RIP and routed access. PoE-enabled models deliver up to 30 watts of 802.3at power per port.
8, 24, and 48 port configurations available, supporting up to 176 Gbps of switching capacity and 130 Mpps of forwarding throughput. 24-port fiber option with redundant, dual modular power supplies.
Up to 432 ports of scalability with Intelligent Resilient Fabric (IRF) stacking up to 9-members for link and device aggregation across your network, enhancing redundancy and resource usage.
Standard CLI and Smart Management Center (SmartMC) embedded and ready to use, delivering network visibility, management, and operations at no additional cost.
Energy Efficient Ethernet and energy-saving green design initiatives support your sustainability efforts by automatically reducing power to idle ports and powering down unused ports.
More Information
Part#
S5T49A
EAN
0190017789149
Specification
Management features
Switch typeManaged
Quality of Service (QoS) supportYes
Switch layerL3
Ports & interfaces
SFP+ module slots quantity4
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Network
10G supportYes
Data transmission
Throughput95 Mpps
Latency (1 Gbps)5 µs
Latency (10 Gbps)3 µs
Packet buffer memory1.5 MB
Switching capacity128 Gbit/s
Design
Product colourBlack
StackableYes
Rack mountingYes
Number of fans2 fan(s)
Performance
Physical stacking (units)9
Processor frequency1200 MHz
Memory typeSDRAM / Flash
Internal memory2048 MB
Flash memory1024 MB
Processor manufacturerARM
Built-in processorYes
Packet buffer memory1.5 MB
StackableYes
Harmonized System (HS) code85176990
Power
Power supply includedYes
AC input voltage90 - 290 V
Power consumption noteIdle: Single AC: 6W Full Load: Single AC: 21W
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Other features
Latency1GE: < 5 µs; 10GE: < 3 µs
Performance managementIMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI
Memory and processorCPU: Arm 1.2 GHz Dual Core 2 GB SDRAM, 1 GB Flash, 1.5 MB packet buffer
Port speed rating24p 10M/100M/1G 4p SFP+ 1G/10G
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Weight & dimensions
Height3.6 mm
Technical details
Physical stacking (units)9
Product colourBlack
StackableYes
Processor frequency1200 MHz
Rack mountingYes
Port speed rating24p 10M/100M/1G 4p SFP+ 1G/10G
Built-in processorYes
Memory
Packet buffer memory1.5 MB
Memory typeSDRAM / Flash
Internal memory2048 MB
Flash memory1024 MB
Logistics data
Harmonized System (HS) code85176990
Manufacturer
HPE
