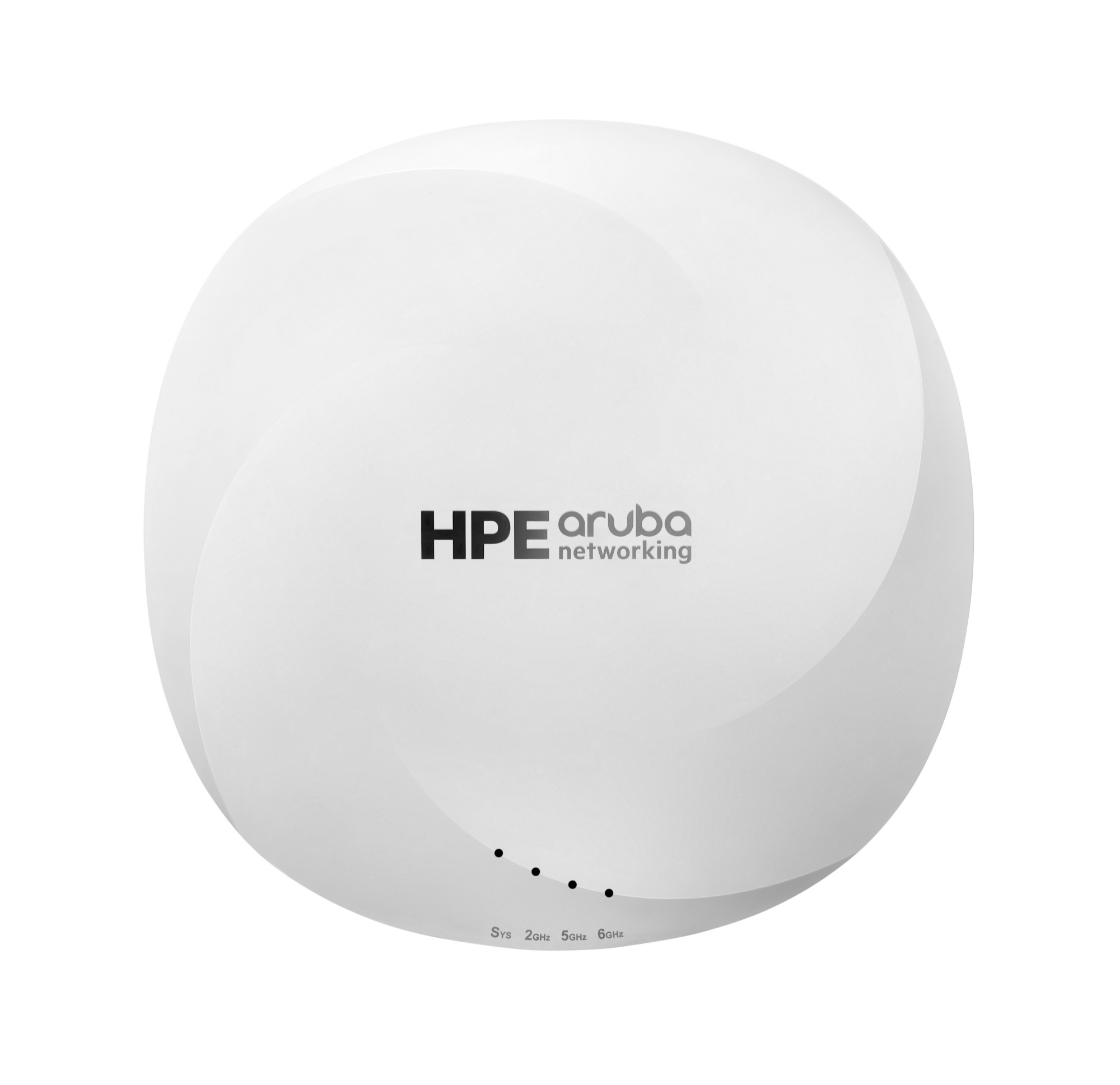

HPE Aruba Networking AP-615 (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Internal Ants Campus AP

Aruba Networking AP-615 (ID) Dual Radio Tri Band 2x2 802.11ax Wi-Fi 6E Internal Ants Campus AP
Part#:
S5E06A
Manufacturer:
HPE
Excl. VAT: £774.00
RRP: £822.00
Save: 6%
Available to Backorder: contact for lead time
HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and Internet of Things (IoT) devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-access point deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.

What is new supporting point:
It is offered as optional eco-friendly 10-pack
The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]
Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments
Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate
More Information
Part#
S5E06A
EAN
0190017773483
Specification
Data transmission
Ethernet LAN data rates5000 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Frequency band20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
Networking standardsIEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates5000 Mbit/s
CertificationUL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
MIMOYes
Compatible operating systemsHPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
Wireless LAN features
Frequency band20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
Network
Networking standardsIEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O portsE0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Features
6 GHzYes
2.4 GHzYes
5 GHzYes
Frequency band20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
Networking standardsIEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates5000 Mbit/s
MIMOYes
MACsec supportNo
Compatible operating systemsHPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
Management features
Access point managementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
CertificationUL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
Recommended usageIndoor
Antenna
Antenna direction typeOmni-directional
Technical details
Weight (imperial)0.721 kg (1.59 lbs)
Compliance certificatesFederal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certificates
CertificationUL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
Compliance certificatesFederal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Weight & dimensions
Width201 mm
Depth183 mm
Weight720 g
Height51 mm
Other features
I/O portsE0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Weight (imperial)0.721 kg (1.59 lbs)
System requirements
Compatible operating systemsHPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
Manufacturer
HPE
