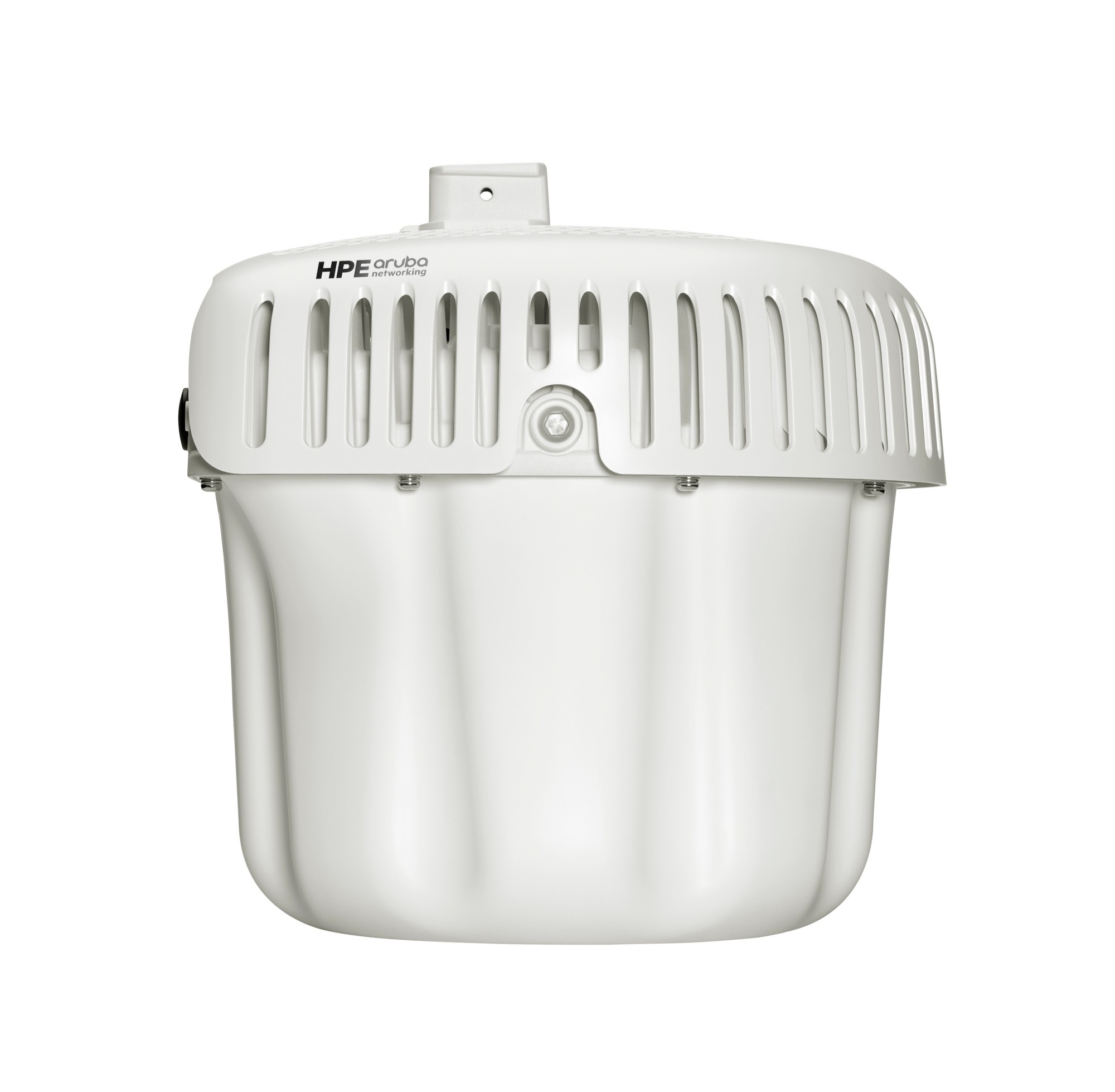

HPE Aruba Networking AP-585EX (ID) Dual Radio 4x4 802.11ax Internal Omni Antennas HazLoc AP

Aruba Networking AP-585EX (ID) Dual Radio 4x4 802.11ax Internal Omni Antennas HazLoc AP
Part#:
S5E01A
Manufacturer:
HPE
Excl. VAT: £3,674.00
RRP: £3,903.00
Save: 6%
Available to Backorder: contact for lead time
HPE Aruba Networking 580EX Series Hazardous Location Access Points are weatherproofed and temperature hardened to support hazardous environments, including outdoor oil rigs, industrial manufacturing, and transportation sites. With Wi-Fi 6 capabilities, high power Bluetooth and 802.15.4/Zigbee radios, and a peak aggregate data rate of 2.97 Gbps, the 580EX series delivers the speed and reliability needed for demanding Industrial Internet of Things (IoT) environments. Purpose-built to survive one of the harshest outdoor environments, the 580EX series withstands exposure to extreme high and low temperatures and persistent moisture, is fully sealed to keep out airborne contaminants, and includes industrial surge protection. The 580EX series offers flexible power and management options to meet the needs of diverse environments and can be deployed using existing mounts. The 580EX series is Wi-Fi 6 certified and backed by a limited lifetime warranty.

What is new supporting point:
Wi-Fi 6 capabilities to deliver multi-gigabit performance and speed with a peak aggregate data rate of 2.97 Gbps
The access point supports Gbps multi-gigabit Ethernet ports and 802.3bt Class 6 power or AC power included; no need for add-on AC power adapters
Purpose-built to survive in one of the harshest outdoor environments with hazardous location Class 1 Division 2, ATEX Zone 2, and IP66 rating for hazardous locations
Features high-power Bluetooth and 802.15.4/Zigbee support for Industrial IoT
Seamless connectivity with RF automation (HPE Aruba Networking AirMatch), client optimization (HPE Aruba Networking ClientMatch), and AIOps (AI insights) for built-in configuration recommendations
More Information
Part#
S5E01A
EAN
0190017773438
Specification
Data transmission
Ethernet LAN data rates1000,5000 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Frequency band20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Networking standardsIEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates1000,5000 Mbit/s
CertificationWi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, Class 6; E2, PoE PSE device, Class 3) Class 1 Div 2 ATEX Zone 2 IECEx
MIMO typeMulti User MIMO
MIMOYes
Compatible operating systemsHPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System 10
Wireless LAN features
Frequency band20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Network
Networking standardsIEEE 802.11ax, IEEE 802.11mc
Ports & interfaces
I/O portsEthernet wired port (RJ-45) Ethernet wired port (RJ-45) PSE Ethernet wired port (SFP+) USB-C console interface
Features
2.4 GHzYes
5 GHzYes
Frequency band20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
Networking standardsIEEE 802.11ax, IEEE 802.11mc
Ethernet LAN data rates1000,5000 Mbit/s
MIMO typeMulti User MIMO
MIMOYes
MACsec supportNo
Compatible operating systemsHPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System 10
Management features
Access point managementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Design
CertificationWi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, Class 6; E2, PoE PSE device, Class 3) Class 1 Div 2 ATEX Zone 2 IECEx
Recommended usageOutdoor
Antenna
Antenna direction typeOmni-directional
Technical details
Compliance certificatesFederal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
CertificationWi‑Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, Class 6; E2, PoE PSE device, Class 3) Class 1 Div 2 ATEX Zone 2 IECEx
Compliance certificatesFederal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width324 mm
Other features
I/O portsEthernet wired port (RJ-45) Ethernet wired port (RJ-45) PSE Ethernet wired port (SFP+) USB-C console interface
System requirements
Compatible operating systemsHPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System 10
Manufacturer
HPE
