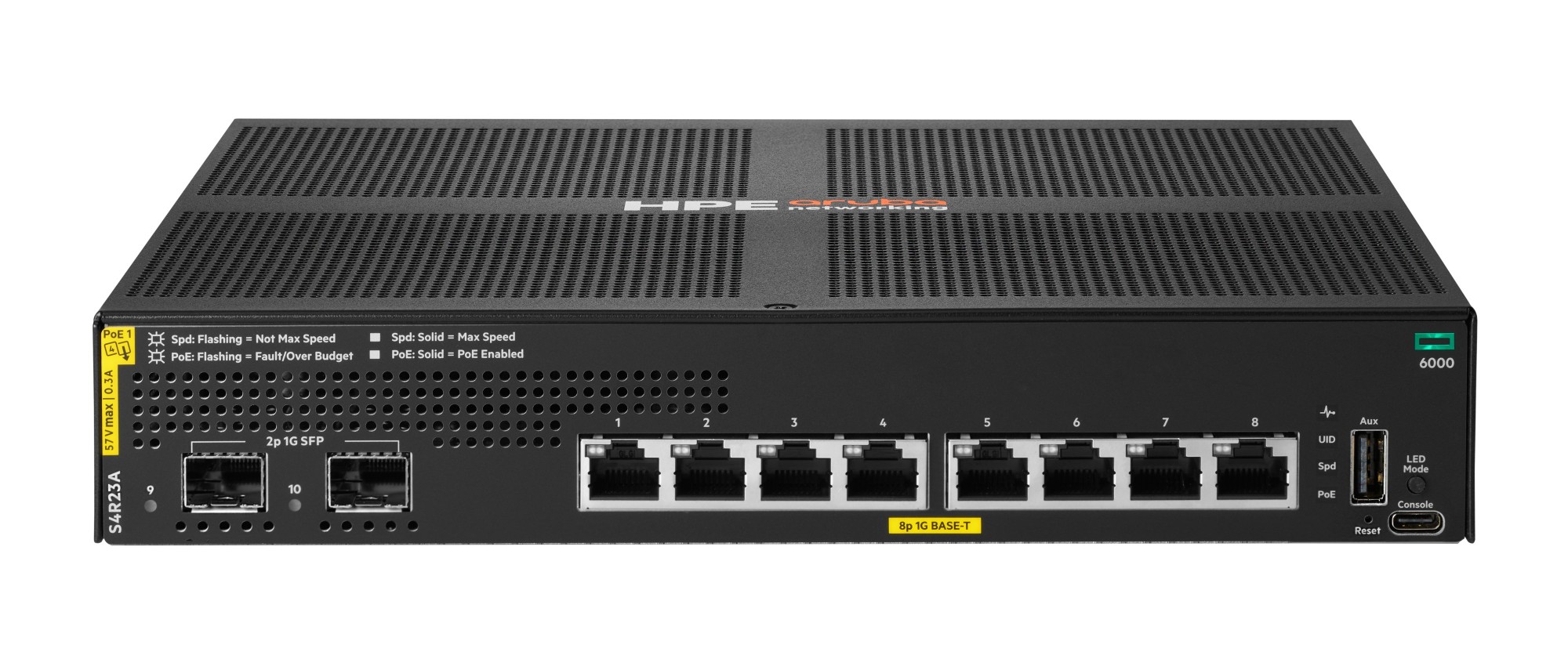

HPE Aruba Networking CX 6000 8p 10M/100M/1G Class4 PoE 2p SFP 1G 67W Switch

Details

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.

What is new supporting point:
It has compact and fanless 8-port and 12-port models for space-constrained deployments
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.

Specification

More Information

Part#

S4R23A

EAN

5902002369138

Specification

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	USB
I/O ports	8 x 10/100/1000BASE-T Class 4 PoE ports 2 x 1 G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Network
Networking standards	IEEE 802.3at, IEEE 802.3af
10G support	No
Data transmission
Throughput	14.8 Mpps
Latency (1 Gbps)	3.2 µs
Switching capacity	20 Gbit/s
Static route	Yes
Security
Authentication	MAC-based authentication
Access Control List (ACL)	Yes
Design
Form factor	1U
Product colour	Black
Stackable	No
Rack mounting	Yes
Performance
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16000 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Stackable	No
Power
Power consumption (max)	16.3 W
Power supply included	Yes
AC input voltage	200 - 240 V
Power consumption note	Max. Power (w/o PoE): 16.3W Max. Power (w/ PoE): 98W
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	67 W
Power over Ethernet (PoE)	Yes
Other features
Latency	1 Gbps: 3.2 μSec
Performance management	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Memory and processor	CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
I/O ports	8 x 10/100/1000BASE-T Class 4 PoE ports 2 x 1 G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Form factor	1U
Product colour	Black
Stackable	No
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Memory
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16000 MB
