HPE S3J35A - ANW AP-635 (RW) 5pk Campus AP

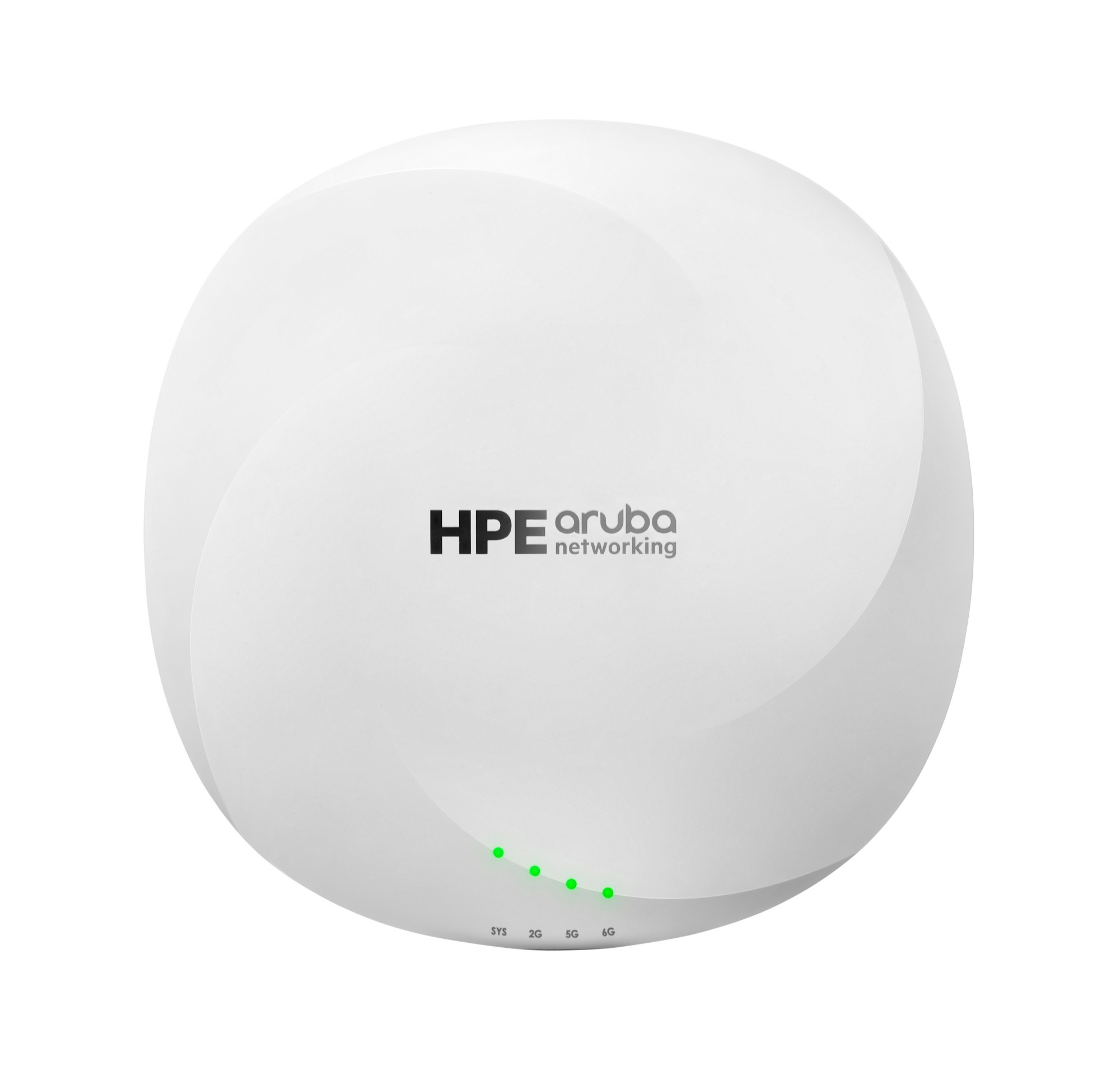

Aruba Networking AP-635 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Antennas 5-pack Campus Access Point
Part#:
S3J35A
Manufacturer:
HPE
Excl. VAT: £3,983.75
RRP: £5,757.00
Save: 31%
Available to Backorder: contact for lead time
HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled allowing enterprises to meet the today needs and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables. The 630 Series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor use. With up to seven 160 MHz channels, the 630 APs maximizes performance for low-latency, bandwidth-hungry applications. The ultra tri-band filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 Series includes dual port hitless failover for ethernet and power.
What is new supporting point:
Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band –unlocking up to 1200 MHz of spectrum.
Wider channels and less interference to deliver faster speeds for ow-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality.
Unique filtering capabilities to mitigates gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands.
High availability with hitless failover for Ethernet and power to help ensure business continuity.
Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E once it is approved in country.
What is new supporting point:
Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band –unlocking up to 1200 MHz of spectrum.
Wider channels and less interference to deliver faster speeds for ow-latency, bandwidth-hungry applications like high-definition video and augmented reality/virtual reality.
Unique filtering capabilities to mitigates gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands.
High availability with hitless failover for Ethernet and power to help ensure business continuity.
Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E once it is approved in country.
More Information
Part#
S3J35A
EAN
0190017702896
Specification
Data transmission | |
---|---|
Ethernet LAN data rates | 100,1000,2500 Mbit/s |
Maximum data transfer rate | 2400 Mbit/s |
Performance | |
2.4 GHz | Yes |
5 GHz | Yes |
GPS (satellite) | Yes |
Frequency band | 2.4/5/6 GHz |
Networking standards | IEEE 802.15.4 |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Ethernet LAN data rates | 100,1000,2500 Mbit/s |
Certification | None |
Maximum data transfer rate | 2400 Mbit/s |
MIMO | Yes |
Wireless LAN features | |
Frequency band | 2.4/5/6 GHz |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Network | |
Networking standards | IEEE 802.15.4 |
Features | |
6 GHz | Yes |
2.4 GHz | Yes |
5 GHz | Yes |
GPS (satellite) | Yes |
Frequency band | 2.4/5/6 GHz |
Networking standards | IEEE 802.15.4 |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Ethernet LAN data rates | 100,1000,2500 Mbit/s |
Maximum data transfer rate | 2400 Mbit/s |
Bluetooth | Yes |
Bluetooth version | 5.0 |
MIMO | Yes |
Security | |
Security algorithms | WPA, WPA2, WPA3 |
Ports & interfaces | |
USB 2.0 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
Power | |
Power over Ethernet (PoE) | Yes |
Design | |
Placement | Ceiling |
Product colour | White |
Certification | None |
Antenna | |
Antenna type | Internal |
Antenna gain level (max) | 7 dBi |
Antenna direction type | Omni-directional |
Antenna features | Integrated antenna |
Technical details | |
Compliance certificates | Low Voltage Directive (LVD) |
Certificates | |
Certification | None |
Compliance certificates | Low Voltage Directive (LVD) |
Weight & dimensions | |
Width | 220 mm |
Depth | 50 mm |
Weight | 1.3 kg |
Height | 220 mm |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 10 - 100% |
Manufacturer
HPE
