HPE S2T76A - 100GbE 16QSFP28 P2C Sw SN2100M w/NVD

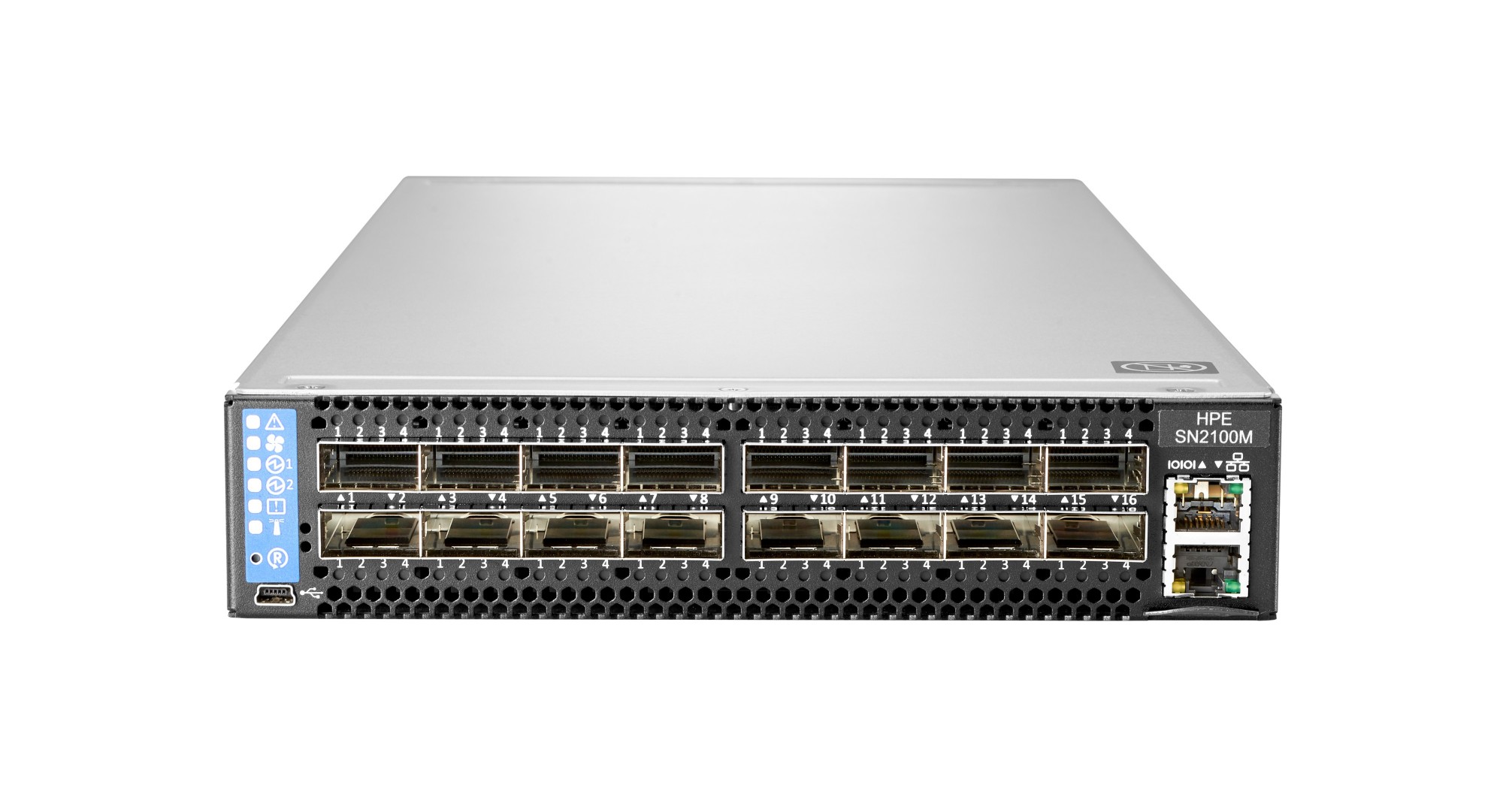

HPE 100GbE 16QSFP28 Power to Connector Airflow Half Width Switch SN2100M with NVIDIA Cumulus
Part#:
S2T76A
Manufacturer:
HPE
Excl. VAT: £17,865.00
Available to Backorder: contact for lead time
How can you provide fast, reliable, and cost-effective connectivity in the data center with predictable performance and investment protection? HPE Storage Switch M-series SN2100M is ideal for modern server and storage networks. Supporting port speeds of 1, 10, 25, 40, 50, and 100 GbE, delivering predictable performance and zero packet loss at line-rate across each port and packet size. Enhanced for storage combined with efficient design, it provides enterprise-level performance with attractive economics and outstanding ROI. Networks built on HPE Storage SN2100M are fast, reliable, and scalable while also being affordable and easy to manage. It supports primary and secondary storage, providing consistently fair, fast, and low-latency connectivity even under heavy workloads or a mix of different port speeds. This makes them ideal for storage, hyperconverged infrastructure, financial services, and media and entertainment deployments.
What is new supporting point:
The NVIDIA Cumulus Linux Network Operating System is now bundled with the HPE Storage Switch M-series SN2100M using SKU S2T76A
What is new supporting point:
The NVIDIA Cumulus Linux Network Operating System is now bundled with the HPE Storage Switch M-series SN2100M using SKU S2T76A
More Information
Part#
S2T76A
EAN
0190017700885
Specification
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Fiber ports quantity | 16 |
| Fiber optic connector | QSFP28 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 16 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-A ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Network | |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 3200 Gbit/s |
| Protocols | |
| Supported protocols | Ethernet |
| Design | |
| Form factor | 1U |
| Product colour | Silver |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
| Media types supported | QSFP28 |
| Stackable | No |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power source | AC |
| Power saving mode (EEE) | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Weight (imperial) | 4.54 kg (10 lbs) |
| Technical features | Integrated redundant power supply |
| Port speed rating | Supports speeds of 1, 10, 25, 40, 50, 100 GbE |
| Optional software | HPE SN2100M 100GbE 8p Upgrade E-LTU (Q2M94AAE) |
| Dimensions (W x D x H) (imperial) | 43.7 x 199.9 x 508 mm (1.72 x 7.87 x 20") |
| Supported protocols | Ethernet |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 200 mm |
| Height | 508 mm |
| Weight | 4.53 kg |
| Weight (imperial) | 4.54 kg (10 lbs) |
| Dimensions (W x D x H) (imperial) | 43.7 x 199.9 x 508 mm (1.72 x 7.87 x 20") |
| Optical fiber | |
| Fiber optic connector | QSFP28 |
| Technical details | |
| Form factor | 1U |
| Product colour | Silver |
| Stackable | No |
| Rack mounting | Yes |
| Technical features | Integrated redundant power supply |
| Supported protocols | Ethernet |
| Port speed rating | Supports speeds of 1, 10, 25, 40, 50, 100 GbE |
| Optional software | HPE SN2100M 100GbE 8p Upgrade E-LTU (Q2M94AAE) |
| System requirements | |
| Media types supported | QSFP28 |
Manufacturer
HPE
