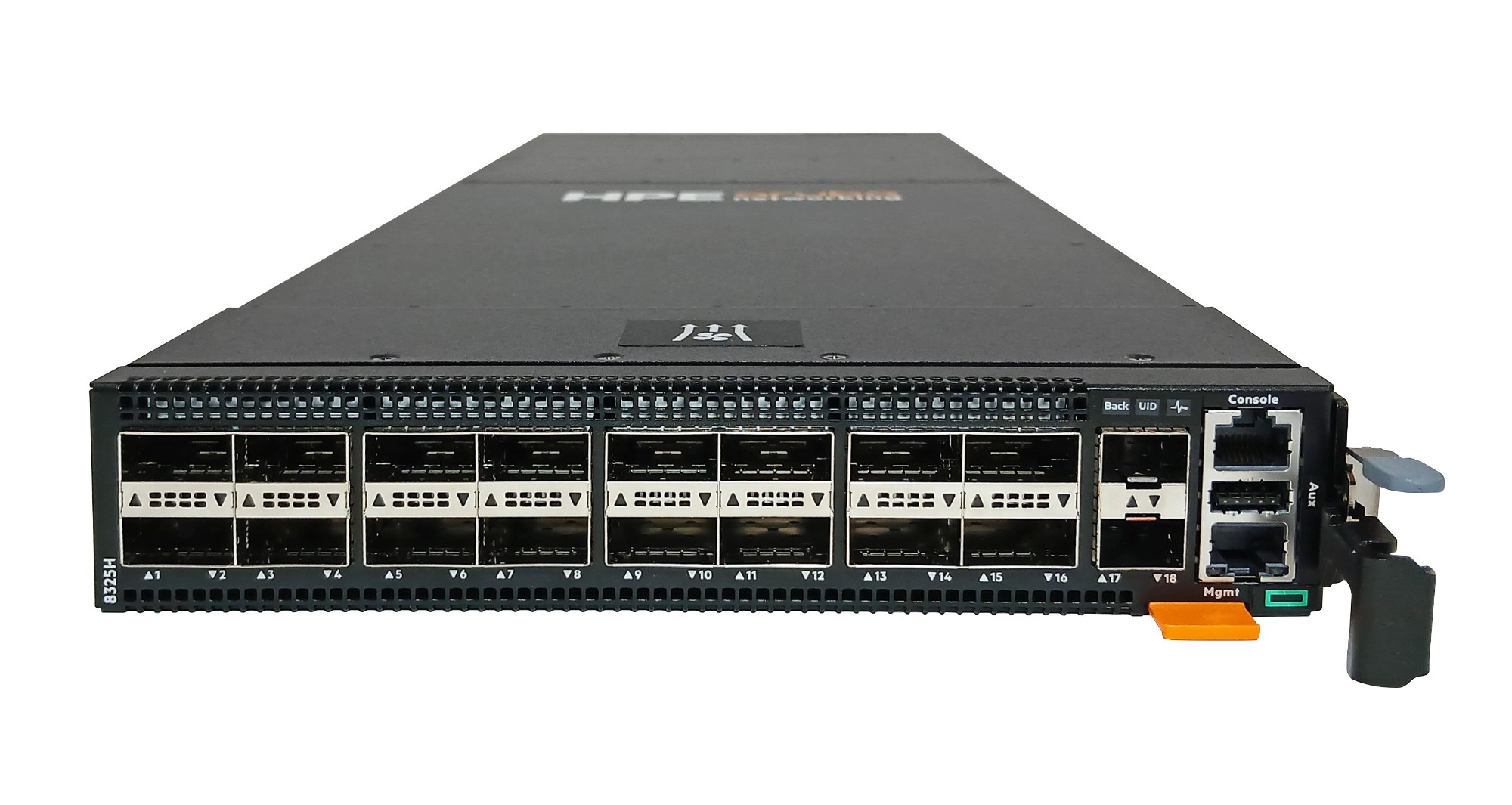

HPE S2T47A - ANW 8325H 16C FB 4Fs 2PS TAA Sw
Aruba Networking CX 8325H 16p QSFP28 40G/100G Front-to-Back 4xFan 2xPSU TAA Switch
Part#:
S2T47A
Manufacturer:
HPE
Excl. VAT: £28,514.00
Available to Backorder: contact for lead time
HPE ANW 8325H 16C FB 4Fs 2PS TAA Sw
More Information
Part#
S2T47A
EAN
0190017699653
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| QSFP28 ports quantity | 16 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4040 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
| 10G support | Yes |
| Virtual LAN features | Private VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 2000 Mpps |
| Packet buffer memory | 32 MB |
| Switching capacity | 4000 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4040 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v2c, SNMP v3 |
| Routing protocols | BGP, BGP4, OSPF, VRRP |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Number of fans | 4 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Internal memory | 32000 MB |
| Built-in processor | Yes |
| Packet buffer memory | 32 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 500 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Heat dissipation | 1705 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4040 |
| Virtual LAN features | Private VLAN |
| Weight & dimensions | |
| Depth | 438.4 mm |
| Technical details | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 32 MB |
| Internal memory | 32000 MB |
| Other features | |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
