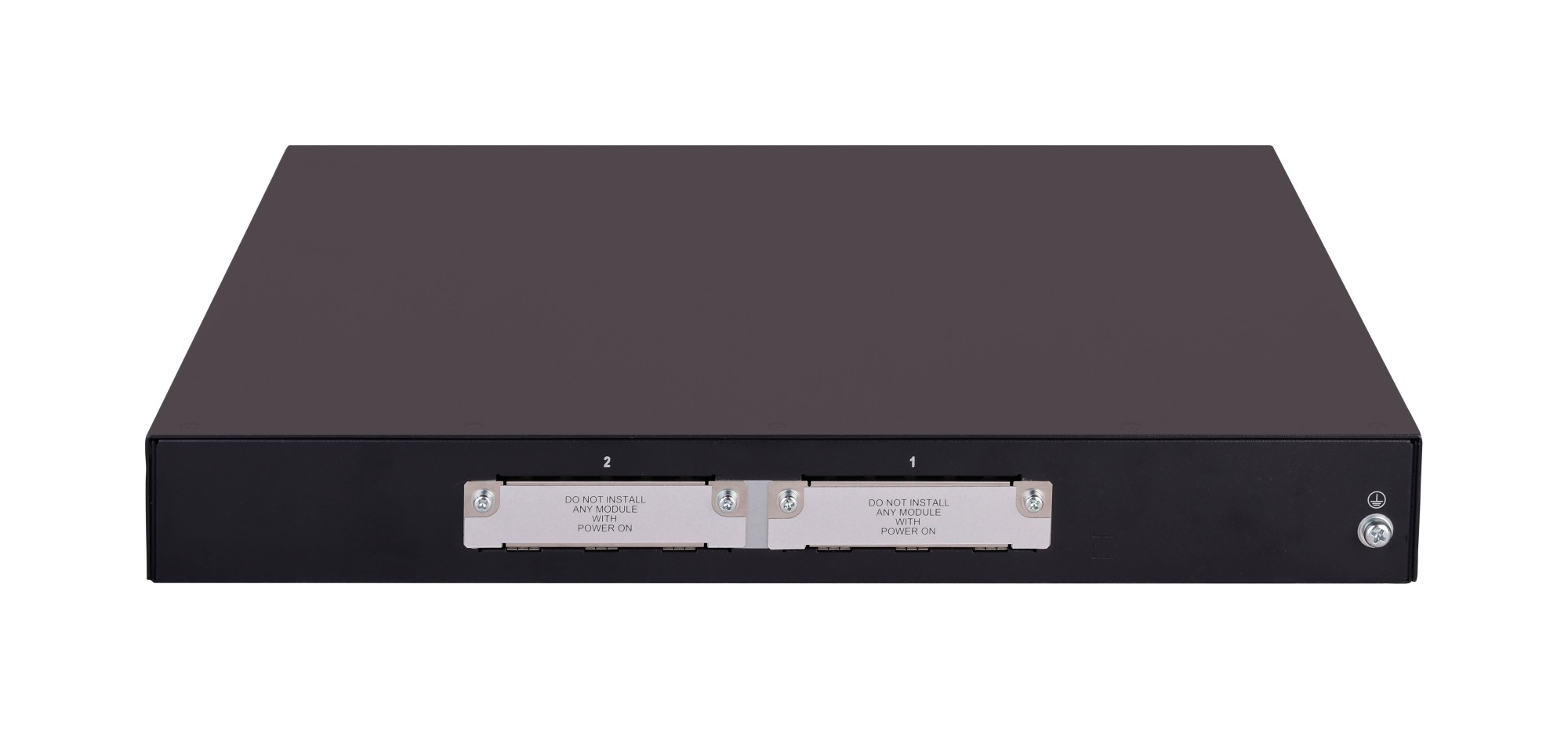

HPE Networking Comware Router AC MSR2003X
Networking Comware Router AC MSR2003X
Part#:
S0P10A
Manufacturer:
HPE
Excl. VAT: £1,554.95
RRP: £2,395.00
Save: 35%
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR2000 delivers high-performance, medium branch routing up to 4 Mpps in a cost-optimized modular form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying the management of your corporate WAN. With its convenient modular design, the HPE Networking Comware Router Series MSR2000 offers a choice of connectivity options to provide flexible, open standards and lasting investment protection with lower CAPEX and OPEX and is ideal for the medium-sized branches.
What is new supporting point:
Up to 4 Mpps forwarding; converged high-performance routing, switching, security, voice, mobility
Embedded security features with hardware-based encryption, firewall, NAT, and VPNs
Integrated 1/10 GbE WAN and LAN, fiber (SFP)
No additional licensing complexity; no cost for advanced features
Zero-touch solution, with single-pane-of-glass management
The new 2003X router supports 10GbE ports with Comware v9 OS
What is new supporting point:
Up to 4 Mpps forwarding; converged high-performance routing, switching, security, voice, mobility
Embedded security features with hardware-based encryption, firewall, NAT, and VPNs
Integrated 1/10 GbE WAN and LAN, fiber (SFP)
No additional licensing complexity; no cost for advanced features
Zero-touch solution, with single-pane-of-glass management
The new 2003X router supports 10GbE ports with Comware v9 OS
More Information
Part#
S0P10A
EAN
0190017640624
Specification
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Network | |
| MAC address table | 300000 entries |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Forwarding rate | 4 Mpps |
| Memory | |
| Flash memory | 256 MB |
| Internal memory | 1024 MB |
| Performance | |
| Internal memory type | DDR3 |
| Flash memory | 256 MB |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Heat dissipation | 78 BTU/h |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 8 |
| I/O ports | 3 fixed 10GbE SFP ports, 2 combo ports (SFP or RJ45) 8 RJ-45 autosensing 10/100/1000 LAN ports |
| Combo SFP ports quantity | 2 |
| Technical details | |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Wireless features | Depending on options and configuration |
| Weight (imperial) | 3.1 kg (6.83 lbs) |
| Heat dissipation | 78 BTU/h |
| Security | |
| MAC address table | 300000 entries |
| Features | |
| Internal memory type | DDR3 |
| Flash memory | 256 MB |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Heat dissipation | 78 BTU/h |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 54 W |
| Weight & dimensions | |
| Width | 360 mm |
| Depth | 300 mm |
| Height | 44.2 mm |
| Dimensions (W x D x H) (imperial) | 359.9 x 300 x 44.2 mm (14.2 x 11.8 x 1.74") |
| Other features | |
| Memory and processor | : RISC @ 800 MHz, 256 MB flash capacity, 1 GB DDR3 SDRAM |
| Performance management | IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB |
| Mounting | Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package |
| Wireless features | Depending on options and configuration |
| Weight (imperial) | 3.1 kg (6.83 lbs) |
| Dimensions (W x D x H) (imperial) | 359.9 x 300 x 44.2 mm (14.2 x 11.8 x 1.74") |
| System requirements | |
| Memory and processor | : RISC @ 800 MHz, 256 MB flash capacity, 1 GB DDR3 SDRAM |
Manufacturer
HPE
