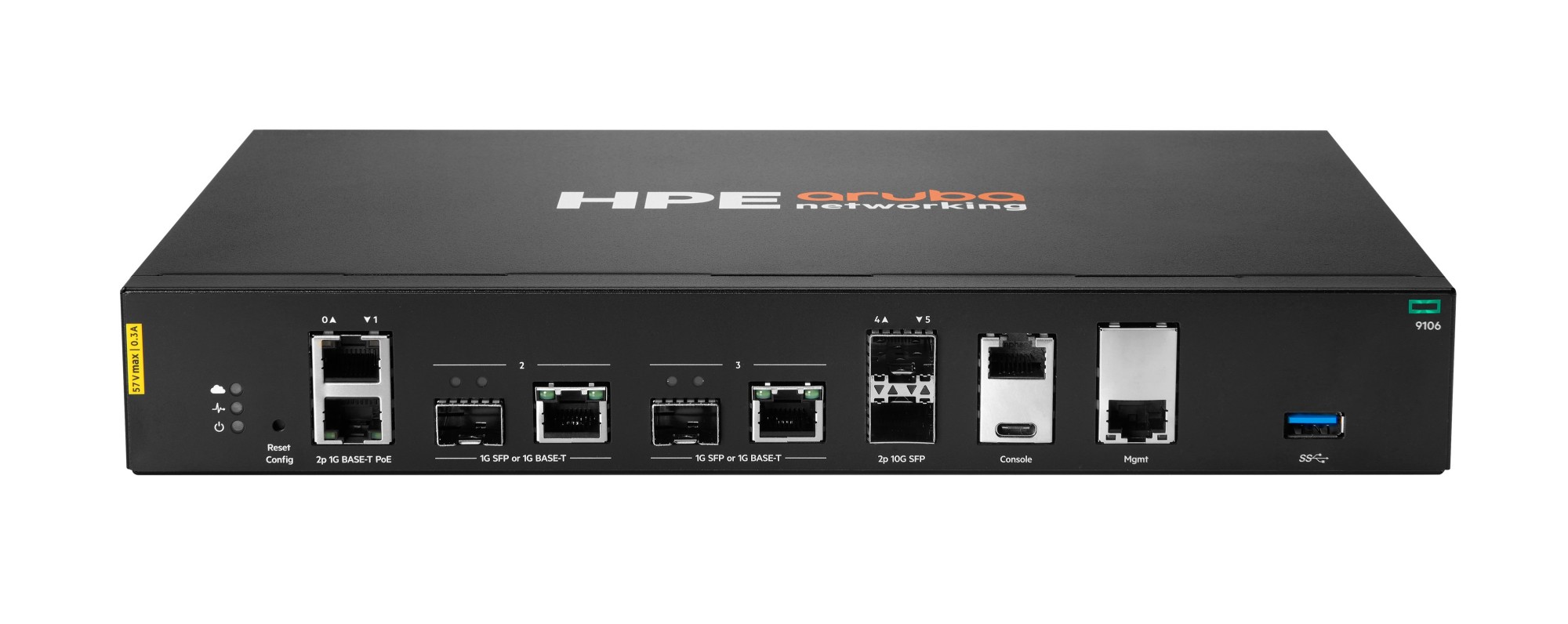

HPE S0B85A - ANW 9106 Hybrid Gateway

HPE Aruba Networking 9106 2x SFP+ 2x Combo 2x PoE Hybrid Gateway
Part#:
S0B85A
Manufacturer:
HPE
Excl. VAT: £4,727.47
RRP: £6,686.00
Save: 29%
Available to Backorder: contact for lead time
Scalable, secure, and intelligent cloud-based edge appliance
The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to extend enterprise services securely and seamlessly to large branch and small campus networks. This purpose-built high-performance edge appliance delivers Wi-Fi roaming, 24x7 reliability, and always-on connectivity – even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE ArubaOS 10 and HPE Aruba Networking Central, help drive efficient IT operations.

The HPE Aruba Networking 9100 Series Hybrid Gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and strengthens security with automated and unified role-based policy enforcement for users and IoT across LAN, WAN and SD-WAN. This cloud-based edge appliance takes advantage of HPE ArubaOS 10 distributed software architecture and HPE Aruba Networking Central for greater scalability, security, and AI-powered optimization. Importantly, it adds the versatility for network services to be provided on-premises, allowing the HPE Aruba Networking 9100 Series Hybrid Gateways to bring needed scalability to campus wireless gateway use cases or to optimize local routing and services at branch networks.

Ideal for large branch deployments and small campus networks, the HPE Aruba Networking 9100 Series Hybrid Gateway is cloudmanaged which reduces on-site IT requirements. It can operate in several modes: as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.
More Information
Part#
S0B85A
EAN
0190017624464
Specification
Design
LED indicatorsPower, Status
Mounting typeDesktop/Rack mounting
Rack capacity1U
Product colourBlack
Features
Mean time between failures (MTBF)236076 h
Performance
Control display unitNo
Mounting typeDesktop/Rack mounting
Rack capacity1U
Product colourBlack
Protocols
DHCP clientYes
Network
Ethernet LAN data rates1000 Mbit/s
Firewall throughput10000 Mbit/s
3DES/AES throughput10 Gbit/s
Security
MAC address filteringYes
Access Control List (ACL)Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Console portRJ-45
SFP+ ports quantity2
Combo SFP ports quantity2
Power
Output voltage54 V
Power over Ethernet (PoE)Yes
Input voltage100 - 240 V
Input frequency50 - 60 Hz
Heat dissipation290 BTU/h
Power consumption (max)150 W
Weight & dimensions
Weight2.31 kg
Width294.8 mm
Height43.7 mm
Depth201.1 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 95%
Technical details
Mean time between failures (MTBF)236076 h
Indication
LED indicatorsPower, Status
Display
Control display unitNo
Manufacturer
HPE
