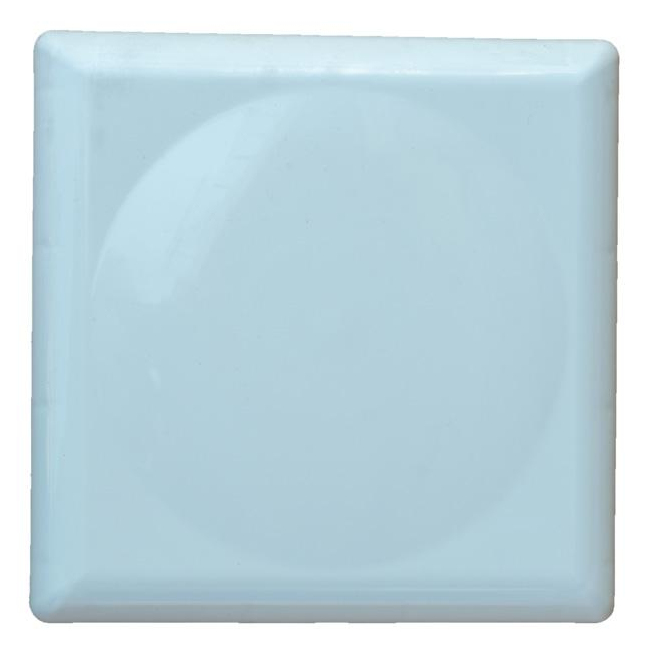

HPE S0A65A - ANT-4x4-D707 2.4/5G 7dBi Panel
Aruba Networking ANT-4x4-D707 Dual-Band 60x60deg 7dBi Panel V/H/+/-45 4 Element MIMO Outdoor Ant
Part#:
S0A65A
Manufacturer:
HPE
Excl. VAT: £464.16
RRP: £574.00
Save: 19%
Available to Backorder: contact for lead time
.
More Information
Part#
S0A65A
EAN
0190017618647
Specification
| Performance | |
|---|---|
| Antenna gain level (max) | 7.5 dBi |
| Frequency band | 2.4 - 2.5/4.9 - 6 GHz |
| Vertical beam width (5 GHz) | 56° |
| Vertical beam width (2.4 GHz) | 70° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 56° |
| Horizontal beam width (2.4 GHz) | 70° |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 7.5 dBi |
| Features | |
| Housing material | Aluminium, Plastic |
| Connector gender | Female |
| Antenna type | MIMO directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Polarization | Dual polarization |
| Mounting | Wall/Pole |
| Antenna connector type | N-type |
| Antenna gain level (max) | 7.5 dBi |
| Frequency band | 2.4 - 2.5/4.9 - 6 GHz |
| Vertical beam width (5 GHz) | 56° |
| Vertical beam width (2.4 GHz) | 70° |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 56° |
| Horizontal beam width (2.4 GHz) | 70° |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 7.5 dBi |
| Operational conditions | |
| Operating temperature (T-T) | -45 - 70 °C |
| Weight & dimensions | |
| Weight | 997.9 g |
| Width | 190 mm |
| Depth | 31 mm |
| Height | 190 mm |
| Technical details | |
| Antenna gain level (max) | 7.5 dBi |
| Frequency band | 2.4 - 2.5/4.9 - 6 GHz |
| Antenna type | MIMO directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Vertical beam width (5 GHz) | 56° |
| Vertical beam width (2.4 GHz) | 70° |
| Polarization | Dual polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 56° |
| Horizontal beam width (2.4 GHz) | 70° |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 7.5 dBi |
| Antenna connector type | N-type |
Manufacturer
HPE
