HPE R9W86A - ANW 8100-24XF4C FB3F2AC Bdl

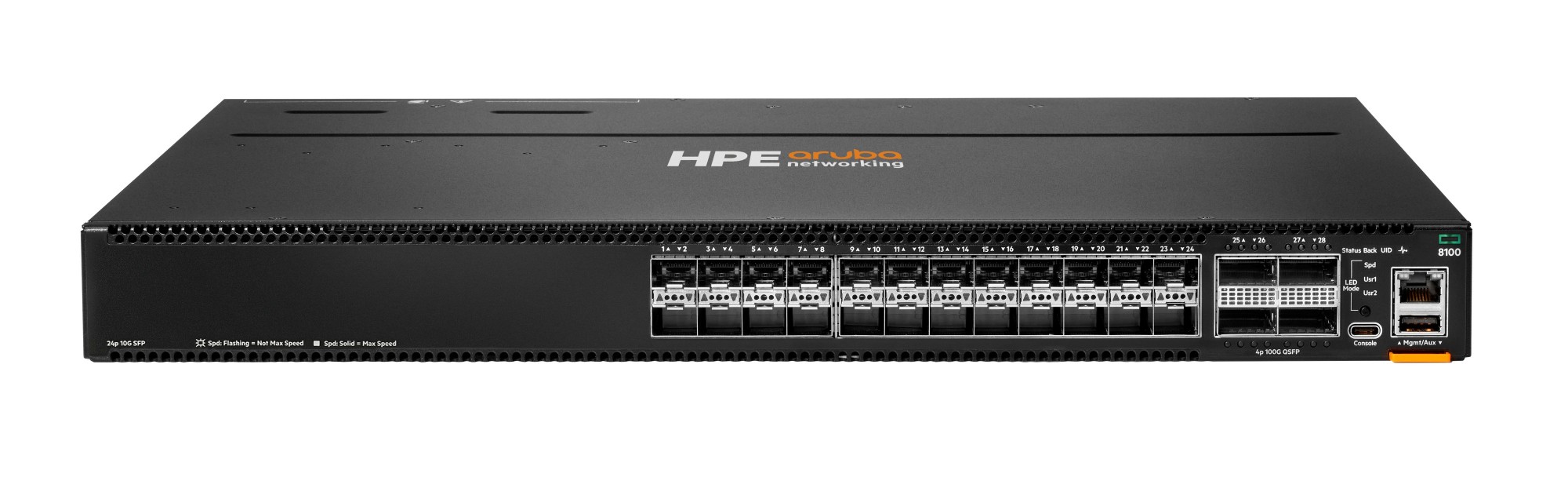

Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl
Part#:
R9W86A
Manufacturer:
HPE
Excl. VAT: £12,707.54
RRP: £19,254.00
Save: 34%
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT. The CX 8100 switches are based on HPE Aruba Networking CX Switch Operating System (AOS-CX) that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are available in every switch. The series includes industry-leading line rate ports with 1/10 GbE (SFP/SFP+) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10 Gbps and 4x25 Gbps break out from 40/100 G. These switches are great for customers needing 1 GbE/10 GbE with mix of fiber and copper ports.
What is new supporting point:
High-performance 1.76 Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
High availability with industry-leading VSX redundancy and redundant power supplies and fans.
HPE Aruba Networking CX Switch Operating System (AOS-CX) automation and programmability using built-in REST APIs and Python scripts
Intelligent monitoring and visibility delivered by the HPE Aruba Networking Networks Analytics Engine (NAE)
What is new supporting point:
High-performance 1.76 Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
High availability with industry-leading VSX redundancy and redundant power supplies and fans.
HPE Aruba Networking CX Switch Operating System (AOS-CX) automation and programmability using built-in REST APIs and Python scripts
Intelligent monitoring and visibility delivered by the HPE Aruba Networking Networks Analytics Engine (NAE)
More Information
Part#
R9W86A
EAN
0190017608204
Specification
Management features | |
---|---|
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Multicast support | Yes |
Switch layer | L3 |
Ports & interfaces | |
SFP+ module slots quantity | 24 |
Basic switching RJ-45 Ethernet ports quantity | 0 |
Basic switching RJ-45 Ethernet ports type | No |
Installed SFP modules quantity | 0 |
Installed SFP+ modules quantity | 0 |
Console port | RJ-45/USB Type-C |
QSFP28 ports quantity | 4 |
USB Type-A ports quantity | 1 |
Network | |
Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Spanning tree protocol | Yes |
Port mirroring | Yes |
Link aggregation | Yes |
Flow control support | Yes |
Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
10G support | Yes |
IGMP snooping | Yes |
Data transmission | |
Packet buffer memory | 32 MB |
MAC address table | 147456 entries |
Switching capacity | 1280 Gbit/s |
Jumbo frames support | Yes |
Security | |
SSH/SSL support | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Authentication type | RADIUS, TACACS+ |
DHCP features | DHCP relay, DHCP server |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | SNMPv2c, SNMPv3 |
Routing protocols | BGP, BGP4, OSPF, RIPng |
Design | |
Form factor | 1U |
Stackable | No |
Rack mounting | Yes |
Airflow direction | Front-to-back airflow |
Number of fans | 3 fan(s) |
Performance | |
Processor frequency | 1800 MHz |
Memory type | RAM / Flash |
Internal memory | 16384 MB |
Flash memory | 32768 MB |
Built-in processor | Yes |
Processor model | ARM Cortex-A72 |
Packet buffer memory | 32 MB |
Stackable | No |
Power | |
Power consumption (max) | 375 W |
Power supply included | Yes |
AC input voltage | 200 - 240 V |
AC input frequency | 47/63 Hz |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 2 |
Power source | AC |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 15 - 95% |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 15 - 95% |
Operating altitude | 0 - 3048 m |
Non-operating altitude | 0 - 4600 m |
Heat dissipation | 1275 BTU/h |
Virtual LAN features | |
VLAN support | Yes |
Weight & dimensions | |
Width | 442.5 mm |
Depth | 406.4 mm |
Height | 44 mm |
Weight | 8.16 kg |
Technical details | |
Form factor | 1U |
Stackable | No |
Processor frequency | 1800 MHz |
Rack mounting | Yes |
Built-in processor | Yes |
Memory | |
Packet buffer memory | 32 MB |
Memory type | RAM / Flash |
Internal memory | 16384 MB |
Flash memory | 32768 MB |
Other features | |
Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
Manufacturer
HPE
