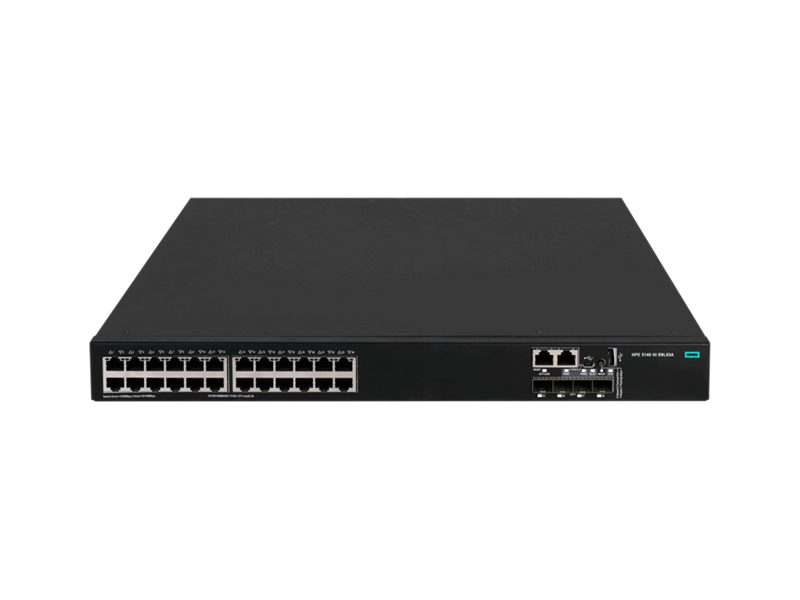

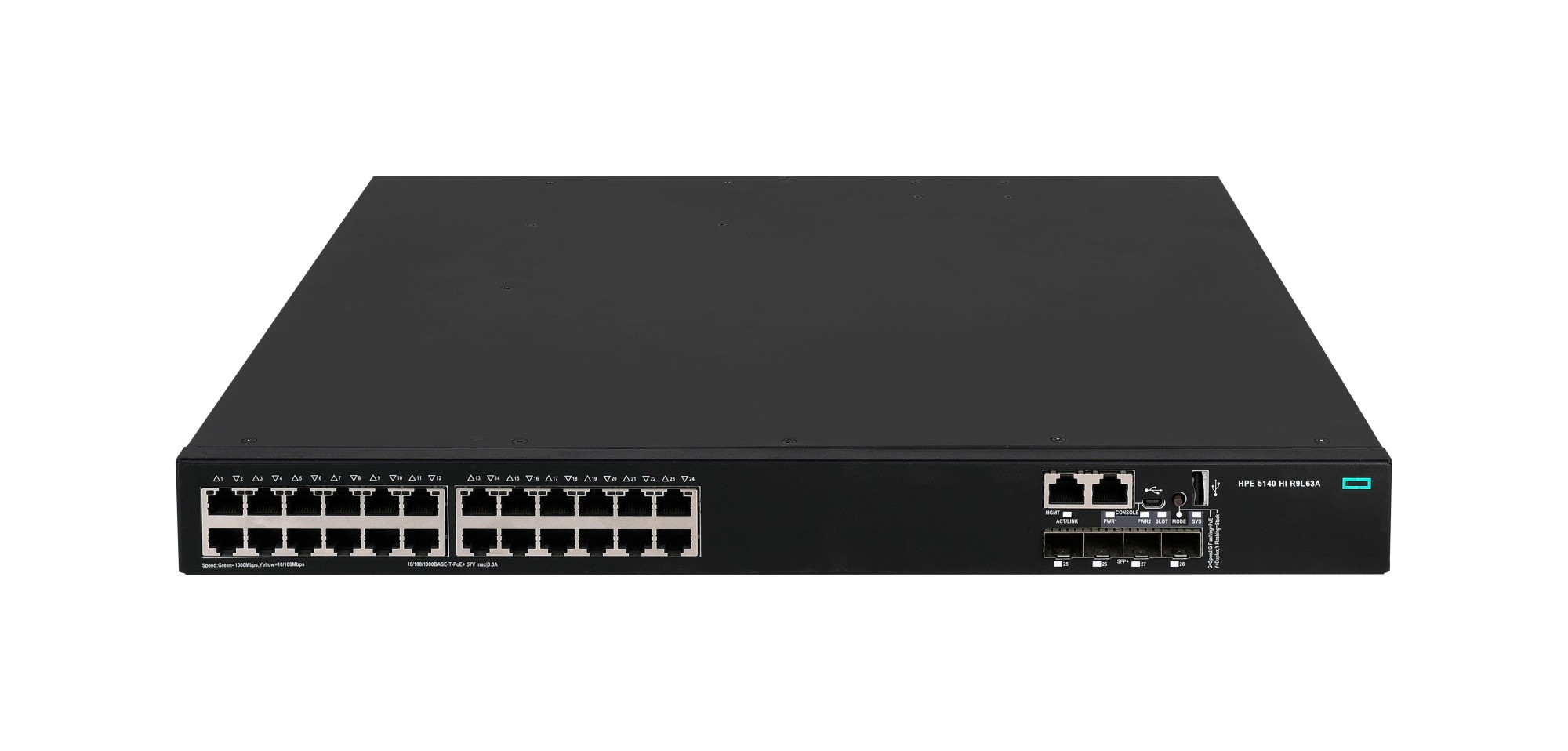

HPE R9L63A - 5140 24G PoE+ 4SFP+ 1-slot HI Sw
HPE Networking Comware Switch 24G PoE+ 4SFP+ 1-slot 5140HI
Part#:
R9L63A
Manufacturer:
HPE
Excl. VAT: £4,520.04
RRP: £6,413.00
Save: 30%
Available to Backorder: contact for lead time
The HPE FlexNetwork 5140 HI Switch Series delivers high availability and scalability at the access layer of medium and large enterprise campus networks. These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity with additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware-based MACsec for end-to-end encrypted security, and dual redundant power supplies with Energy Efficient Ethernet for improved power saving. This switch series also includes Smart MC at no additional cost and, when combined with Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.
More Information
Part#
R9L63A
EAN
0190017587882
Specification
Performance | |
---|---|
Packet buffer memory | 4 MB |
Stackable | Yes |
Internal memory | 2048 MB |
Flash memory | 512 MB |
Technical details | |
Form factor | 1U |
Stackable | Yes |
Rack mounting | Yes |
Management features | |
Switch type | Managed |
Ports & interfaces | |
SFP+ module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
USB 2.0 ports quantity | 1 |
Network | |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
10G support | Yes |
Data transmission | |
Throughput | 180 Mpps |
Packet buffer memory | 4 MB |
MAC address table | 32000 entries |
Switching capacity | 288 Gbit/s |
Memory | |
Packet buffer memory | 4 MB |
Internal memory | 2048 MB |
Flash memory | 512 MB |
Design | |
Form factor | 1U |
Stackable | Yes |
Rack mounting | Yes |
Power | |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 928 W |
DC input voltage | 48 - 60 V |
Power source | AC/DC |
Weight & dimensions | |
Width | 440 mm |
Depth | 460 mm |
Height | 43.7 mm |
Weight | 3.8 kg |
Manufacturer
HPE
