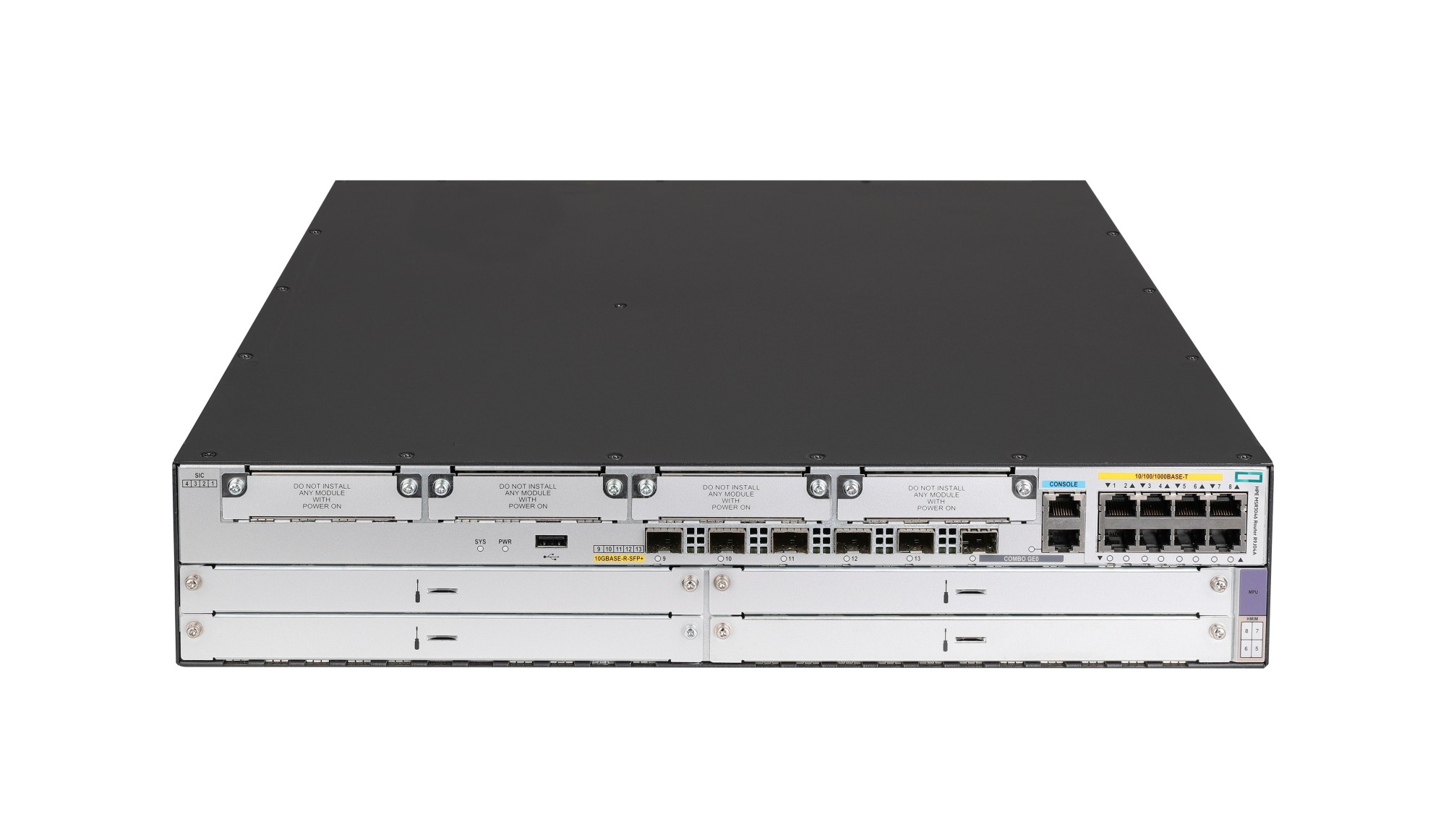

HPE Networking Comware Router MSR3046
Networking Comware Router MSR3046
Part#:
R9J04A
Manufacturer:
HPE
Excl. VAT: £11,431.00
RRP: £12,489.00
Save: 8%
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.
What is new supporting point:
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
High-density voice modules and channelized POS access to cover.
Additional features such as ADVPN and hierarchical QoS.
What is new supporting point:
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
High-density voice modules and channelized POS access to cover.
Additional features such as ADVPN and hierarchical QoS.
More Information
Part#
R9J04A
EAN
0190017584850
Specification
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Network | |
| MAC address table | 500000 entries |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Forwarding rate | 9 Mpps |
| Performance | |
| Heat dissipation | 218 BTU/h |
| WAN connection | |
| SFP WAN | Yes |
| Ports & interfaces | |
| I/O ports | 4 HMIM slots 4 SIC slots 9 RJ-45 10/100/1000 WAN ports (1 combo can be used as SFP WAN port) 5 fixed 10GE SFP+ ports |
| Smart Interface Card (SIC) slots quantity | 4 |
| WAN ports quantity | 9 |
| Technical details | |
| Rack mounting | Yes |
| Wireless features | 3G, 4G LTE, 4G Depending on options and configuration |
| Weight (imperial) | 11.3 kg (24.9 lbs) |
| Heat dissipation | 218 BTU/h |
| Warranty period | 1 year(s) |
| Security | |
| MAC address table | 500000 entries |
| Features | |
| Heat dissipation | 218 BTU/h |
| Design | |
| Rack mounting | Yes |
| Power | |
| AC input voltage | 220 - 240 V |
| Power consumption (max) | 100 W |
| Weight & dimensions | |
| Width | 89 mm |
| Depth | 439 mm |
| Height | 480 mm |
| Weight | 11.3 kg |
| Dimensions (W x D x H) (imperial) | 88.9 x 439.4 x 480.1 mm (3.5 x 17.3 x 18.9") |
| Other features | |
| Performance management | IMC - Intelligent Management Center; command-line interface; limited command-line interface; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; modem interface; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB |
| Mounting | Desktop or can be mounted in a EIA-standard 19 in. telco rack when used with the rack-mount kit in the package |
| Wireless features | 3G, 4G LTE, 4G Depending on options and configuration |
| Weight (imperial) | 11.3 kg (24.9 lbs) |
| Dimensions (W x D x H) (imperial) | 88.9 x 439.4 x 480.1 mm (3.5 x 17.3 x 18.9") |
Manufacturer
HPE
