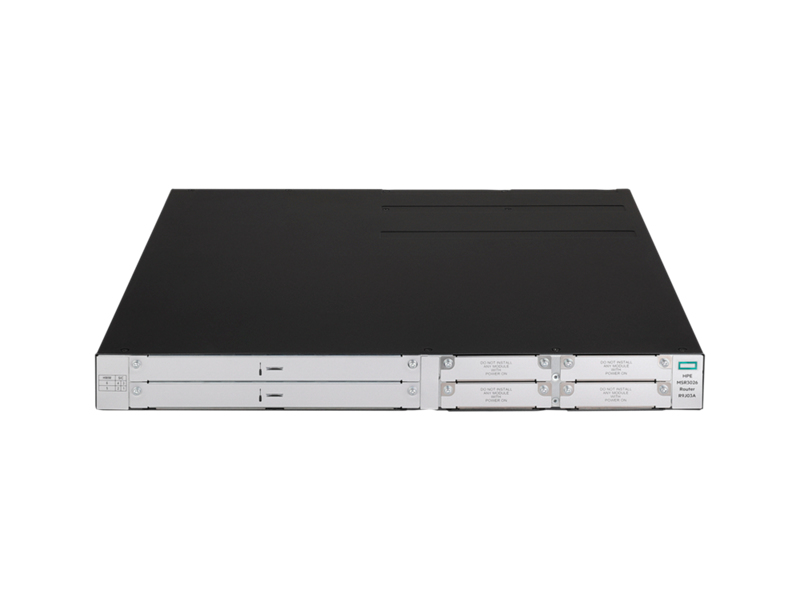

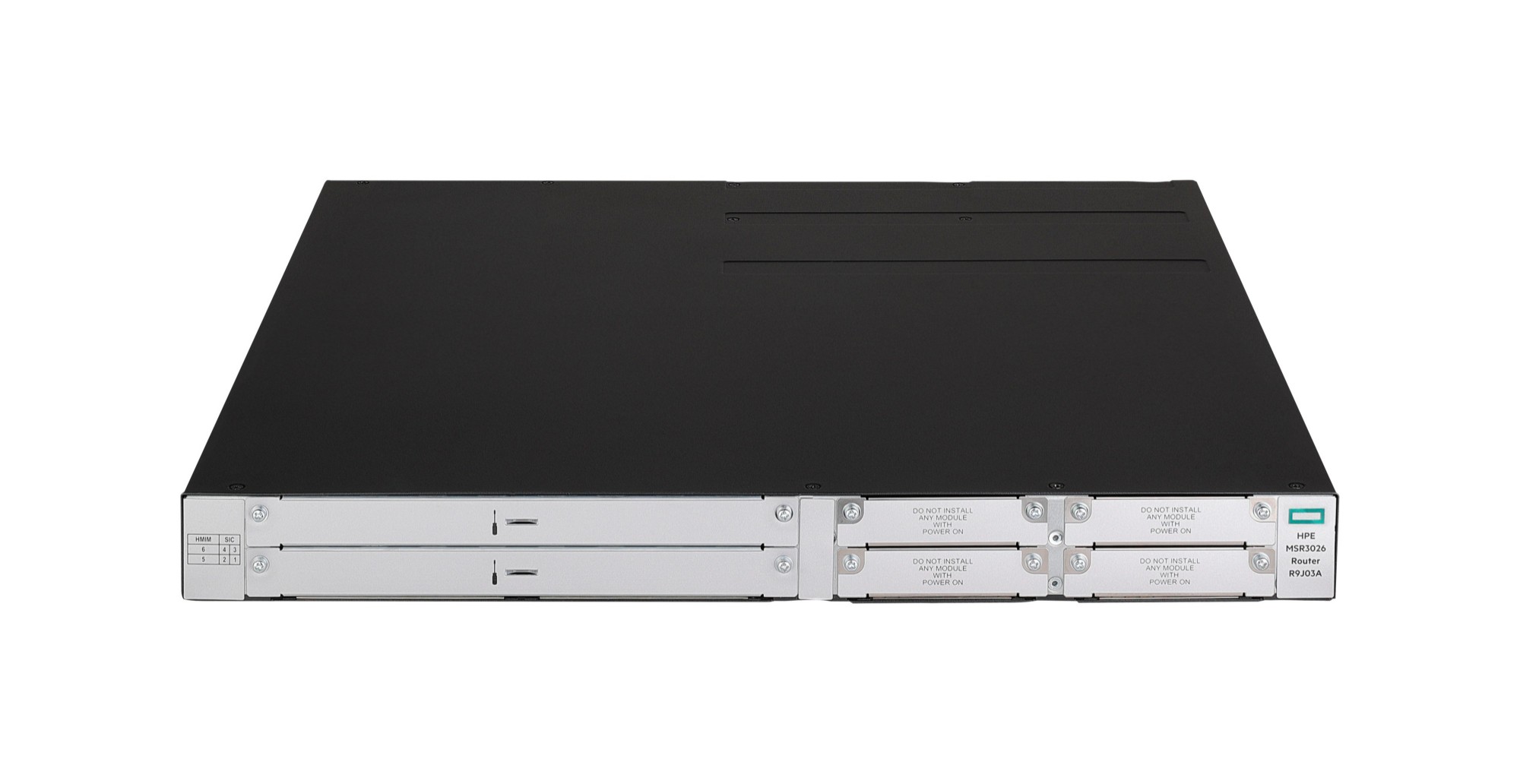

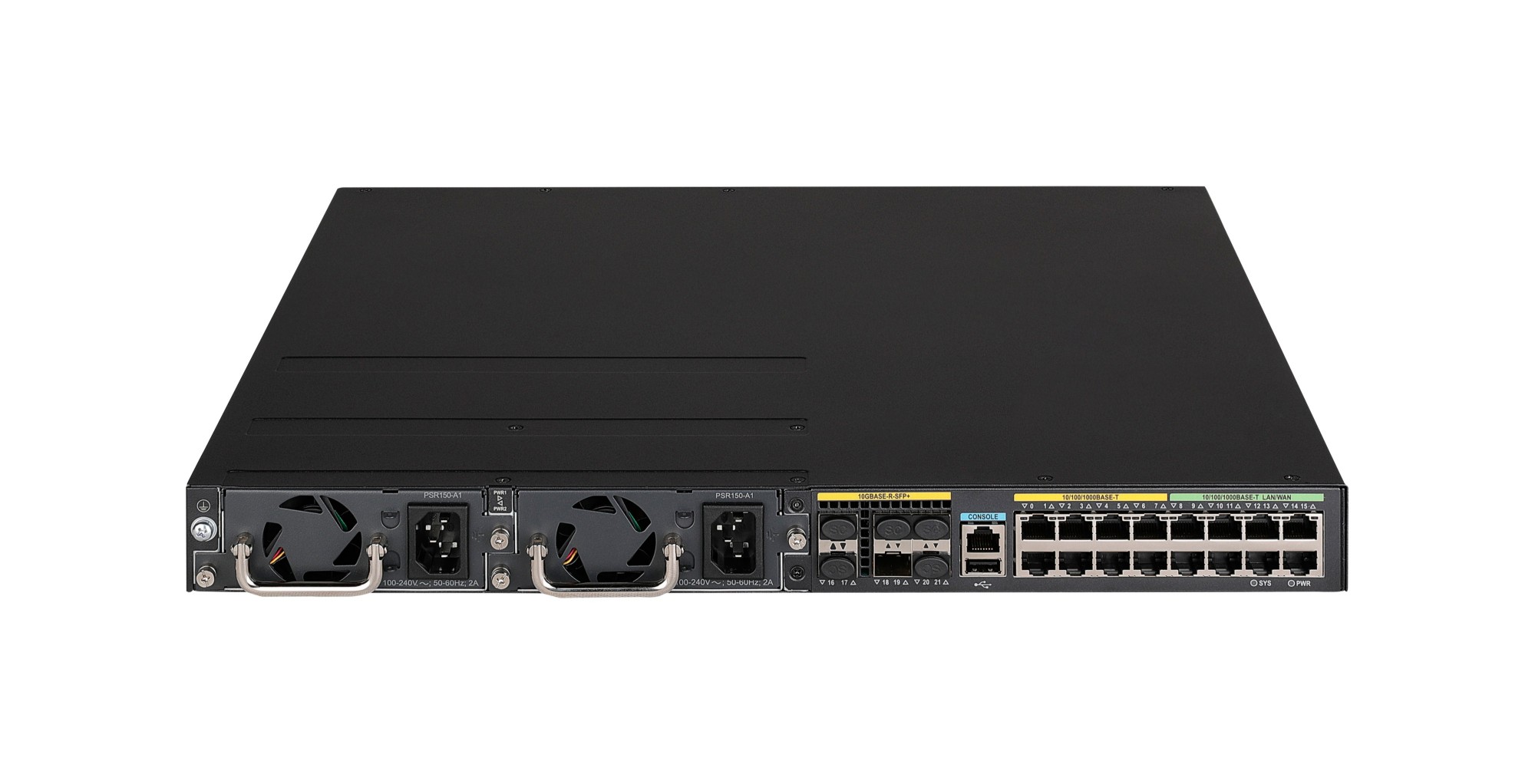

HPE R9J03A - MSR3026 Router

Networking Comware Router MSR3026
Part#:
R9J03A
Manufacturer:
HPE
Excl. VAT: £6,691.00
Available to Backorder: contact for lead time
The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.

What is new supporting point:
Additional features such as ADVPN and hierarchical QoS.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
High-density voice modules and channelized POS access to cover.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
More Information
Part#
R9J03A
EAN
0190017584843
Specification
Ethernet LAN features
Ethernet LAN data rates10000 Mbit/s
Network
MAC address table500000 entries
Traffic controlYes
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Ethernet LAN data rates10000 Mbit/s
Forwarding rate8 Mpps
VLAN supportYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
Memory
Flash memory1000 MB
Internal memory4096 MB
Performance
Internal memory typeDDR3
Traffic controlYes
Flash memory1000 MB
Internal memory4096 MB
Built-in processorYes
Processor frequency1800 MHz
Heat dissipation168 BTU/h
WAN connection
Ethernet WANYes
DSL WANNo
SIM card slotNo
3G/4G USB modem compatibilityYes
Mobile network
Mobile network generation4G
Management features
Web-based managementYes
Quality of Service (QoS) supportYes
Ports & interfaces
USB ports quantity1
USB version2.0
Ethernet LAN (RJ-45) ports8
Smart Interface Card (SIC) slots quantity4
WAN/Ethernet LAN ports quantity8
WAN ports quantity8
Protocols
DHCP serverYes
DHCP clientYes
Technical details
Rack mountingYes
Built-in processorYes
Processor frequency1800 MHz
Product colourBlack
Heat dissipation168 BTU/h
Security
MAC address table500000 entries
Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES
Features
Internal memory typeDDR3
Flash memory1000 MB
Internal memory4096 MB
Built-in processorYes
Processor frequency1800 MHz
Heat dissipation168 BTU/h
Design
Rack mountingYes
Product colourBlack
Rack capacity1U
Power
Power source typeAC
AC input voltage220 - 240 V
Power consumption (typical)100 W
Power consumption (max)100 W
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 90%
Weight & dimensions
Width43 mm
Depth439 mm
Height470 mm
Weight5.9 kg
Manufacturer
HPE
