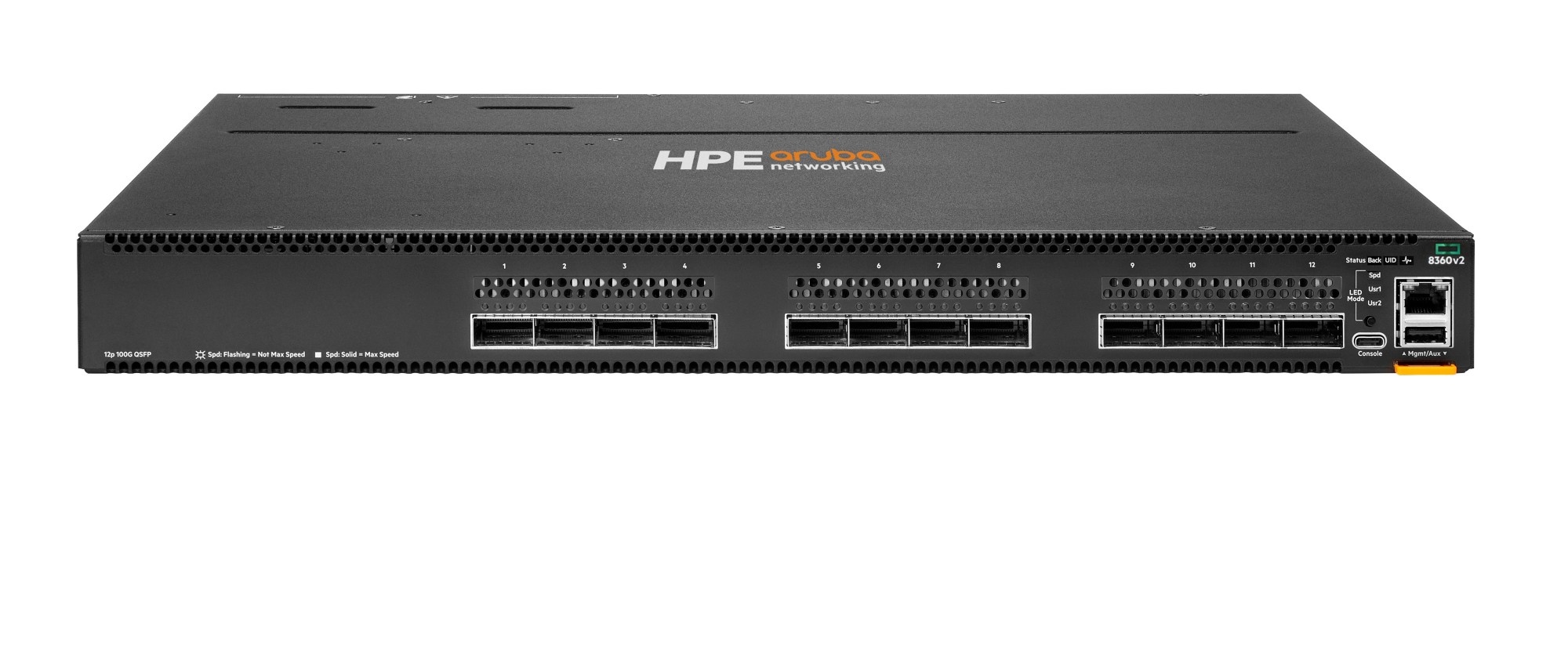

HPE Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle
Aruba Networking CX 8360-12C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle
Part#:
R9G14A
Manufacturer:
HPE
Excl. VAT: £27,491.00
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 8360 v2 Switch Series is designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. The switch series provides up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5/5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1/10GbE to faster 25GbE, or from 10/40GbE uplinks to 50/100GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100G ports on the CX 8360 48-port model.
What is new supporting point:
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
What is new supporting point:
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, EVPN, VXLAN and IPv6
The CX 8360 48 and 32 x 25G port models support low-density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
Intelligent monitoring and visibility are delivered by the HPE Aruba Networking CX Network Analytics Engine (NAE)
High performance fully distributed architecture provides up to 4.8 Tbps switching and 1786 Mpps for forwarding
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec (MACsec secured connectivity over untrusted domains)
More Information
Part#
R9G14A
EAN
0190017598031
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 12 |
| USB Type-A ports quantity | 1 |
| I/O ports | 12-port of 40/100GbE (QSFP+/ QSFP28) (optional 4 x 10/25G breakout cables supported) |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN |
| IGMP snooping | Yes |
| MLD entries | 7000 |
| IPv6 multicast entries | 7000 |
| IPv4 multicast entries | 7000 |
| Data transmission | |
| Throughput | 1309 Mpps |
| Packet buffer memory | 32 MB |
| MAC address table | 212992 entries |
| Switching capacity | 2400 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of VLANs | 4094 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| MLD entries | 7000 |
| IPv6 multicast entries | 7000 |
| IPv4 multicast entries | 7000 |
| Protocols | |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | BGP4, MPLS, OSPF, RIP, RIPng, RIP-2 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Number of fans | 3 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Packet buffer memory | 32 MB |
| Stackable | No |
| Power | |
| Power consumption (max) | 325 W |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47/63 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power consumption note | Maximum: 325W Idle: 120W |
| Power source | AC |
| Power supply note | 2 field-replaceable and hot-swappable power supplies depending on the model |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Performance management | RJ45 serial and USB-C console RJ45 Ethernet port USB-Type A |
| Memory and processor | CPU: 1.8 GHz 4-core 64-bit RAM: 16 GB Flash/Storage: 32 GB Packet Buffer: 32 MB |
| Fan | 3 field-replaceable and hot-swappable fans |
| I/O ports | 12-port of 40/100GbE (QSFP+/ QSFP28) (optional 4 x 10/25G breakout cables supported) |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4600 m |
| Heat dissipation | 1.28 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 44.2 mm |
| Height | 44 mm |
| Weight | 8.01 kg |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Compliance certificates | RoHS |
| Memory | |
| Packet buffer memory | 32 MB |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32000 MB |
| Certificates | |
| Compliance certificates | RoHS |
