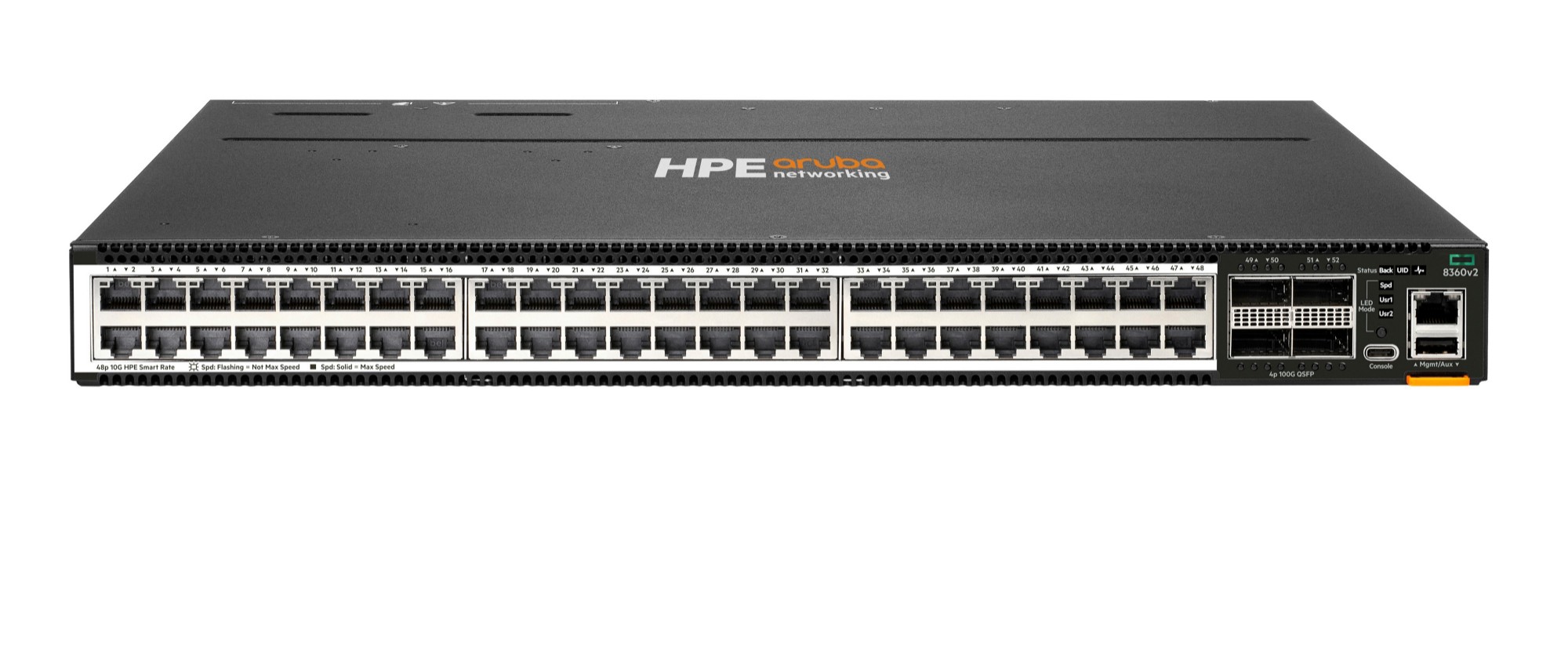

HPE R9G12A - Aruba 8360-48XT4Cv2 PrtPwr Bundle HPE
Aruba Networking CX 8360-48XT4C v2 Port-to-Power Airflow 3 Fans 2 PSU Attached Bundle
Part#:
R9G12A
Manufacturer:
HPE
Excl. VAT: £21,219.71
RRP: £30,665.00
Save: 31%
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 8360 v2 Switch Series are designed for next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. Provide up to 4.8 Tbps switching capacity, with line-rate Gigabit Ethernet interfaces including support for HPE Smart Rate (1/2.5, 5 Gbps), 10 Gbps, 25 Gbps, 40 Gbps, 50 Gbps, and 100 Gbps connectivity in a compact 1U form factor. These switches deliver a fantastic investment for customers wanting to migrate from older 1 GbE/10 GbE to faster 25 GbE, or from 10 GbE/40 GbE uplinks to 50/100 GbE ports. In addition, the 48 and 32 x 25G port CX 8360 models support low-density MACsec ports and enable secured connectivity at 10 GbE and 25 GbE over unsecured domains. MACsec is also supported on 2 high-speed 40/100 G ports on the CX 8360 48-port model.
What is new supporting point:
High-performance 4.8 Tbps and 2,678 Mpps. 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches. Addition of HPE Smart Rate (1/2.5/5/10 G) ports on the 836048XT4C
High availability with industry-leading VSX redundancy and redundant power supplies and fans.
Intelligent monitoring and visibility delivered by the HPE Aruba Networking Network Analytics Engine (NAE)
48-port 1/10/25 G with 4 MACsec, 6-port of 40/100 G with 2 MACsec. MACsec secured connectivity over untrusted domains.
What is new supporting point:
High-performance 4.8 Tbps and 2,678 Mpps. 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches. Addition of HPE Smart Rate (1/2.5/5/10 G) ports on the 836048XT4C
High availability with industry-leading VSX redundancy and redundant power supplies and fans.
Intelligent monitoring and visibility delivered by the HPE Aruba Networking Network Analytics Engine (NAE)
48-port 1/10/25 G with 4 MACsec, 6-port of 40/100 G with 2 MACsec. MACsec secured connectivity over untrusted domains.
More Information
Part#
R9G12A
EAN
0190017601052
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| QSFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+ |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
| 10G support | Yes |
| IGMP snooping | Yes |
| IGMP entries | 7000 |
| Data transmission | |
| Throughput | 2678 Mpps |
| Packet buffer memory | 32 MB |
| MAC address table | 32768 entries |
| Switching capacity | 1760 Gbit/s |
| Static route | Yes |
| Number of VLANs | 4094 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | SNMPv2, SNMPv3 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| IGMP entries | 7000 |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | RIP-2 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Number of fans | 3 fan(s) |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Packet buffer memory | 32 MB |
| Power | |
| Power consumption (max) | 500 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 1.706 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions | |
| Width | 442.5 mm |
| Depth | 44.2 mm |
| Height | 44 mm |
| Weight | 8.55 kg |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Optical fiber | |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+ |
| Technical details | |
| Form factor | 1U |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 32 MB |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32000 MB |
| Other features | |
| Ethernet LAN data rates | 1000,10000,40000,100000 Mbit/s |
Manufacturer
HPE
