HPE R9F66A - Aruba 8325-32C Prt2Pwr Bundle HPE

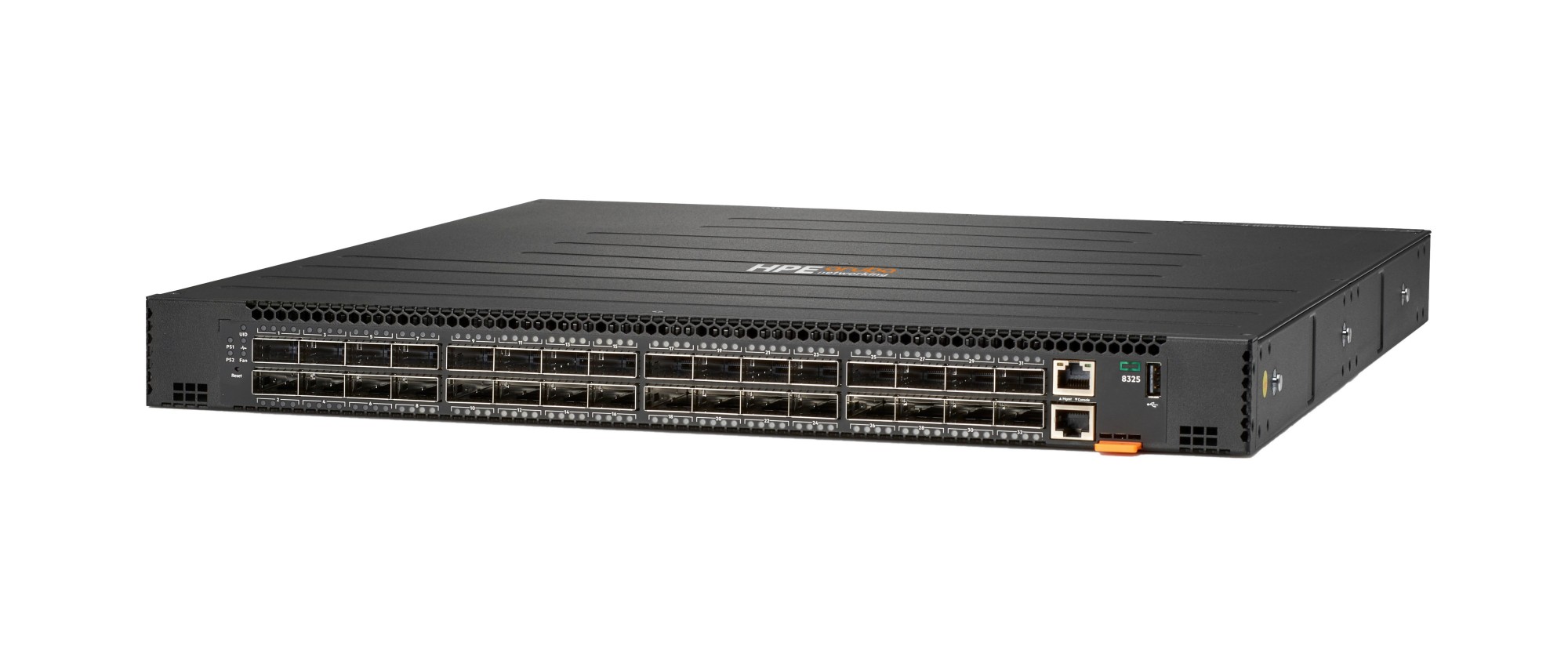

Aruba Networking CX 8325-32C Port-to-Power Airflow 6 Fans 2 Power Supply Units Bundle
Part#:
R9F66A
Manufacturer:
HPE
Excl. VAT: £40,296.00
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers an innovative approach to dealing with network demands in the mobile, cloud, and IoT era. CX 8325 Switch Series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX 8325 provides line rate 1GbE, 10GbE, 25GbE, and 40GbE in a compact 1U form factor. CX 8325P, delivers key solutions for providers in their 5G (Radio Access Network) and edge computing deployments. CX 8325H are high-performance 1/10/25/40/100G half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.
What is new supporting point:
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN.
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High availability with industry-leading VSX redundancy, and redundant power supplies and fans.
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock.
CX 8325H has two variations: • 2.16Tbps half-width fixed switch that supports 18 ports of 1/10/25 and 4 ports of 40/100GbE • 4Tbps half-width fixed switch that supports 16 ports of 40/100 GbE
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, and IPv6.
High-performance with 2,000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or End of Row (EoR).
What is new supporting point:
Intelligent monitoring, visibility, and remediation with HPE Aruba Networking Network Analytics Engine and dynamic VXLAN for deep segmentation in data center and campus networks with BGP-EVPN.
AOS-CX delivers automation and programmability using built-in REST APIs and Python scripts. High availability with industry-leading VSX redundancy, and redundant power supplies and fans.
CX 8325P-32C switch supports PTP (1588v2), Class C (G.8275.1/G.8275.2), Synchronous Ethernet (SyncE, G.8262.1), Global Navigation Satellite System (GNSS) to support Telco Boundary Clock.
CX 8325H has two variations: • 2.16Tbps half-width fixed switch that supports 18 ports of 1/10/25 and 4 ports of 40/100GbE • 4Tbps half-width fixed switch that supports 16 ports of 40/100 GbE
Compact 1U switches with 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity. Advanced layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, and IPv6.
High-performance with 2,000 Mpps. HPE Aruba Networking designed the data center for core/aggregation in the campus or top-of-rack (ToR) or End of Row (EoR).
More Information
Part#
R9F66A
EAN
0190017574042
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP+, QSFP28 |
| Console port | RJ-45/micro-USB |
| QSFP28 ports quantity | 32 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 40000,100000 Mbit/s |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Throughput | 1905 Mpps |
| Packet buffer memory | 32 MB |
| MAC address table | 98304 entries |
| Switching capacity | 6400 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP, BGP4, OSPF, OSPFv2, OSPFv3, RIPng |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Ventilation system | Front-to-back airflow |
| Airflow direction | Front-to-back airflow |
| Number of fans | 6 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Processor frequency | 2200 MHz |
| Memory type | SDRAM / Flash |
| Internal memory | 16000 MB |
| Flash memory | 8000 MB |
| Built-in processor | Yes |
| Packet buffer memory | 32 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 618 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| DC input voltage | 36 - 72 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4600 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 43.2 mm |
| Depth | 438.4 mm |
| Height | 515.1 mm |
| Weight | 9.5 kg |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Optical fiber | |
| Fiber optic connector | QSFP+, QSFP28 |
| Technical details | |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 2200 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 32 MB |
| Memory type | SDRAM / Flash |
| Internal memory | 16000 MB |
| Flash memory | 8000 MB |
| Other features | |
| Ethernet LAN data rates | 40000,100000 Mbit/s |
