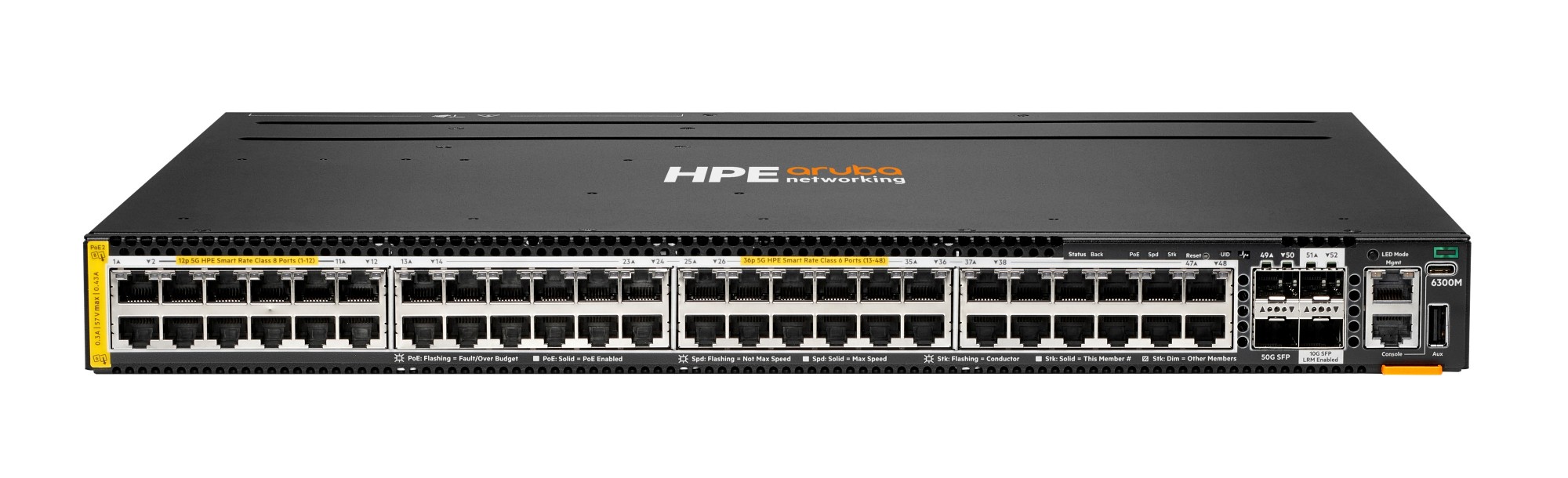

HPE R8S91A - Aruba 6300M 48SR5 CL8/CL6 2p50G 2p10G Sw
HPE Aruba Networking CX 6300M 12p CL8 PoE 36p CL6 PoE Smart Rate 1G/2.5G/5G 2p 50G 2p 10G Switch
Part#:
R8S91A
Manufacturer:
HPE
Excl. VAT: £12,791.66
RRP: £16,753.00
Save: 24%
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
What is new supporting point:
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
More Information
Part#
R8S91A
EAN
0190017538686
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Console port | USB |
| I/O ports | 48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Link aggregation | Yes |
| 10G support | Yes |
| Data transmission | |
| Throughput | 369 Mpps |
| Latency (1 Gbps) | 4.24 µs |
| Latency (10 Gbps) | 1.5 µs |
| Packet buffer memory | 16 MB |
| Switching capacity | 496 Gbit/s |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 2880 W |
| AC input voltage | 100 - 240 V |
| Power consumption note | With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W |
| Power supply note | 2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A and JL670A |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | 1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Memory and processor | Quad Core Arm Cortex™ A72 @ 1.8GHz, 8 GB DDR4, 32 GB eMMC 16 MB Shared Packet Buffer Memory |
| Fan | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. |
| Weight (imperial) | 6.71 kg (14.8 lbs) |
| I/O ports | 48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Dimensions (W x D x H) (imperial) | 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2") |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Width | 44 mm |
| Depth | 442 mm |
| Height | 385 mm |
| Weight | 6.71 kg |
| Weight (imperial) | 6.71 kg (14.8 lbs) |
| Dimensions (W x D x H) (imperial) | 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2") |
| Technical details | |
| Physical stacking (units) | 10 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 16 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
