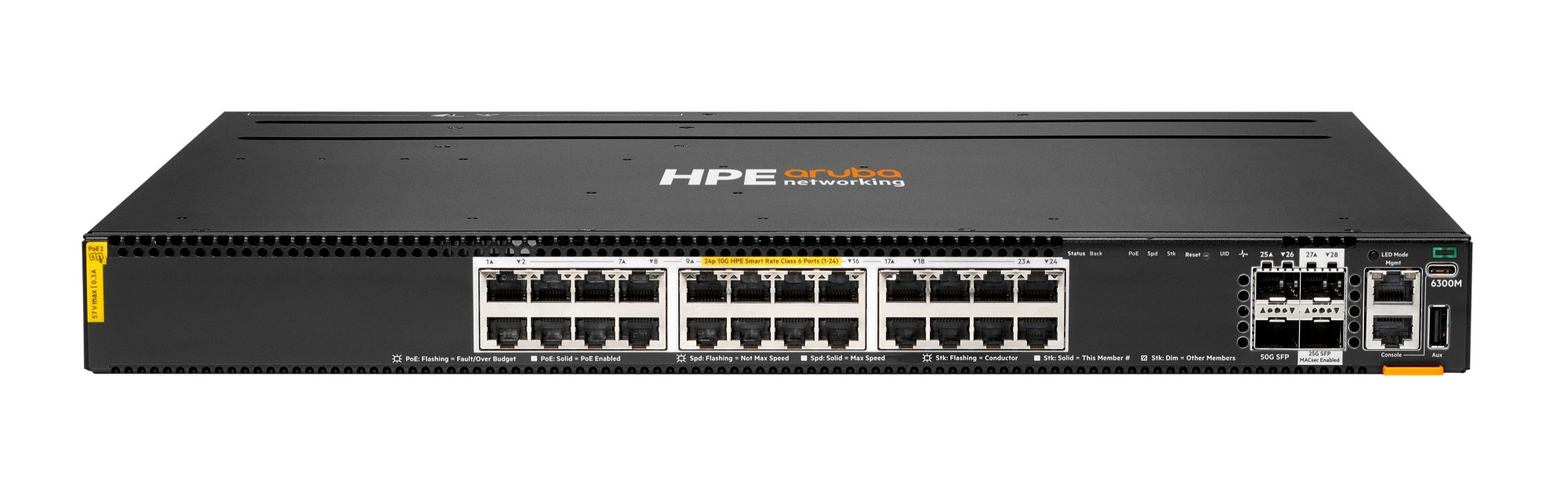

HPE R8S89A - Aruba 6300M 24SR CL6 PoE 2p50G 2p25G Sw
Upgrade your network with the HPE Aruba 6300m 24-port Managed Switch. High-performance, efficient, and versatile, it offers Smart Rate connectivity options and energy-saving technology. Maximize throughput, minimize power usage, and simplify installation for a seamless networking experience.
Versatile Connectivity
Enjoy the flexibility of supporting 10G, 25G, and 50G Ethernet technologies, ensuring high-speed data transfer for your network infrastructure.
Stackable Design
Scale your network effortlessly with a stackable design that allows you to stack up to 10 switches. Simplify management and expand your network as needed.
Power over Ethernet (PoE)
Power your devices with ease using a PoE budget of 2880W. Ideal for powering devices such as IP cameras and access points, reducing the need for separate power sources.
Robust Standards
Stay confident in your network's reliability and compatibility with compliance with a wide range of IEEE networking standards. Ensure seamless integration and consistent performance.
Cloud-Centric Design
Embrace a cloud-centric approach with a fully programmable OS and Aruba Network Analytics Engine. Gain advanced monitoring and troubleshooting capabilities for enhanced network management.
High-Performance
Experience non-blocking, high-speed performance powered by Aruba Gen7 ASIC architecture. Ensure that your network can handle demanding workloads with ease.
| Performance | |
|---|---|
| Packet buffer memory | 8 MB |
| Processor frequency | 1.8 MHz |
| Memory type | DDR4-SDRAM |
| Flash memory | 32 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Technical details | |
| Product colour | Black |
| Processor frequency | 1.8 MHz |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Data transmission | |
| Throughput | 660 Mpps |
| Latency (1 Gbps) | 4.24 µs |
| Latency (10 Gbps) | 1.5 µs |
| Packet buffer memory | 8 MB |
| Switching capacity | 880 Gbit/s |
| Memory | |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Flash memory | 32 MB |
| Design | |
| Product colour | Black |
| Power | |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 385 mm |
| Height | 44 mm |
| Weight | 6.71 kg |
