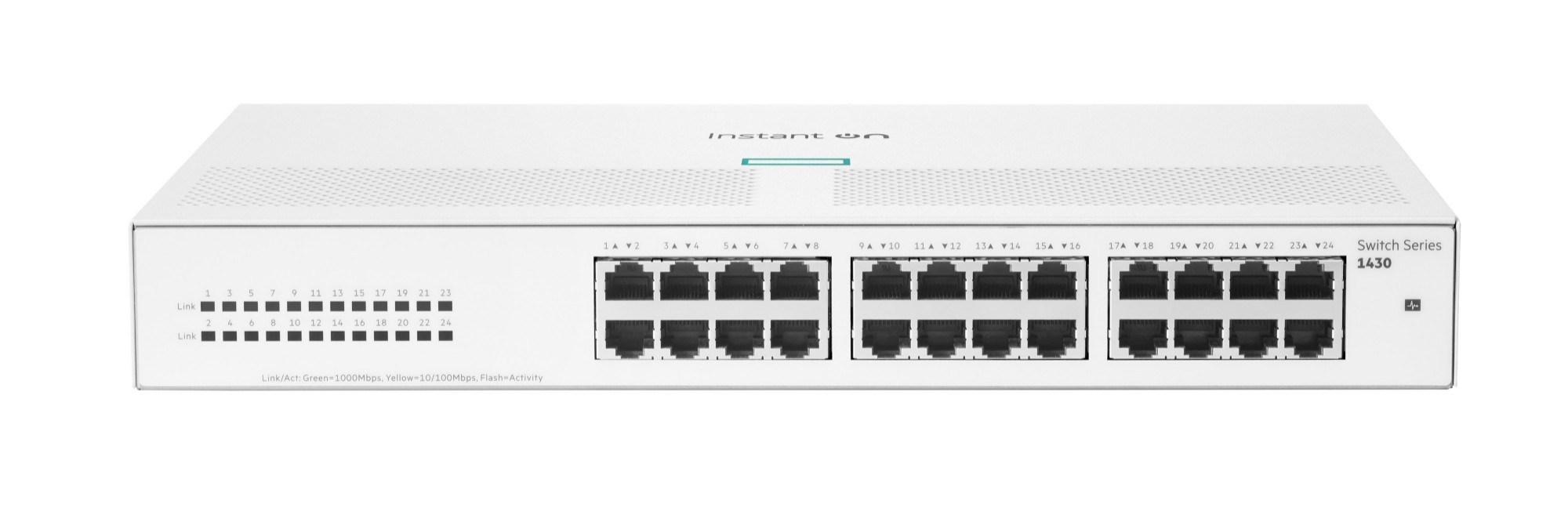

HPE R8R49A - Aruba IOn 1430 24G Sw
HPE Networking Instant On Switch 24p Gigabit 1430
Part#:
R8R49A
Manufacturer:
HPE
Excl. VAT: £159.00
Available to Backorder: contact for lead time
The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
What is new supporting point:
No configuration or management needed.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
What is new supporting point:
No configuration or management needed.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
More Information
Part#
R8R49A
EAN
0190017602424
Specification
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| I/O ports | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASET/100 BASE-TX: half or full; 1000 BASE-T: full only |
| Network | |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | No |
| Data transmission | |
| Throughput | 35.71 Mpps |
| Latency (10-100 Mbps) | 2.7 µs |
| Latency (1 Gbps) | 1.8 µs |
| Packet buffer memory | 2 MB |
| MAC address table | 8192 entries |
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 2 MB |
| Power | |
| Power consumption (max) | 11.7 W |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Number of power supply units | 1 |
| Power consumption note | Maximum: 11.7W Idle: 3.2W |
| Power source | AC |
| Power supply note | Internal Power Supply |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Performance management | Unmanaged |
| Memory and processor | 128Kb EEPROM; Packet buffer size: 2.0 Mb |
| Weight (imperial) | 1.91 kg (4.2 lbs) |
| I/O ports | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASET/100 BASE-TX: half or full; 1000 BASE-T: full only |
| Dimensions (W x D x H) (imperial) | 225 x 339.9 x 43.9 mm (8.86 x 13.4 x 1.73") |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 340 mm |
| Height | 44 mm |
| Weight | 1.91 kg |
| Weight (imperial) | 1.91 kg (4.2 lbs) |
| Dimensions (W x D x H) (imperial) | 225 x 339.9 x 43.9 mm (8.86 x 13.4 x 1.73") |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
