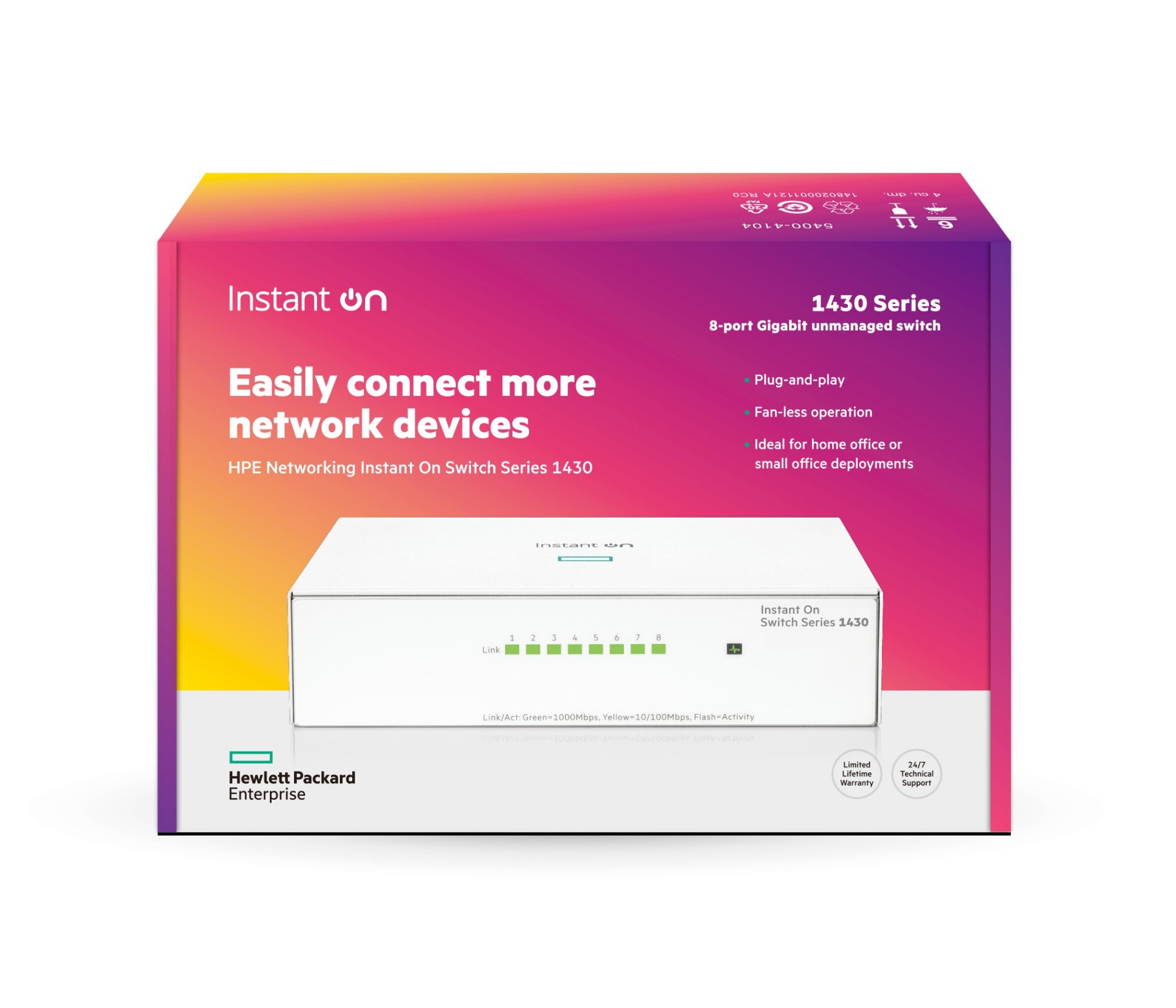

HPE R8R45A - Aruba IOn 1430 8G Sw

Details

The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

What is new supporting point:
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.
Plug-and-play with fully automated functions and zero ongoing maintenance.

Specification

More Information

Part#

R8R45A

EAN

5715328288997

Specification

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
I/O ports	8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only
Network
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	No
Data transmission
Jumbo frames	9216
Throughput	11.9 Mpps
Latency (10-100 Mbps)	2.7 µs
Latency (1 Gbps)	1.8 µs
Packet buffer memory	2 MB
MAC address table	8192 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Design
Product colour	White
Rack mounting	Yes
Power
Power consumption (max)	12 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power consumption note	Maximum: 12W Idle: 1.7W
Power source	AC
Power supply note	External Power Adapter
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Performance management	Unmanaged
Memory and processor	128Kb EEPROM; Packet buffer size: 2.0 Mb
Weight (imperial)	0.59 kg (1.3 lbs)
I/O ports	8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only
Dimensions (W x D x H) (imperial)	137.9 x 157 x 37.1 mm (5.43 x 6.18 x 1.46")
Ethernet LAN data rates	10,100,1000 Mbit/s
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	138 mm
Depth	157 mm
Height	37 mm
Weight	590 g
Weight (imperial)	0.59 kg (1.3 lbs)
Dimensions (W x D x H) (imperial)	137.9 x 157 x 37.1 mm (5.43 x 6.18 x 1.46")
Performance
Packet buffer memory	2 MB
Technical details
Product colour	White
Rack mounting	Yes
Memory
Packet buffer memory	2 MB

Manufacturer

HPE

HPE R8R45A - Aruba IOn 1430 8G Sw
