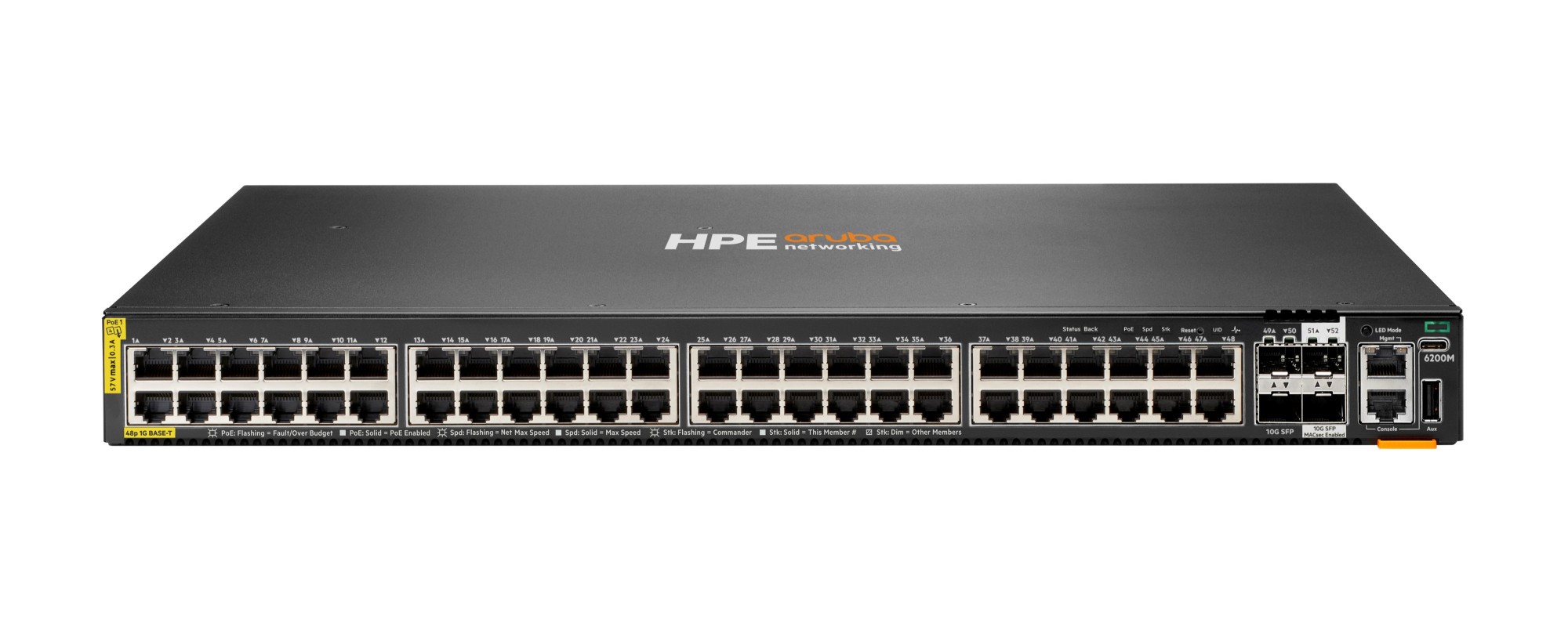

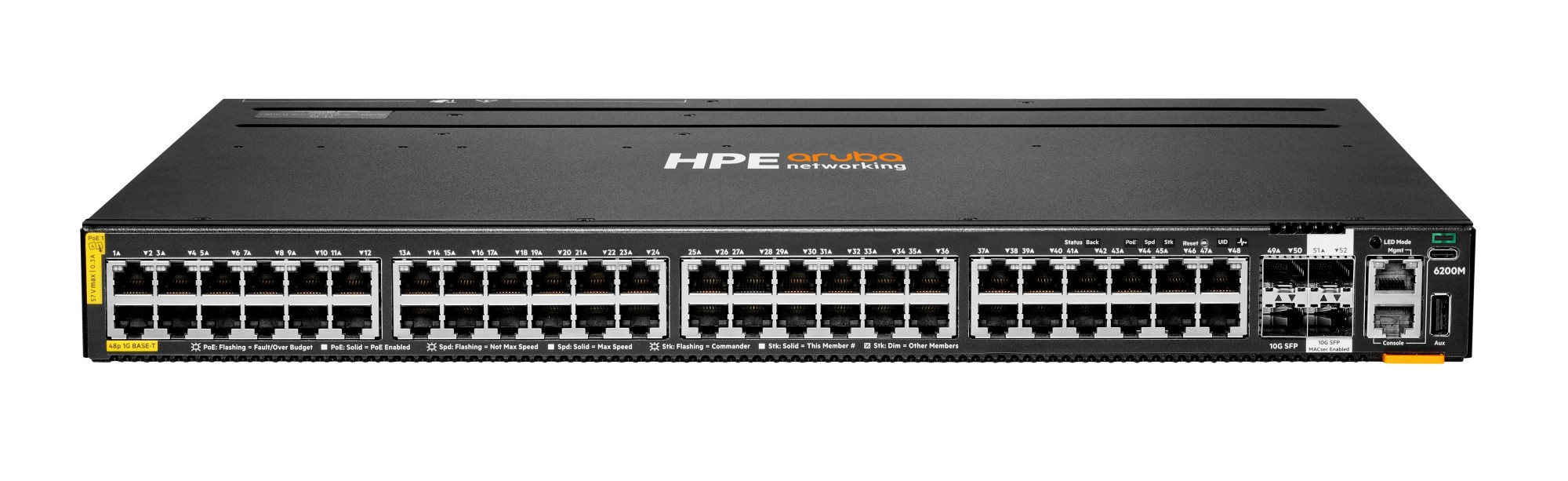

HPE R8Q70A - Aruba 6200M 48G CL4 PoE 4SFP+ Sw
The HP Enterprise Aruba 6200M is a versatile and powerful network switch designed for demanding enterprise environments. With 48 Gigabit Ethernet ports supporting PoE (Power over Ethernet) Class 4, it provides robust connectivity for a wide range of devices, including IP cameras, access points, and VoIP phones. Additionally, the switch features 4 SFP+ ports for high-speed fiber uplink connections, enhancing network performance and scalability. Managed capabilities and Layer 3 routing functionality ensure efficient traffic management and network optimization, making the Aruba 6200M an ideal choice for businesses seeking reliable and flexible networking solutions.
Enterprise-class connectivity
With support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing, his switch offers advanced networking capabilities, including Access Control Lists (ACLs) for security, Quality of Service (QoS) for prioritizing network traffic, and support for routing protocols like OSPF, ensuring efficient data routing and management.
Scalability with 8 member VSF stacking
The switch supports Virtual Switching Framework (VSF) stacking, allowing up to 8 units to be interconnected for increased scalability and simplified management of network resources.
Intelligent monitoring and visibility via Aruba Network Analytics Engine
With the Aruba Network Analytics Engine, users gain insight into network performance, traffic patterns, and potential issues, facilitating proactive management and troubleshooting.
Aruba Dynamic Segmentation
Dynamic Segmentation enhances network security by segmenting user and IoT devices into separate virtual networks, ensuring better control and protection against unauthorized access or threats.
Flexible, modular switch models
The switch's modular design allows for hot-swappable components such as power supplies and fans, ensuring continuous operation and resilience against hardware failures without downtime.
Performance | |
---|---|
Packet buffer memory | 8 MB |
Stackable | Yes |
Processor frequency | 1.8 MHz |
Memory type | DDR4-SDRAM |
Internal memory | 8192 MB |
Flash memory | 16000 MB |
Built-in processor | Yes |
Processor model | ARM Cortex-A72 |
Technical details | |
Stackable | Yes |
Processor frequency | 1.8 MHz |
Rack mounting | Yes |
Built-in processor | Yes |
Management features | |
Switch type | Managed |
Switch layer | L3 |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Installed SFP modules quantity | 4 |
Console port | RJ-45/USB Type-C |
Network | |
Networking standards | IEEE 802.3af, IEEE 802.3at |
10G support | Yes |
Data transmission | |
Throughput | 130.9 Mpps |
Packet buffer memory | 8 MB |
MAC address table | 32000 entries |
Switching capacity | 176 Gbit/s |
Memory | |
Packet buffer memory | 8 MB |
Memory type | DDR4-SDRAM |
Internal memory | 8192 MB |
Flash memory | 16000 MB |
Design | |
Stackable | Yes |
Rack mounting | Yes |
Power | |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 76 W |
Power source | AC |
Power over Ethernet (PoE) | |
Total Power over Ethernet (PoE) budget | 1440 W |
Power over Ethernet (PoE) | Yes |
Weight & dimensions | |
Width | 442.5 mm |
Depth | 383.8 mm |
Height | 43.9 mm |
Weight | 6.01 kg |
