HPE R8Q69A - Aruba 6200M 48G 4SFP+ Sw

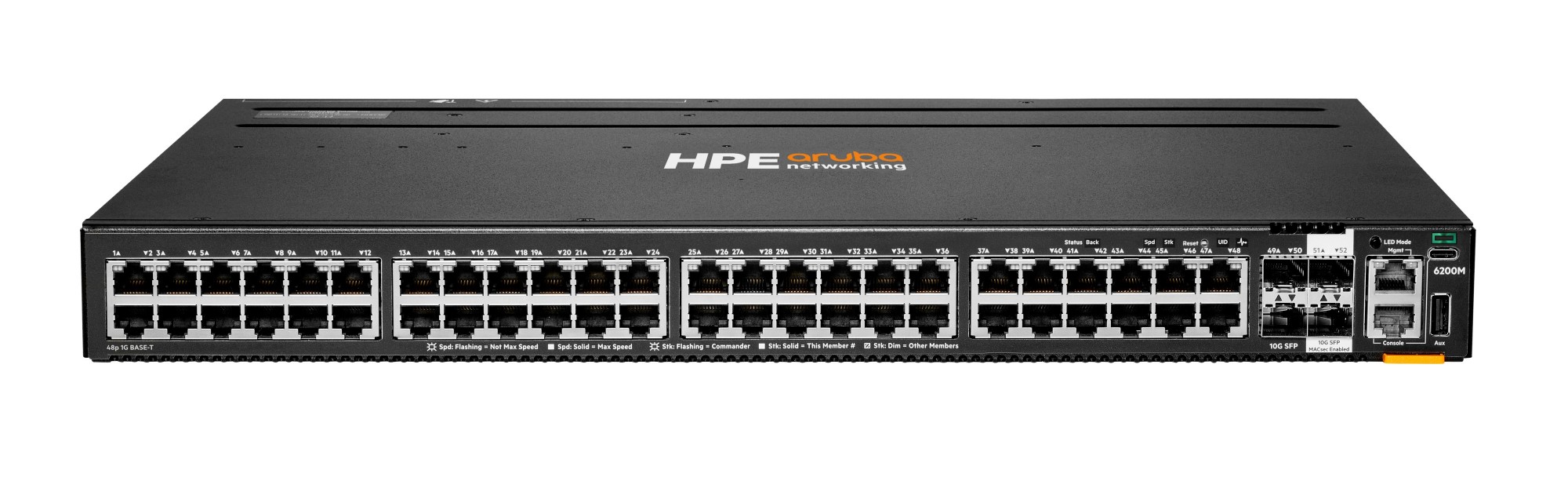

HPE Aruba Networking CX 6200M 48G 4SFP+ Switch
Part#:
R8Q69A
Manufacturer:
HPE
Excl. VAT: £3,321.37
RRP: £7,498.00
Save: 56%
Available to Backorder: contact for lead time
The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
What is new supporting point:
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
More Information
Part#
R8Q69A
EAN
0190017535029
Specification
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| USB Type-A ports quantity | 1 |
| Copper ethernet cabling technology | 1000BASE-T |
| I/O ports | 48 x 10/100/1000BASE-T ports 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Network | |
| Copper ethernet cabling technology | 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | Yes |
| Data transmission | |
| Throughput | 130.9 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Switching capacity | 176 Gbit/s |
| Design | |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Stackable | Yes |
| Power | |
| AC input voltage | 200 - 240 V |
| Power consumption (typical) | 75 W |
| Input voltage | 230 V |
| Power consumption note | 75W at 230 VAC |
| Power source | AC |
| Power supply note | 2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supports JL085A PSU |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Latency | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Memory and processor | CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| Fan | Fixed fans |
| Weight (imperial) | 6.01 kg (13.2 lbs) |
| I/O ports | 48 x 10/100/1000BASE-T ports 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1") |
| Input voltage | 230 V |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 383.8 mm |
| Weight | 6.01 kg |
| Weight (imperial) | 6.01 kg (13.2 lbs) |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 383.8 mm (1.73 x 17.4 x 15.1") |
| Technical details | |
| Physical stacking (units) | 8 |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
