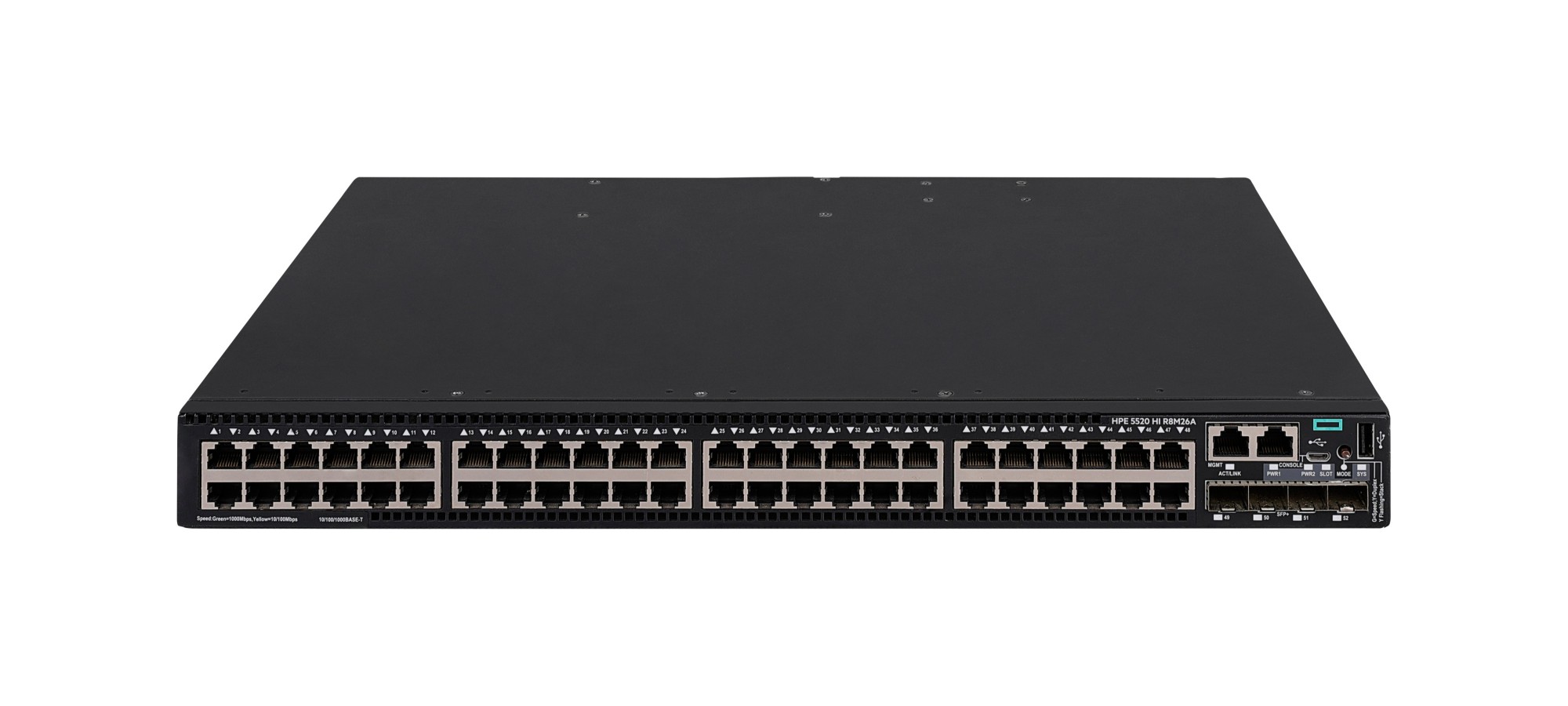

HPE Networking Comware Switch 48G 10/100/1000BASE-T 4 10G/1G BASE-X 5520HI
Networking Comware Switch 48G 10/100/1000BASE-T 4 10G/1G BASE-X 5520HI
Part#:
R8M26A
Manufacturer:
HPE
Excl. VAT: £6,799.81
RRP: £11,205.00
Save: 39%
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 5520 HI delivers superior performance, high availability and manageability with advanced features at the access and aggregation layer of medium and large enterprise networks. These switches deliver faster performance and advanced L3 features with support for larger ARP/MAC tables and Longest Prefix Match (LPM). VXLAN and EVPN enable greater scalability. Support for Virtual Router Redundancy Protocol (VRRP), Equal-Cost Multipath (ECMP) and Bi-directional Forwarding Detection (BFD) provide resiliency. Intelligent Resilient framework (IRF) ensures high availability. Support for IPv4/IPv6, OpenFlow, and MPLS/VPLS features for investment protection with an easy transition from IPv4 to IPv6 networks. These switches also include SmartMC at no additional cost, and when combined with Intelligent Management Center (IMC), it provides both embedded network management and enhanced network visibility.
What is new supporting point:
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about 'made in China' products.
Larger MAC tables (up to 64K), Longest Prefix Match (LPM), switching capacity of up to 336 Gbps and throughput of upto 180 Mpps enable faster switching.
Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) enable both isolation and greater scalability of L2/L3 overlay services and multicast.
Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.
What is new supporting point:
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about 'made in China' products.
Larger MAC tables (up to 64K), Longest Prefix Match (LPM), switching capacity of up to 336 Gbps and throughput of upto 180 Mpps enable faster switching.
Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) enable both isolation and greater scalability of L2/L3 overlay services and multicast.
Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.
More Information
Part#
R8M26A
EAN
0190017526089
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP+ modules quantity | 4 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| I/O ports | (48) RJ-45 autosensing 10/100/1000 BASE-T ports; Duplex: Ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot. |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| 10G support | Yes |
| Data transmission | |
| Throughput | 180 Mpps |
| Switching capacity | 336 Gbit/s |
| Design | |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 9 |
| Memory type | SDRAM / Flash |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 150 W |
| AC input voltage | 90 - 264 V |
| DC input voltage | 36 - 72 V |
| Power consumption note | 150W (maximum) |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Latency | 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs |
| Performance management | IMC - Intelligent Management Center; Command-line interface; SNMP manager |
| Memory and processor | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
| I/O ports | (48) RJ-45 autosensing 10/100/1000 BASE-T ports; Duplex: Ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot. |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 360 mm |
| Height | 43.6 mm |
| Weight | 7 kg |
| Technical details | |
| Physical stacking (units) | 9 |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Memory type | SDRAM / Flash |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
Manufacturer
HPE
