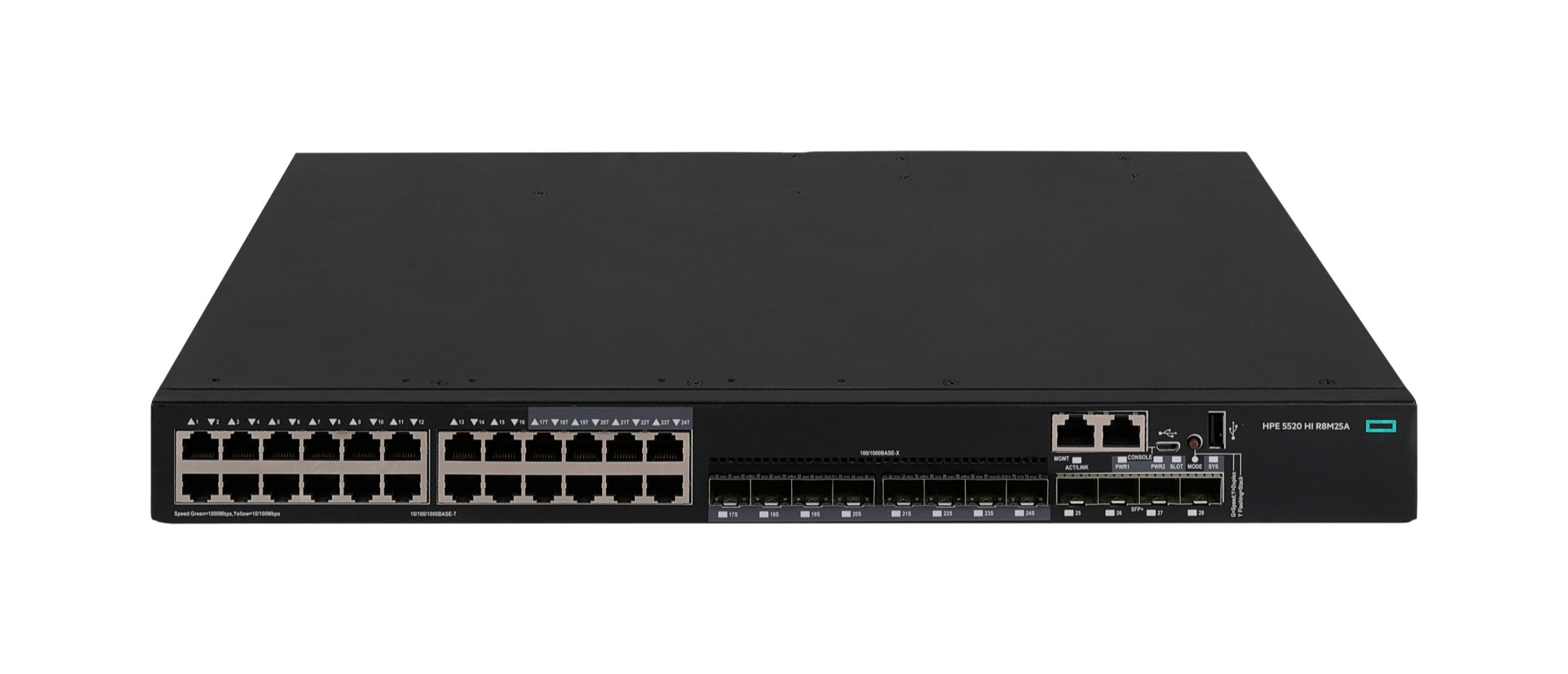

HPE R8M25A - 5520 24G 4SFP+ HI Swch
Networking Comware Switch 24p 10/100/1000BASE-T 4p SFP+ 1 Exp 2 PS Slot 5520HI
Part#:
R8M25A
Manufacturer:
HPE
Excl. VAT: £4,702.04
RRP: £7,338.00
Save: 36%
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 5520 HI delivers superior performance, high availability and manageability with advanced features at the access and aggregation layer of medium and large enterprise networks. These switches deliver faster performance and advanced L3 features with support for larger ARP/MAC tables and Longest Prefix Match (LPM). VXLAN and EVPN enable greater scalability. Support for Virtual Router Redundancy Protocol (VRRP), Equal-Cost Multipath (ECMP) and Bi-directional Forwarding Detection (BFD) provide resiliency. Intelligent Resilient framework (IRF) ensures high availability. Support for IPv4/IPv6, OpenFlow, and MPLS/VPLS features for investment protection with an easy transition from IPv4 to IPv6 networks. These switches also include SmartMC at no additional cost, and when combined with Intelligent Management Center (IMC), it provides both embedded network management and enhanced network visibility.
What is new supporting point:
Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.
Larger MAC tables (up to 64K), Longest Prefix Match (LPM), switching capacity of up to 336 Gbps and throughput of upto 180 Mpps enable faster switching.
Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) enable both isolation and greater scalability of L2/L3 overlay services and multicast.
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about 'made in China' products.
What is new supporting point:
Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.
Larger MAC tables (up to 64K), Longest Prefix Match (LPM), switching capacity of up to 336 Gbps and throughput of upto 180 Mpps enable faster switching.
Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) enable both isolation and greater scalability of L2/L3 overlay services and multicast.
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about 'made in China' products.
More Information
Part#
R8M25A
EAN
0190017526072
Specification
Management features | |
---|---|
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Switch layer | L3 |
Ports & interfaces | |
SFP module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Installed SFP modules quantity | 0 |
Installed SFP+ modules quantity | 0 |
Network | |
10G support | Yes |
Data transmission | |
Throughput | 180 Mpps |
Latency (1 Gbps) | 5 µs |
Latency (10 Gbps) | 3 µs |
Packet buffer memory | 4 MB |
Switching capacity | 288 Gbit/s |
Design | |
Stackable | Yes |
Rack mounting | Yes |
Number of fans | 2 fan(s) |
Performance | |
Physical stacking (units) | 9 |
Memory type | SDRAM |
Internal memory | 2048 MB |
Flash memory | 512 MB |
Packet buffer memory | 4 MB |
Stackable | Yes |
Harmonized System (HS) code | 85176990 |
Power | |
Power consumption (max) | 150 W |
Power supply included | Yes |
AC input voltage | 90 - 264 V |
DC input voltage | 36 - 72 V |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Heat dissipation | 324 BTU/h |
Weight & dimensions | |
Width | 440 mm |
Depth | 360 mm |
Height | 43.6 mm |
Weight | 6.7 kg |
Technical details | |
Physical stacking (units) | 9 |
Stackable | Yes |
Rack mounting | Yes |
Memory | |
Packet buffer memory | 4 MB |
Memory type | SDRAM |
Internal memory | 2048 MB |
Flash memory | 512 MB |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Manufacturer
HPE
