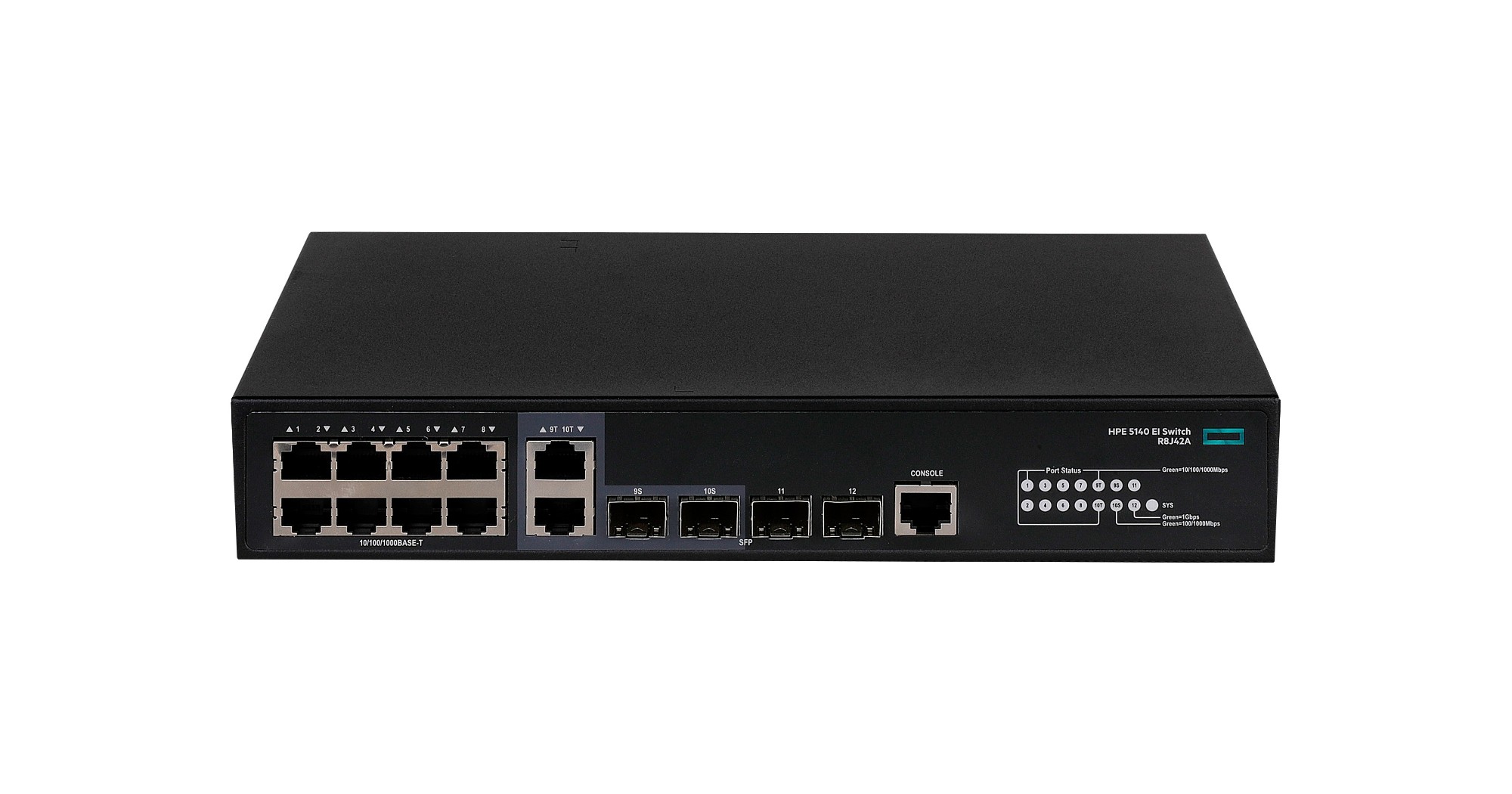

HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
Part#:
R8J42A
Manufacturer:
HPE
Excl. VAT: £896.35
RRP: £1,423.00
Save: 37%
Available to Backorder: contact for lead time
The HPE Networking Comware Switch Series 5140 EI delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, HPE Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP; convenient fixed 10 GbE uplink ports, PoE+, ACLs, and IPv6; and delivers energy savings with Energy Efficient Ethernet. The HPE Networking Comware Switch Series 5140 EI also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Aruba Networking IMC for a single view of your entire network.
What is new supporting point:
Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10 GbE uplinks, and POE+ models for voice, video, and wireless.
It supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.
It includes embedded network management capabilities with Smart Management Center (SmartMC).
It includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports.
What is new supporting point:
Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10 GbE uplinks, and POE+ models for voice, video, and wireless.
It supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.
It includes embedded network management capabilities with Smart Management Center (SmartMC).
It includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports.
More Information
Part#
R8J42A
EAN
0190017527048
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| I/O ports | 8 RJ-45 autosensing 10/100/1000 ports; Duplex: Ports 1-8 support 10BASE-T/100BASE-TX, 1000BASE-T (full only); 2 combo ports with 2 SFP or 2 1GbE ports and 2 SFP ports; 1 RJ-45 serial console port |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| IPv6 FIB entries | 256 |
| IPv4 FIB entries | 512 |
| Data transmission | |
| Throughput | 18 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| MAC address table | 16384 entries |
| Switching capacity | 24 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | HWTACACS, RADIUS |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| IPv6 FIB entries | 256 |
| IPv4 FIB entries | 512 |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 9 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption note | 15W (Maximum), 8W (Idle) Note: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
| Power source | AC |
| Power supply note | At least 1 power supply is required (not included, must be ordered separately) |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | 1000 Mb latency: < 5 µs 10 Gbps latency: < 3 µs |
| Performance management | HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager |
| Memory and processor | 512 MB SDRAM, 256 MB flash |
| Weight (imperial) | 1.5 kg (3.31 lbs) |
| I/O ports | 8 RJ-45 autosensing 10/100/1000 ports; Duplex: Ports 1-8 support 10BASE-T/100BASE-TX, 1000BASE-T (full only); 2 combo ports with 2 SFP or 2 1GbE ports and 2 SFP ports; 1 RJ-45 serial console port |
| Dimensions (W x D x H) (imperial) | 43.7 x 439.9 x 160 mm (1.72 x 17.3 x 6.3") |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 51.2 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 43.6 mm |
| Depth | 104.7 mm |
| Height | 160 mm |
| Weight | 1.5 kg |
| Weight (imperial) | 1.5 kg (3.31 lbs) |
| Dimensions (W x D x H) (imperial) | 43.7 x 439.9 x 160 mm (1.72 x 17.3 x 6.3") |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 256 |
| IPv4 FIB entries | 512 |
| Technical details | |
| Physical stacking (units) | 9 |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
