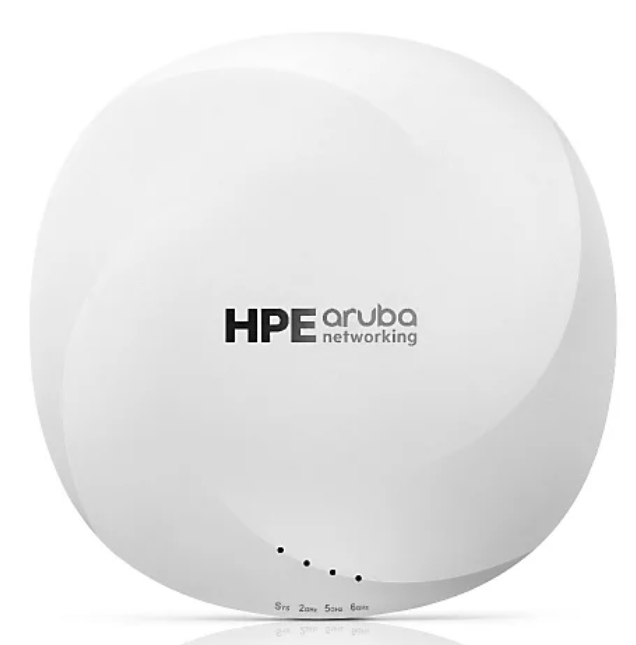

HPE R7J54A - Aruba AP-615 (RW) TAA Campus AP
HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antennas TAA Campus AP
Part#:
R7J54A
Manufacturer:
HPE
Excl. VAT: £663.14
RRP: £928.00
Save: 29%
Available to Backorder: contact for lead time
HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and Internet of Things (IoT) devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-access point deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.
What is new supporting point:
It is offered as optional eco-friendly 10-pack
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate
Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]
Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments
The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
What is new supporting point:
It is offered as optional eco-friendly 10-pack
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate
Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]
Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments
The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
More Information
Part#
R7J54A
EAN
0190017493169
Specification
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 5000 Mbit/s |
| Maximum data transfer rate | 3600 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Reset button | Yes |
| Bandwidth | 160 GHz |
| Spread spectrum method | DSSS |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 5000 Mbit/s |
| Channels quantity | 3 channels |
| Certification | UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4) |
| Maximum data transfer rate | 3600 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10 |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate |
| Channels quantity | 3 channels |
| Network | |
| Spread spectrum method | DSSS |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Bandwidth | |
| Bandwidth | 160 GHz |
| Ports & interfaces | |
| I/O ports | E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Management features | |
| VLAN support | Yes |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Bandwidth | 160 GHz |
| Spread spectrum method | DSSS |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ethernet LAN data rates | 5000 Mbit/s |
| Channels quantity | 3 channels |
| Maximum data transfer rate | 3600 Mbit/s |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| Trusted Platform Module (TPM) | Yes |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10 |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Access Control List (ACL) | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Status, System |
| Certification | UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4) |
| Recommended usage | Indoor |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.5 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Reset button | Yes |
| Weight (imperial) | 0.721 kg (1.59 lbs) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certificates | |
| Certification | UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4) |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Indication | |
| LED indicators | Status, System |
| Software | |
| Access Control List (ACL) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 201 mm |
| Depth | 183 mm |
| Weight | 720 g |
| Height | 51 mm |
| Package width | 212 mm |
| Package depth | 194 mm |
| Package height | 66 mm |
| Package weight | 800 g |
| Packaging data | |
| Package width | 212 mm |
| Package depth | 194 mm |
| Package height | 66 mm |
| Package weight | 800 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| I/O ports | E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Weight (imperial) | 0.721 kg (1.59 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Storage relative humidity (H-H) | 10 - 100% |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10 |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
