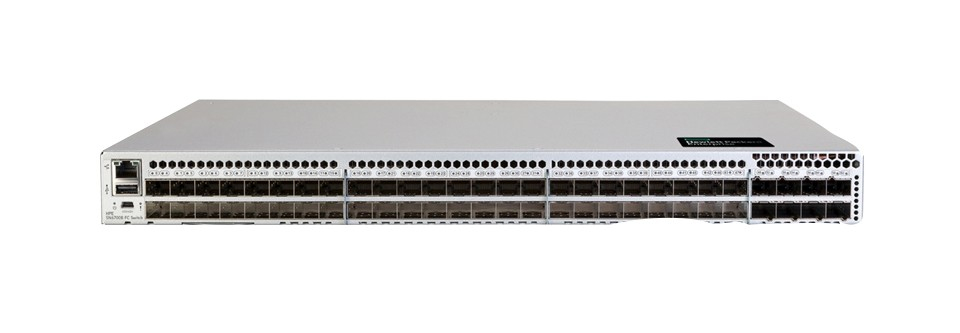

HPE SN6700B 64Gb 56/24 24-port 32Gb Short Wave SFP28 Port Side Intake Integrated FC Switch
SN6700B 64Gb 56/24 24-port 32Gb Short Wave SFP28 Port Side Intake Integrated FC Switch
Part#:
R6B06A
Manufacturer:
HPE
Excl. VAT: £52,035.00
Available to Backorder: contact for lead time
Are you struggling to meet the I/O demands of hyper-scale virtualization, large cloud infrastructures, and growing, NVMe storage environments? The HPE Storage Fibre Channel Switch B-series SN6700B is a high-performance, ultra-dense, highly scalable, and easy-to-use enterprise-class storage networking switch delivering Gen7 64Gb Fibre Channel (FC) capabilities. It is designed to support data growth, demanding workloads, and data center consolidation in small to large scale enterprise infrastructures. Delivering 64Gb performance, customized high port density, and integrated network sensors, it accelerates data access, adapts to evolving requirements, and drives 24x7 businesses. It can scale from 24 to 64 ports, all in an efficient 1U package. In addition, a simplified deployment process and a point-and-click user interface make the HPE Storage Fibre Channel Switch B-series SN6700B easy to use.
What is new supporting point:
HPE Storage B-series Gen7 64Gb FC switch technology enables organizations to realize a self-learning, self-optimizing, and self-healing autonomous SAN.
Increase scalability with a double-density (DD) Port-On-Demand (POD) Kit upgrade. Each transceiver within the kit provides 2x the bandwidth with dual SN connections.
Switch offerings as well as Port-on-Demand upgrade kits bundled with 64Gb optics.
HPE Storage B-series Gen7 64Gb FC switch technology combines analytics and advanced automation capabilities to accelerate data access, adapt to evolving requirements, and drive 24x7 operations.
What is new supporting point:
HPE Storage B-series Gen7 64Gb FC switch technology enables organizations to realize a self-learning, self-optimizing, and self-healing autonomous SAN.
Increase scalability with a double-density (DD) Port-On-Demand (POD) Kit upgrade. Each transceiver within the kit provides 2x the bandwidth with dual SN connections.
Switch offerings as well as Port-on-Demand upgrade kits bundled with 64Gb optics.
HPE Storage B-series Gen7 64Gb FC switch technology combines analytics and advanced automation capabilities to accelerate data access, adapt to evolving requirements, and drive 24x7 operations.
More Information
Part#
R6B06A
EAN
0190017455037
Specification
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 56 |
| Data transmission | |
| Switching capacity | 3584 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, IPSec, SNMP, SNMPv3, SSH, SSH-2, TLS |
| Authentication type | RADIUS, TACACS+ |
| Protocols | |
| Supported protocols | Fibre Channel |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
| Media types supported | SFP+ and DD Transceivers |
| Power | |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Weight (imperial) | 7.17 kg (15.8 lbs) |
| Upgrade type | 8-port Port-on-Demand upgrade kits are available to expand the number of active ports. The POD kits include both a license to activate the ports as well as the transceivers. |
| Technical features | Hot code load, Ports-On-Demand with no downtime |
| Port speed rating | 64Gb |
| Optional software | HPE SANnav Management Software, HPE Network Orchestrator |
| Supported protocols | Fibre Channel |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 355.6 mm |
| Height | 43.9 mm |
| Weight | 7.17 kg |
| Weight (imperial) | 7.17 kg (15.8 lbs) |
| Technical details | |
| Form factor | 1U |
| Rack mounting | Yes |
| Upgrade type | 8-port Port-on-Demand upgrade kits are available to expand the number of active ports. The POD kits include both a license to activate the ports as well as the transceivers. |
| Technical features | Hot code load, Ports-On-Demand with no downtime |
| Supported protocols | Fibre Channel |
| Port speed rating | 64Gb |
| Optional software | HPE SANnav Management Software, HPE Network Orchestrator |
| System requirements | |
| Media types supported | SFP+ and DD Transceivers |
Manufacturer
HPE
