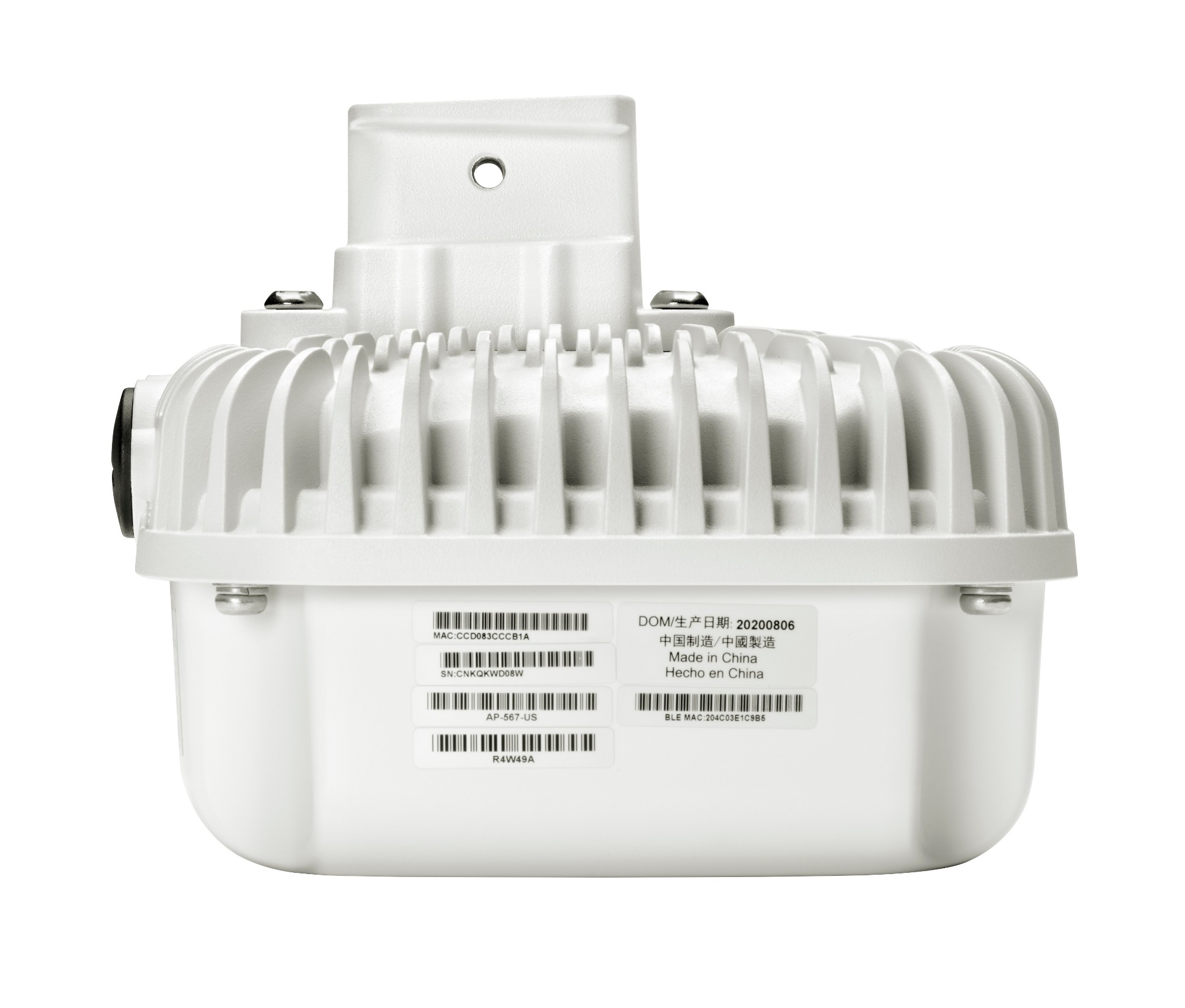

HPE R4W54A - Aruba AP-565 (US) TAA Outdoor 11ax AP
Aruba Networking AP-565 (US) 802.11ax Dual 2x2 Radio Integrated Omni Antennas TAA Outdoor AP
Part#:
R4W54A
Manufacturer:
HPE
Excl. VAT: £1,723.00
Available to Backorder: contact for lead time
The HPE Aruba Networking 560 Series Outdoor Access Points provide cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560 Series delivers the speed and reliability needed to bring medium-density Wi-Fi 6 outdoors. These Wi-Fi 6 outdoor APs are ready to survive high wind, extreme temperatures, and moisture and can be quickly deployed using Zero Touch Provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560 Series outdoor APs include a limited lifetime warranty.
What is new supporting point:
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps maximum aggregate data rate and are ideal for outdoor and warehouse environments.
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C).
Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Dynamic Segmentation and policy enforcement firewalls (PEF) that automatically enforces consistent policies across all networks, keeping users and devices secure.
What is new supporting point:
Entry-level outdoor Wi-Fi 6 (802.11ax) access points that provide up to 1.49 Gbps maximum aggregate data rate and are ideal for outdoor and warehouse environments.
Purpose-built to survive in the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C).
Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee.
Small form factor for flexible deployment.
Client and RF optimization to match clients with the best available access point and reduce coverage gaps.
Dynamic Segmentation and policy enforcement firewalls (PEF) that automatically enforces consistent policies across all networks, keeping users and devices secure.
More Information
Part#
R4W54A
EAN
0190017447650
Specification
Data transmission | |
---|---|
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Maximum data transfer rate | 1774 Mbit/s |
Performance | |
2.4 GHz | Yes |
5 GHz | Yes |
Spread spectrum method | DSSS, OFDM, OFDMA |
Networking standards | IEEE 802.15.4 |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Certification | None |
Maximum data transfer rate | 1774 Mbit/s |
MIMO type | Multi User MIMO |
MIMO | Yes |
Wireless LAN features | |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Network | |
Spread spectrum method | DSSS, OFDM, OFDMA |
Networking standards | IEEE 802.15.4 |
Features | |
2.4 GHz | Yes |
5 GHz | Yes |
Spread spectrum method | DSSS, OFDM, OFDMA |
Networking standards | IEEE 802.15.4 |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Maximum data transfer rate | 1774 Mbit/s |
Bluetooth | Yes |
Bluetooth version | 5.0 |
MDI / DMI-X automatic switchover | Yes |
MIMO type | Multi User MIMO |
MIMO | Yes |
Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
Security | |
Security algorithms | WPA2, WPA3 |
Ports & interfaces | |
USB connector type | USB Type-C |
USB 2.0 ports quantity | 0 |
Ethernet LAN (RJ-45) ports | 1 |
Power | |
Power consumption (max) | 15.6 W |
Power over Ethernet (PoE) | Yes |
Design | |
Placement | Pole, Wall |
Product colour | White |
Certification | None |
Antenna | |
Antenna type | Internal |
Antenna gain level (max) | 5.4 dBi |
Antenna direction type | Omni-directional |
Antenna features | Integrated antenna |
Technical details | |
Compliance certificates | Low Voltage Directive (LVD) |
Certificates | |
Certification | None |
Compliance certificates | Low Voltage Directive (LVD) |
Software | |
MDI / DMI-X automatic switchover | Yes |
Weight & dimensions | |
Width | 165 mm |
Depth | 165 mm |
Weight | 1.03 kg |
Height | 110 mm |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -40 - 55 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating altitude | 0 - 3000 m |
