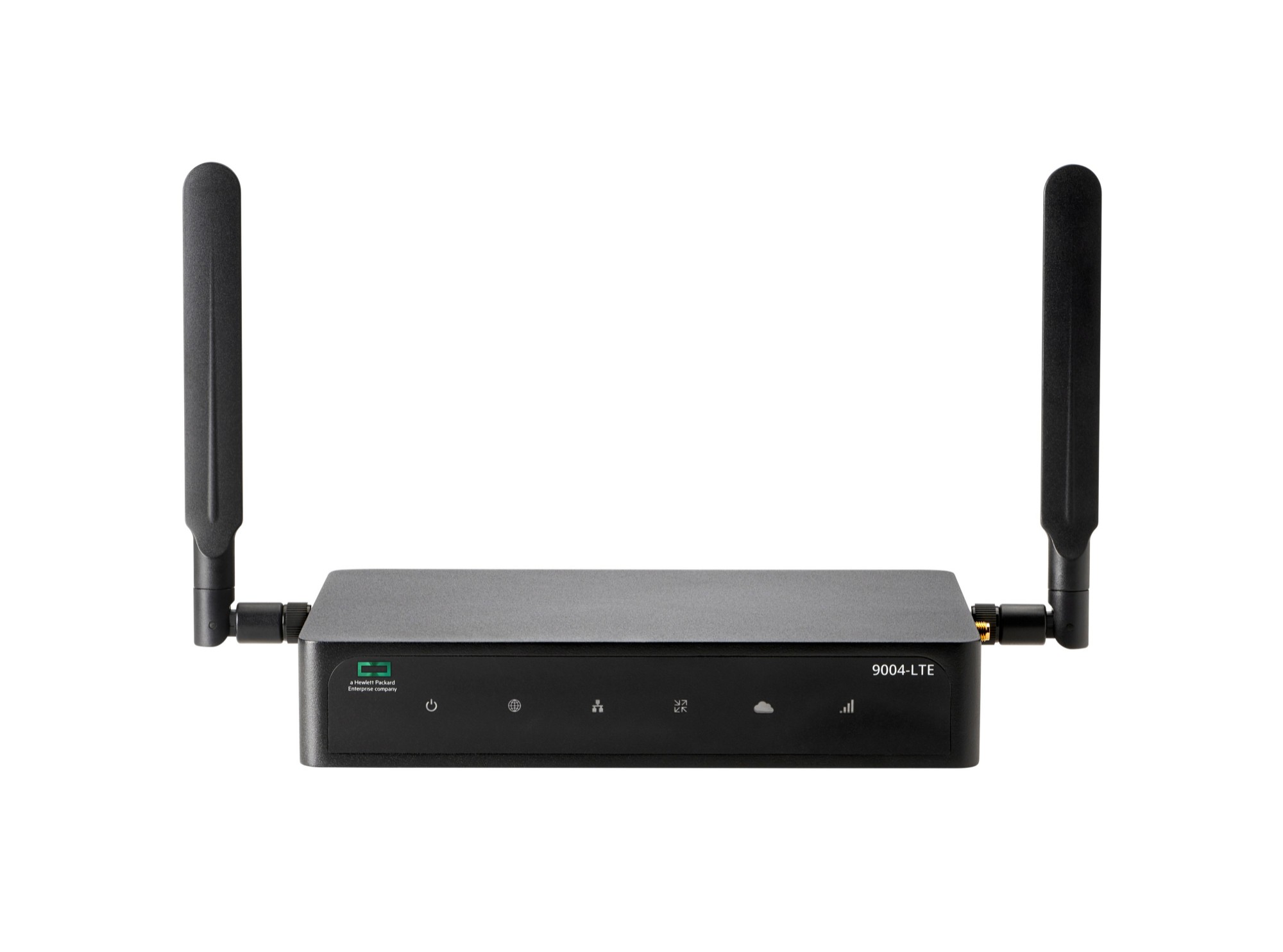

HPE R3V92A - Aruba 9004 (EG) TAA LTE Branch GW
Aruba Networking 9004 (EG) 4-Port 10/100/1000BASE-T 2K Clients with LTE TAA Branch Gateway
Part#:
R3V92A
Manufacturer:
HPE
Excl. VAT: £1,889.00
Available to Backorder: contact for lead time
HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.
What is new supporting point:
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
What is new supporting point:
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
More Information
Part#
R3V92A
EAN
0190017407135
Specification
Design | |
---|---|
LED indicators | LAN, Status, System, WAN |
Certification | None |
Mounting type | Desktop/Rack mounting |
Product colour | Black |
Features | |
Antenna type | External |
Antenna connector type | SMA |
Antennas quantity | 2 |
GPS (satellite) | Yes |
Performance | |
Control display unit | No |
Certification | None |
Mounting type | Desktop/Rack mounting |
Product colour | Black |
Protocols | |
DHCP client | Yes |
Network | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Mobile network generation | 4G |
Number of concurrent sessions (max) | 2048 |
Firewall throughput | 4000 Mbit/s |
3DES/AES throughput | 4 Gbit/s |
4G LTE category | 12 |
Data network | LTE |
Downlink/uplink speed | 600/150 Mbit/s |
Security | |
VLAN support | Yes |
Access Control List (ACL) | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Console port | micro USB, RJ-45 |
Number of console ports | 2 |
Power | |
Output voltage | 12 V |
Output current | 2.5 A |
Input voltage | 12v DC, 2.5A AC-to-DC power adapter |
Input frequency | 47 - 63 Hz |
DC input voltage | 12 V |
Power consumption (max) | 25 W |
Weight & dimensions | |
Weight | 1.14 kg |
Width | 43.7 mm |
Height | 38.2 mm |
Depth | 395 mm |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 10 - 95% |
Technical details | |
Antenna type | External |
Antenna connector type | SMA |
GPS (satellite) | Yes |
Indication | |
LED indicators | LAN, Status, System, WAN |
Display | |
Control display unit | No |
Certificates | |
Certification | None |
Antenna | |
Antenna type | External |
Antenna connector type | SMA |
Antennas quantity | 2 |
Manufacturer
HPE
